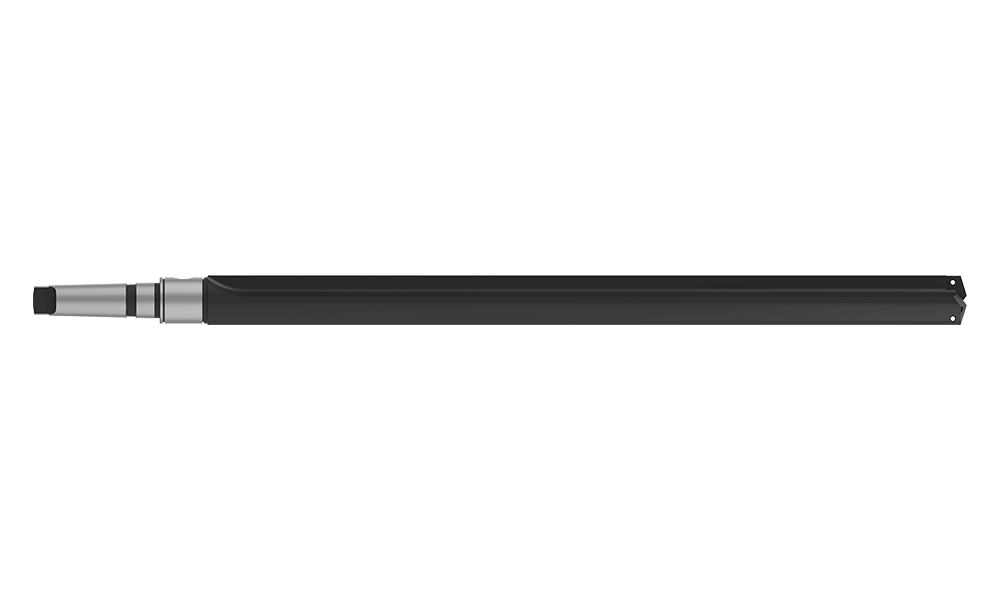

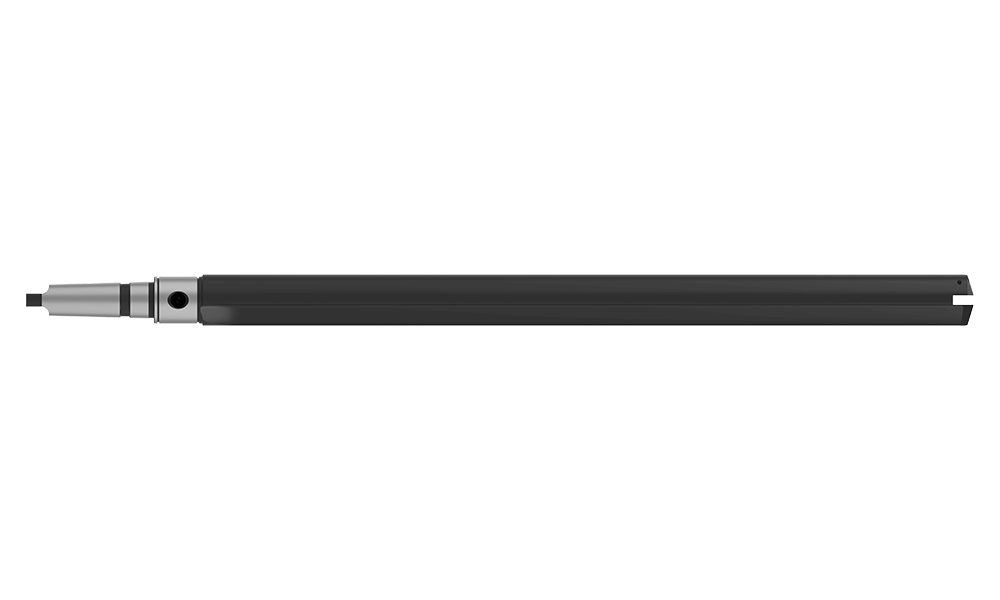

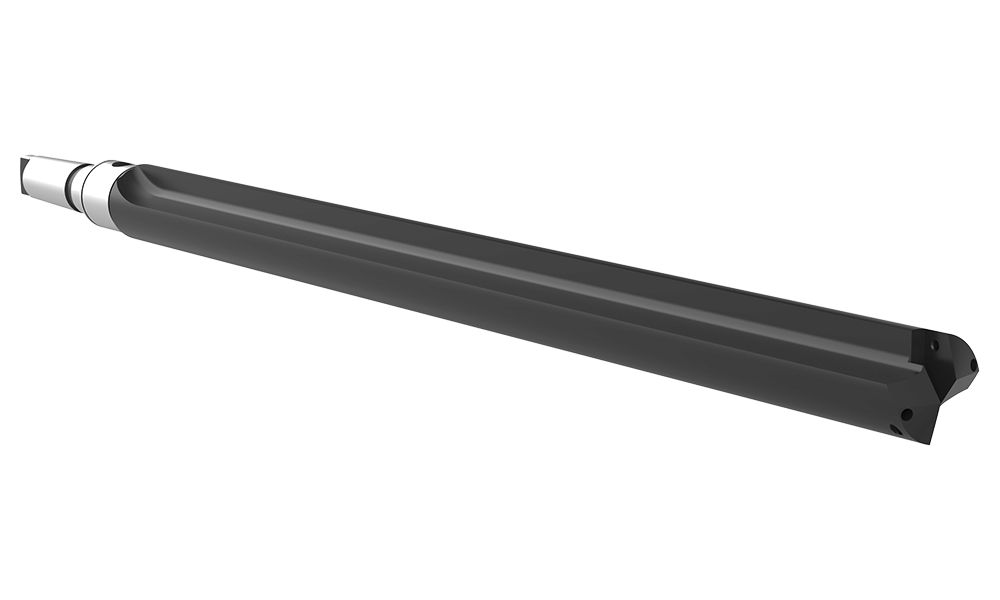

29050S-005M
#5 METRIC TA EXT 3XL HLDR 5MT
T-A® Holder





See Additional Technical Information

Product Specifications
Series5
Minimum diameter mm62.38
Maximum diameter mm89.09
Length Type3XL
Flute TypeStraight
Overall length mm1147.75
Tool Reference Length mm1004.87
Body length mm933.45
Drill depth mm881.05
Shank typeMorse Taper
Shank diameter mm#5 MT ISO
Pipe tap side inch1/2
Pipe tap side mm1/2 BSPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)40.56
CategoryStocked
