| Series | 5 |
| Minimum diameter inch | 2.4560 |
| Maximum diameter inch | 3.5079 |
| Length Type | 3XL |
| Flute Type | Straight |
| Overall length inch | 40.750 |
| Tool Reference Length inch | 37.000 |
| Body length inch | 36.750 |
| Drill depth inch | 34.603 |
| Shank type | Lathe |
| Shank diameter inch | 2 |
| Shank length inch | 4.000 |
| Pipe tap rear inch | 1/2 NPT |
| Pipe tap side inch | 1/2 NPT |
| Deep Hole Guidelines | Yes |

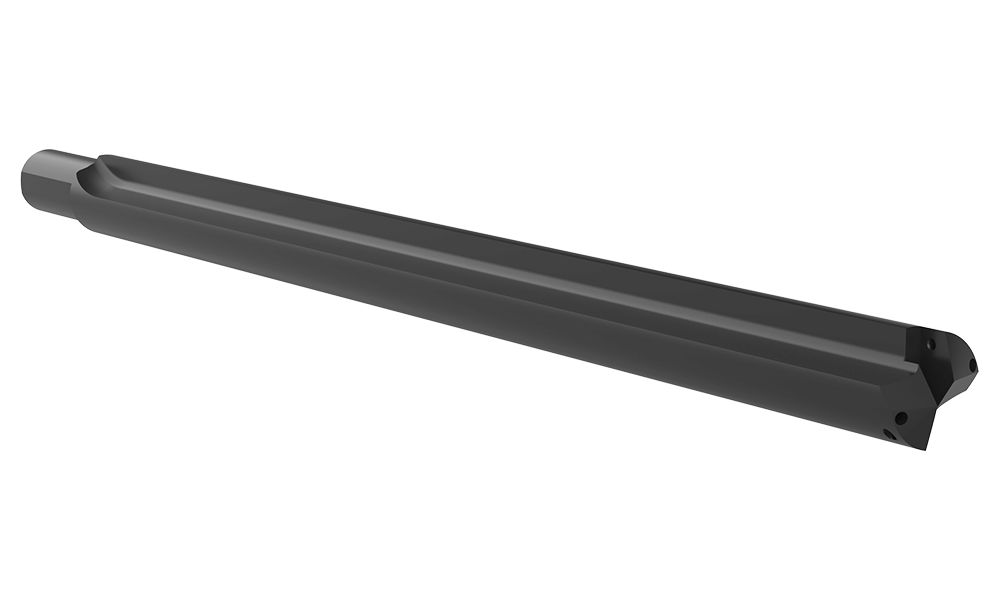

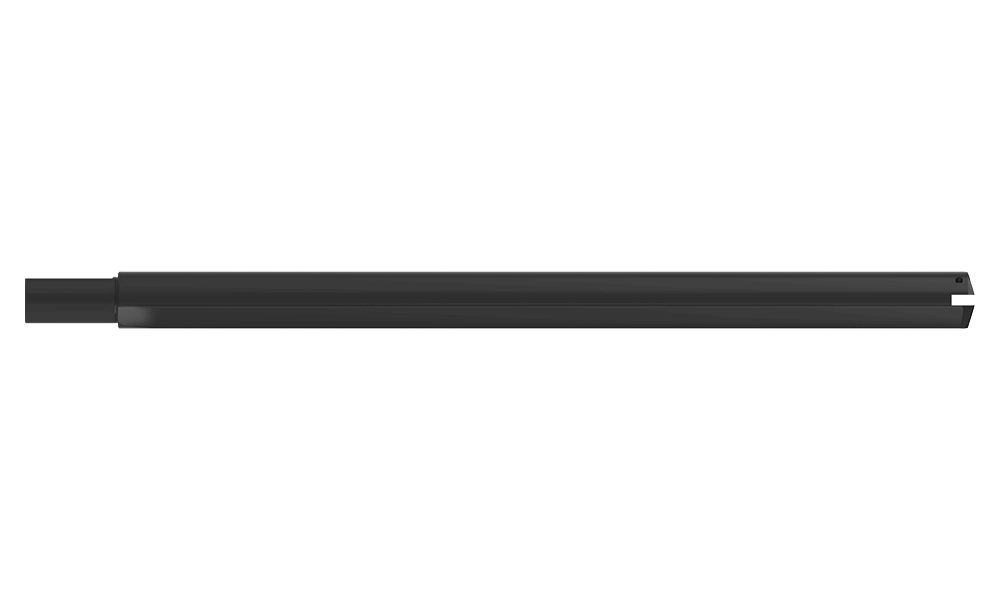

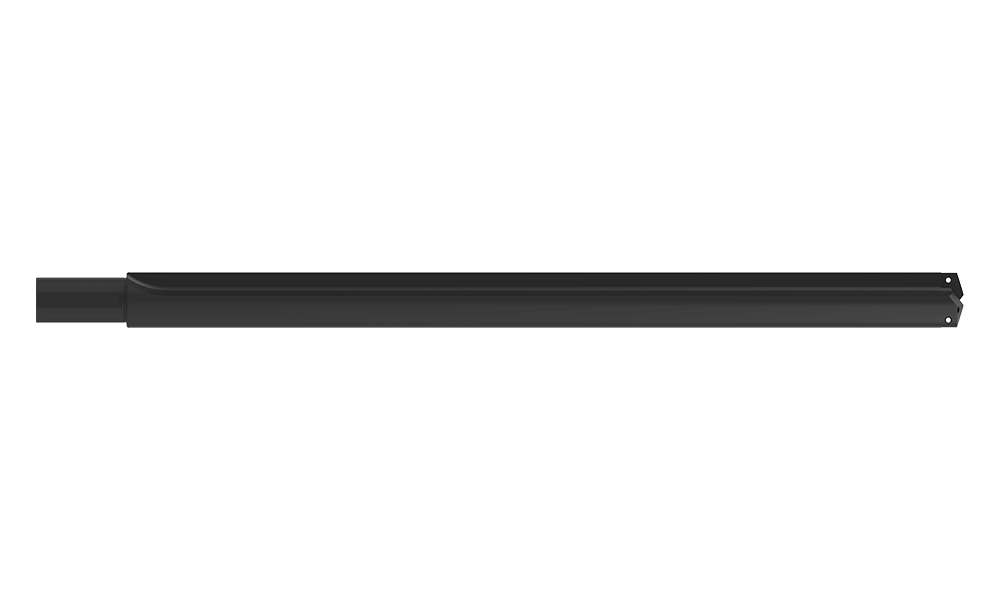

| Type of Product | Replaceable Drill Body |
| Product Application | General Purpose |
