| Series | 7 |
| Minimum diameter inch | 3.5080 |
| Maximum diameter inch | 4.5070 |
| Length Type | 3XL |
| Flute Type | Straight |
| Overall length inch | 47.562 |
| Tool Reference Length inch | 41.937 |
| Body length inch | 39.125 |
| Drill depth inch | 37.229 |
| Shank type | Morse Taper |
| Shank diameter inch | #5 MT |
| Pipe tap side inch | 1/2 NPT |
| Deep Hole Guidelines | Yes |

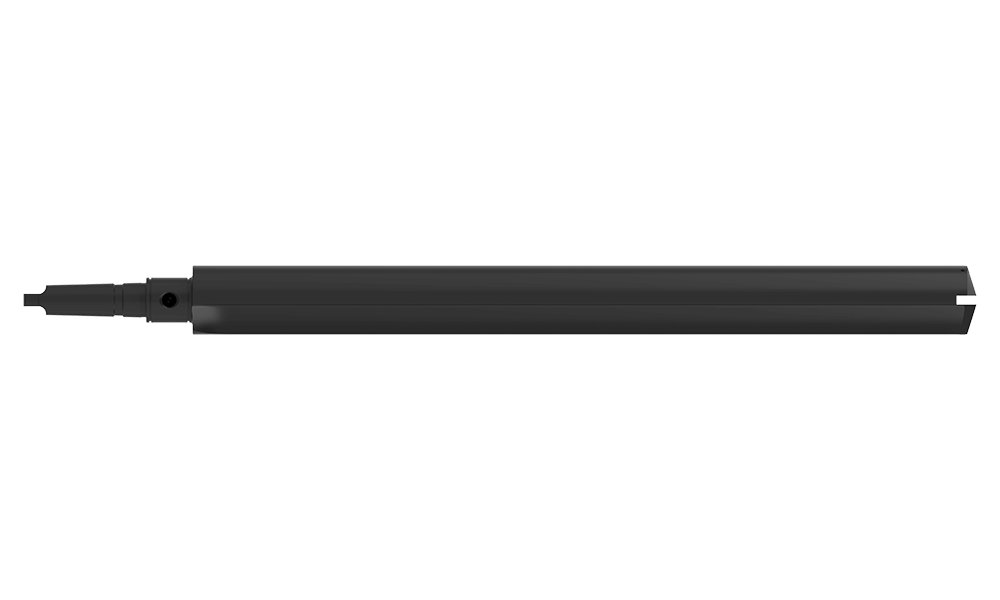

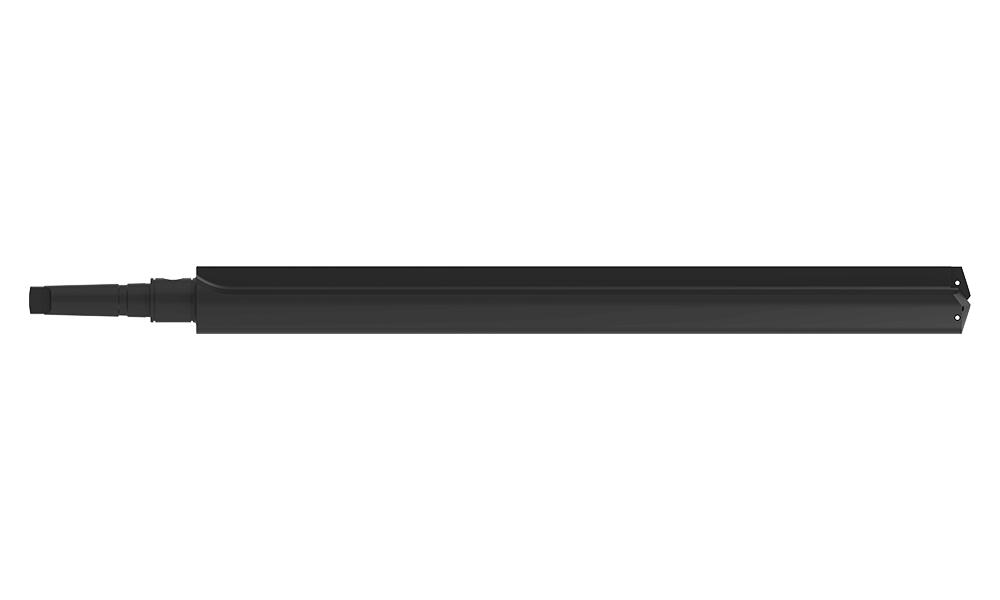

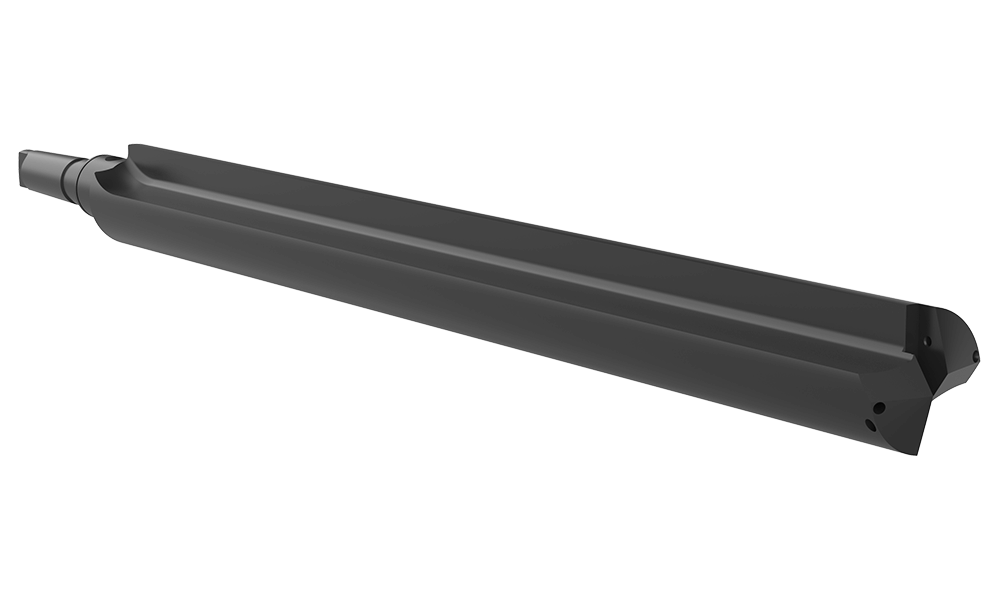

| Type of Product | Replaceable Drill Body |
| Product Application | General Purpose |
