| Series | Y |
| Minimum diameter inch | 0.3740 |
| Maximum diameter inch | 0.4369 |
| Length Type | 3XL |
| Flute Type | Straight |
| Overall length inch | 14.593 |
| Tool Reference Length inch | 12.308 |
| Body length inch | 12.218 |
| Drill depth inch | 11.267 |
| Shank type | Lathe |
| Shank diameter inch | 3/4 |
| Shank length inch | 2.375 |
| Pipe tap rear inch | 1/8 NPT |
| Deep Hole Guidelines | Yes |

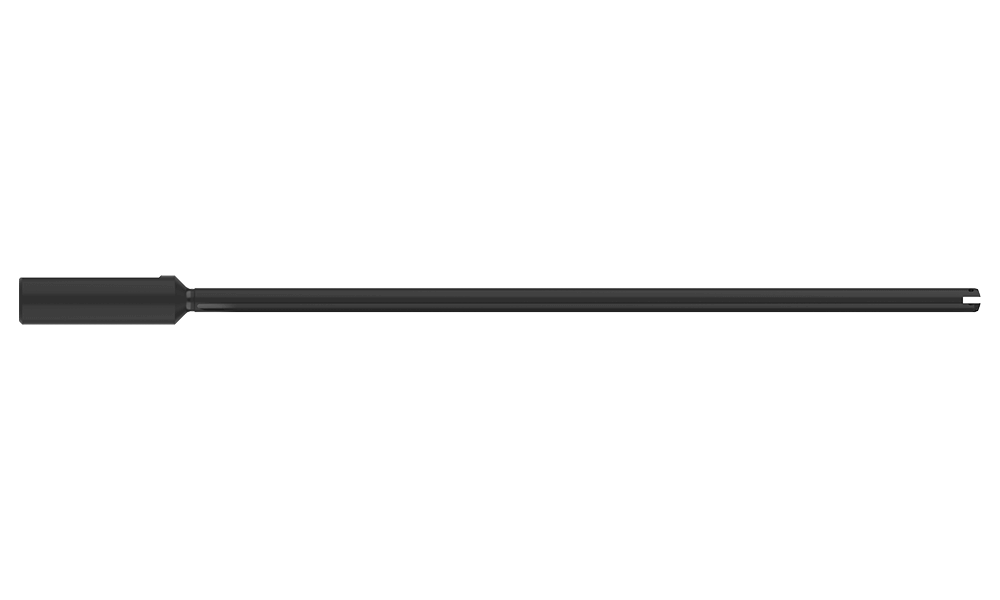

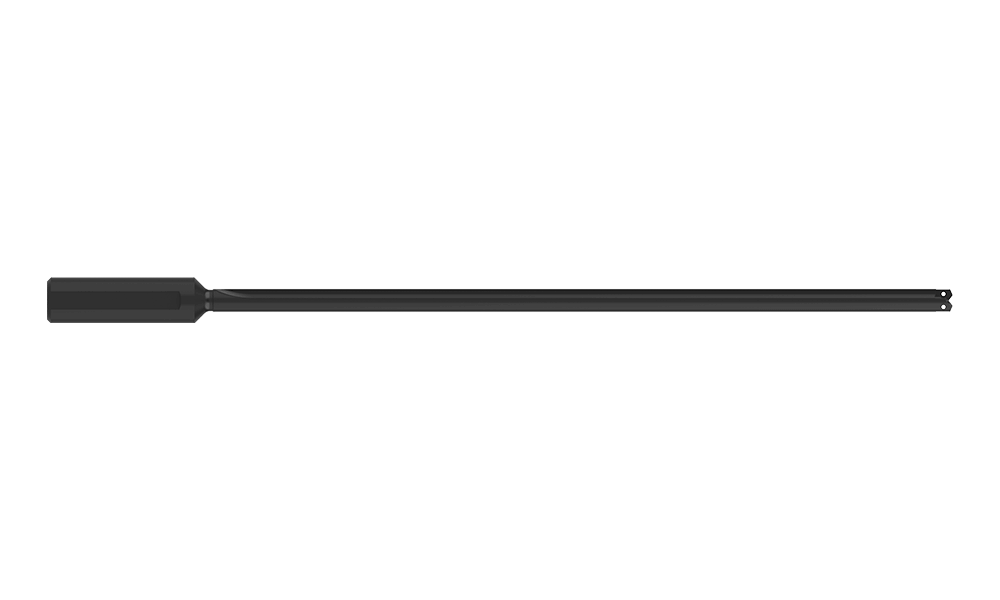

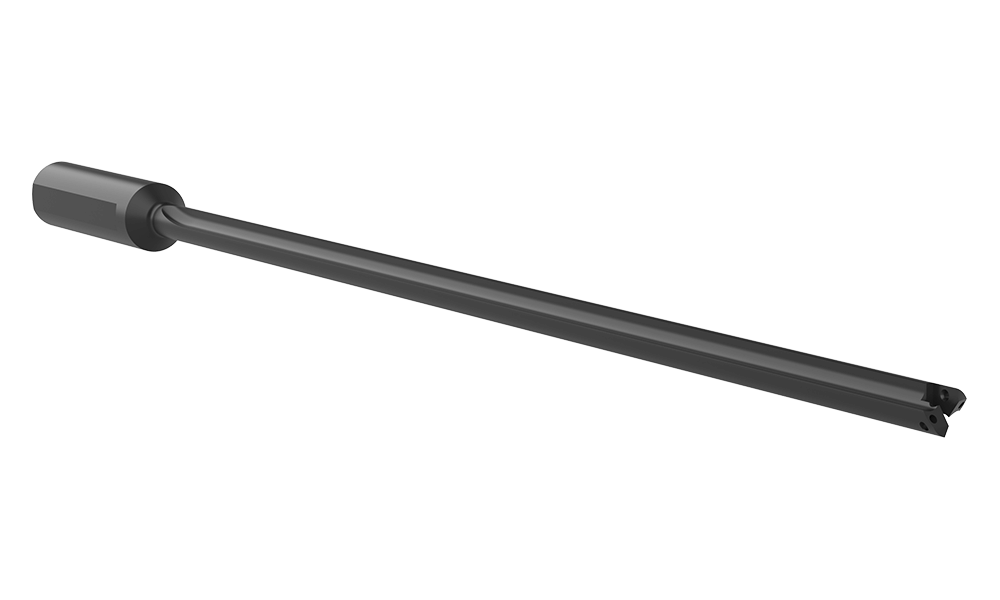

| Type of Product | Replaceable Drill Body |
| Product Application | General Purpose |
