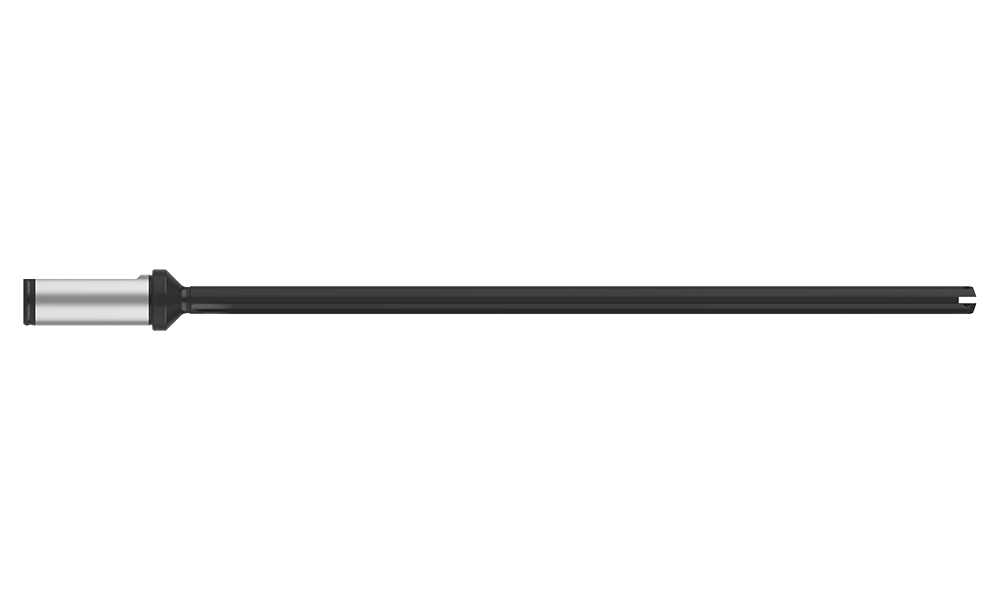

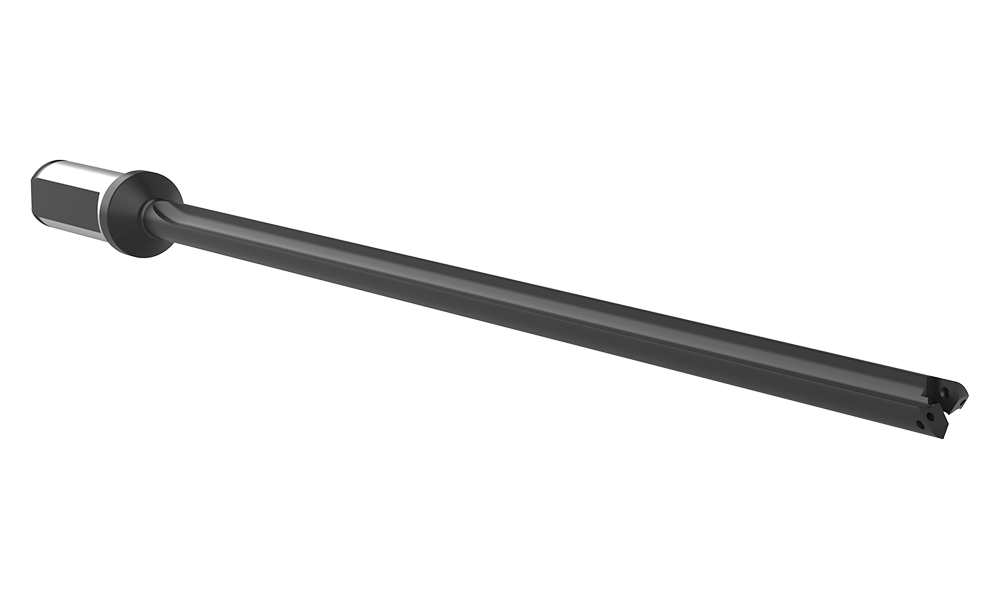

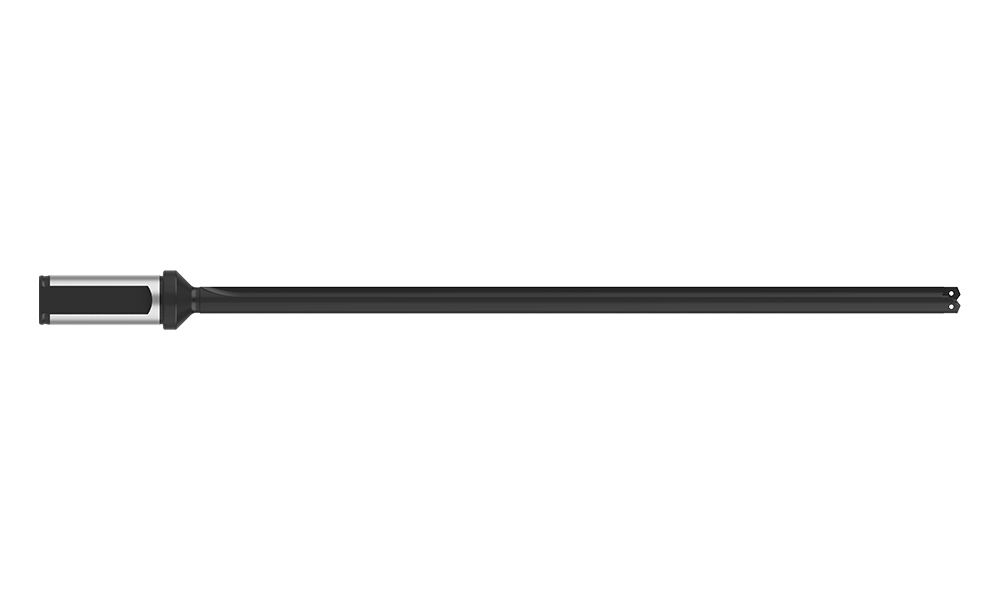

290Z0S-20FM
#Z TA EXT 3XL HLDR METR ST SHK
T-A® Holder





See Additional Technical Information

Product Specifications
SeriesZ
Minimum diameter mm11.10
Maximum diameter mm12.97
Length Type3XL
Flute TypeStraight
Overall length mm369.87
Tool Reference Length mm322.15
Body length mm319.86
Drill depth mm287.88
Shank typeFlanged
Shank diameter mm20
Shank length mm50.0
Pipe tap rear inch1/8
Pipe tap rear mm1/8 BSPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.66
CategoryStocked
