60111C45-16FM
11MM DR/CH GEN3 HLD 16MM FLG

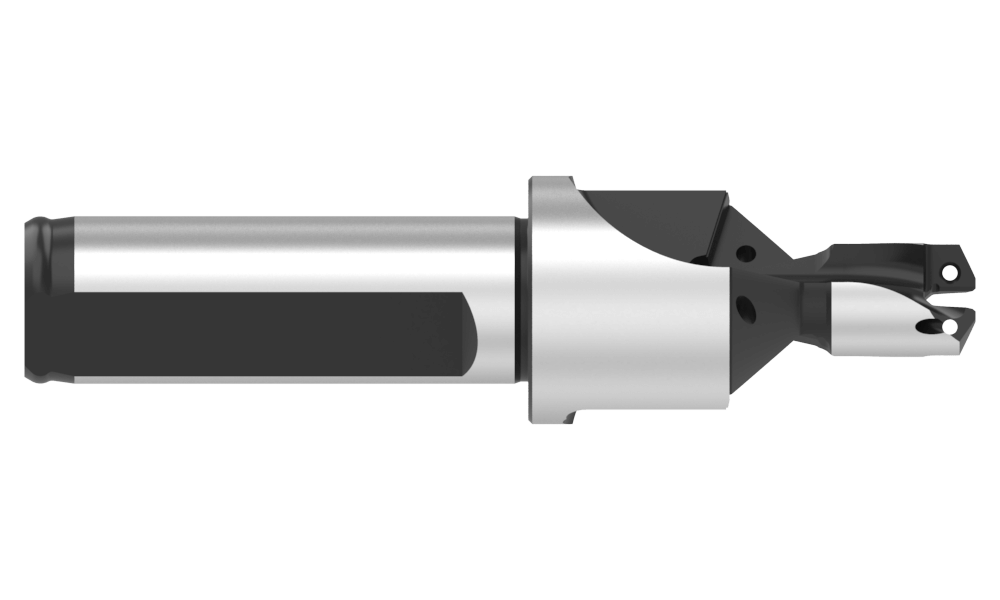

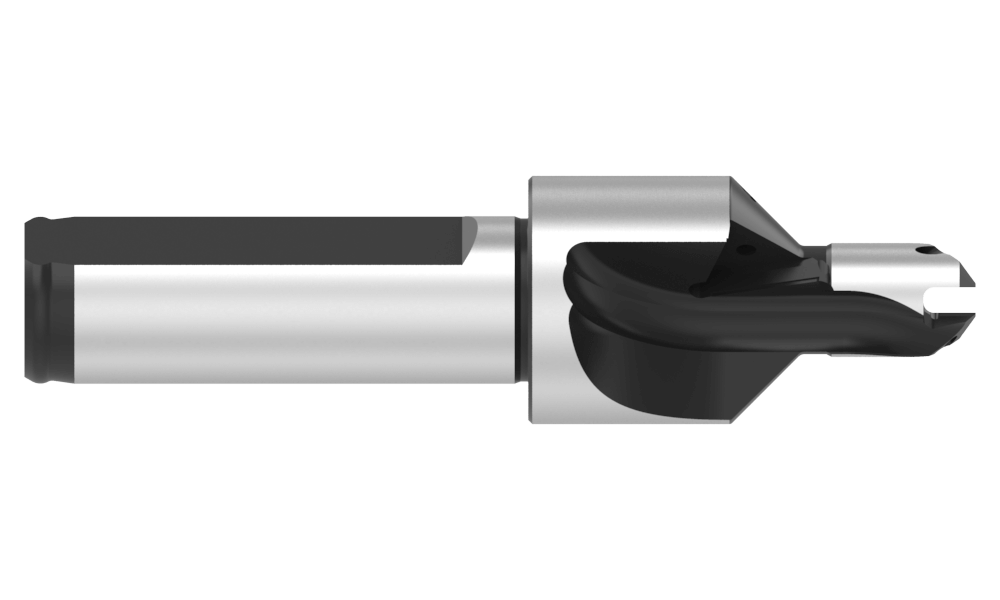

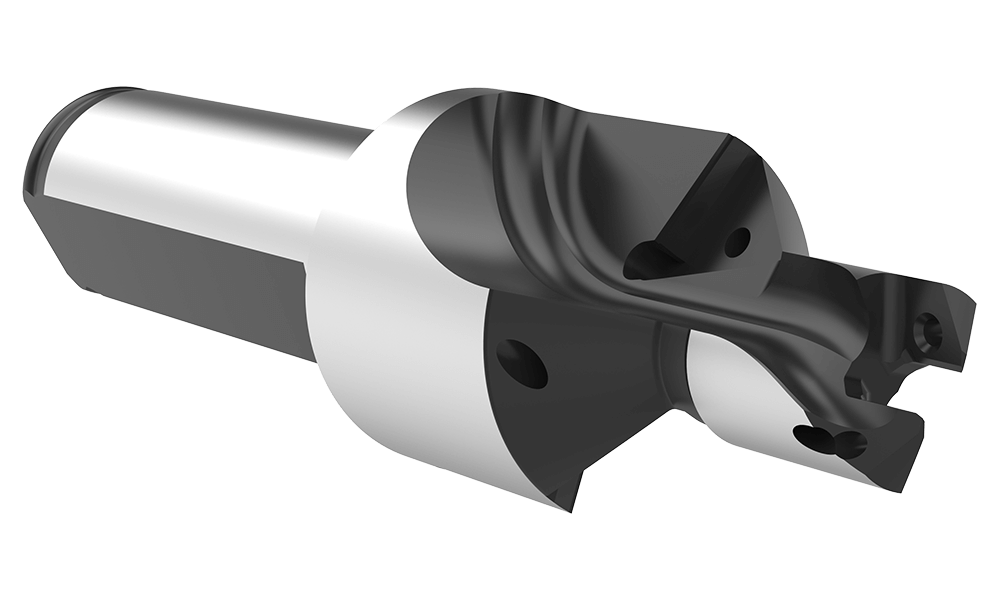

GEN3SYS® Holder






Product Specifications
Type of ProductReplaceable Drill Body
Series11
Minimum diameter inch0.4331
Minimum diameter mm11
Maximum diameter inch0.4723
Maximum diameter mm11.99
Drill depth mm23.8
Body length mm42.3
Overall length mm96.4
Shank diameter mm16
Shank length mm48
Shank typeFlanged
Tool Reference Length mm44.3
Flute TypeStraight
Length Type1xD
FlatYes
Coolant Inlet Style RearTSC
Step Diameter mm24.1
Step Length mm16.5
Deep Hole GuidelinesNo
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.28
CategoryStocked
