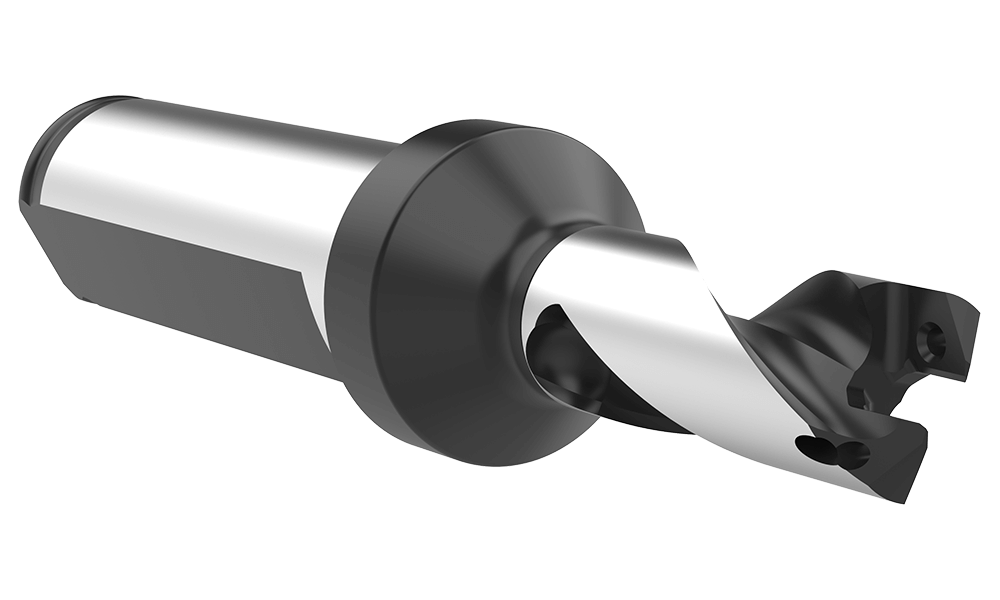

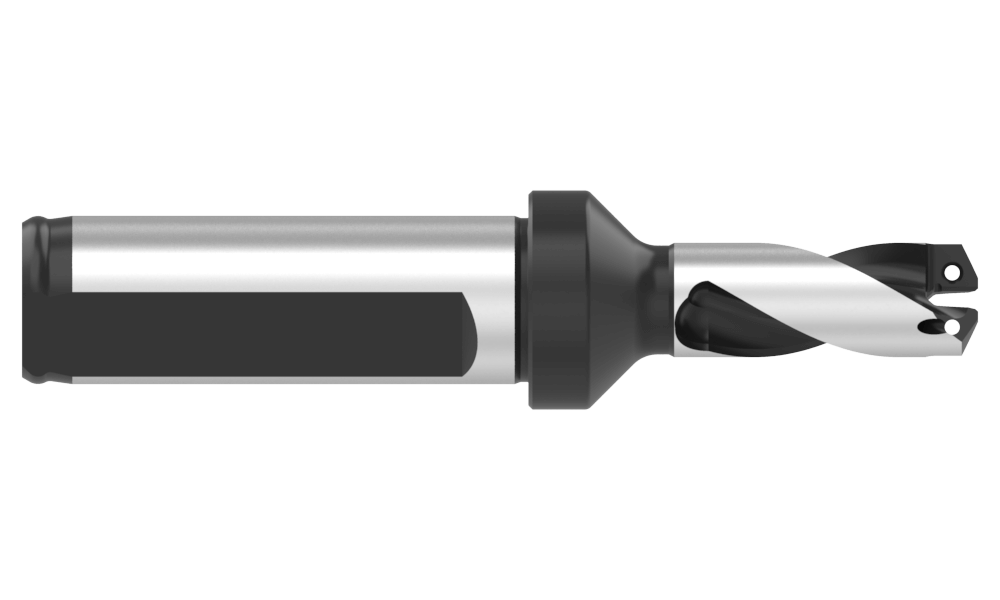

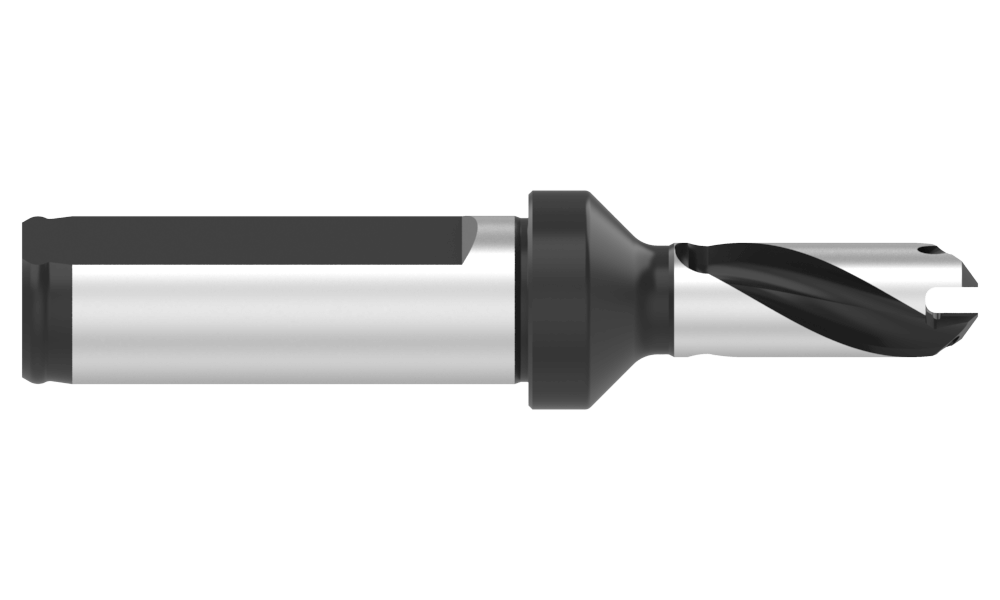

60111H-16FM
11MM STUB GEN3SYS HLD 16MM FLG
GEN3SYS® Holder






Product Specifications
Type of ProductReplaceable Drill Body
Series11
Minimum diameter inch0.4331
Minimum diameter mm11
Maximum diameter inch0.4723
Maximum diameter mm11.99
Drill depth mm16
Body length mm42.6
Overall length mm90.7
Shank diameter mm16
Shank length mm48
Shank typeFlanged
Tool Reference Length mm44.7
Flute TypeHelical
Length Type1xD
FlatYes
Coolant Inlet Style RearTSC
Pipe tap rear mm1/16 (BSP)
Deep Hole GuidelinesNo
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.24
CategoryStocked
