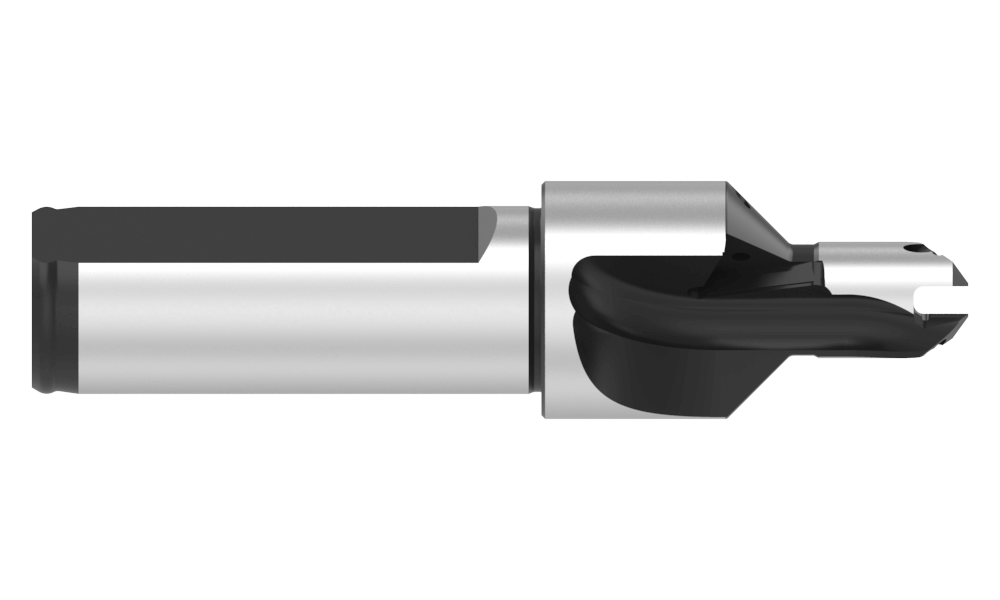

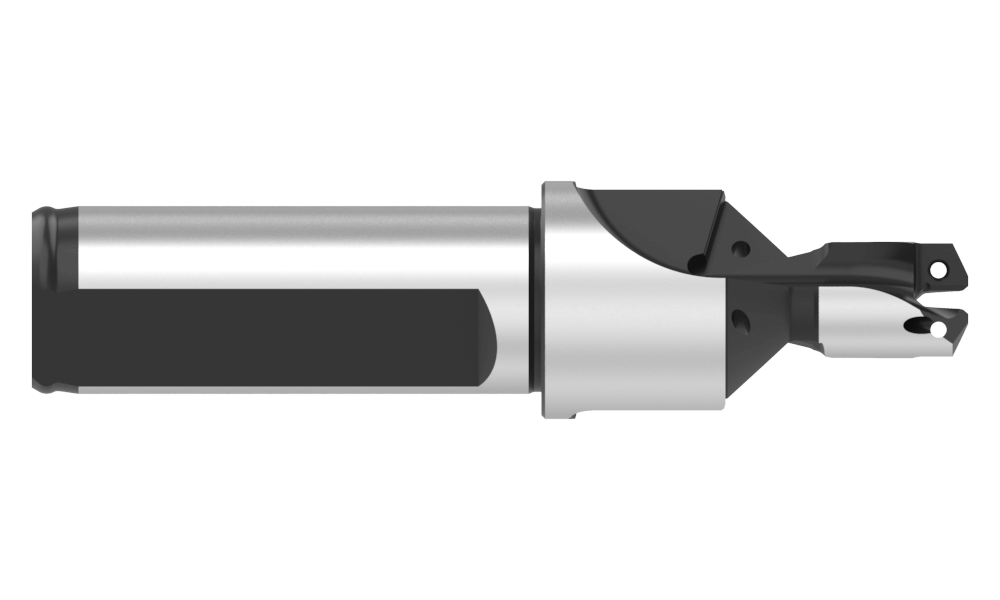

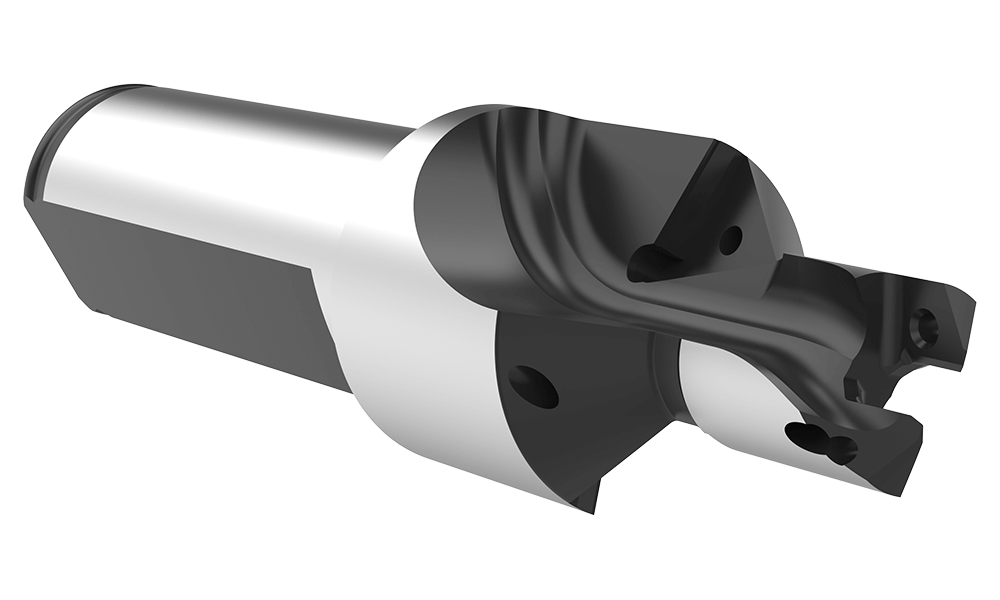

60112C45-20FM
12MM DR/CH GEN3 HLD 20MM FLG
GEN3SYS® Holder






Product Specifications
Type of ProductReplaceable Drill Body
Series12
Minimum diameter inch0.4724
Minimum diameter mm12
Maximum diameter inch0.5117
Maximum diameter mm12.99
Drill depth mm35.2
Body length mm43.2
Overall length mm101.3
Shank diameter mm20
Shank length mm50
Shank typeFlanged
Tool Reference Length mm45.4
Flute TypeStraight
Length Type1xD
FlatYes
Coolant Inlet Style RearTSC
Step Diameter mm24.8
Step Length mm18
Deep Hole GuidelinesNo
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.39
CategoryStocked
