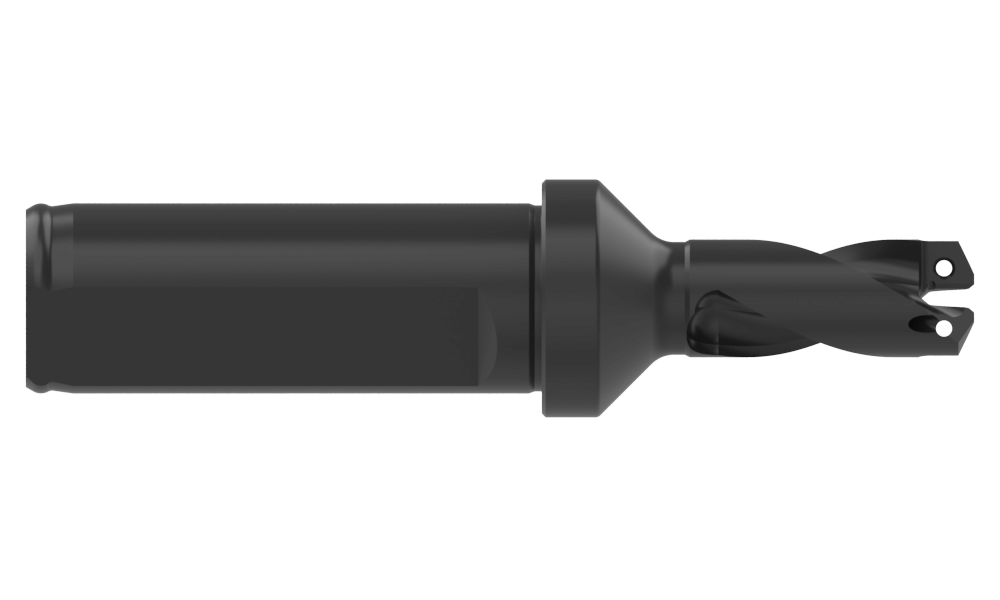

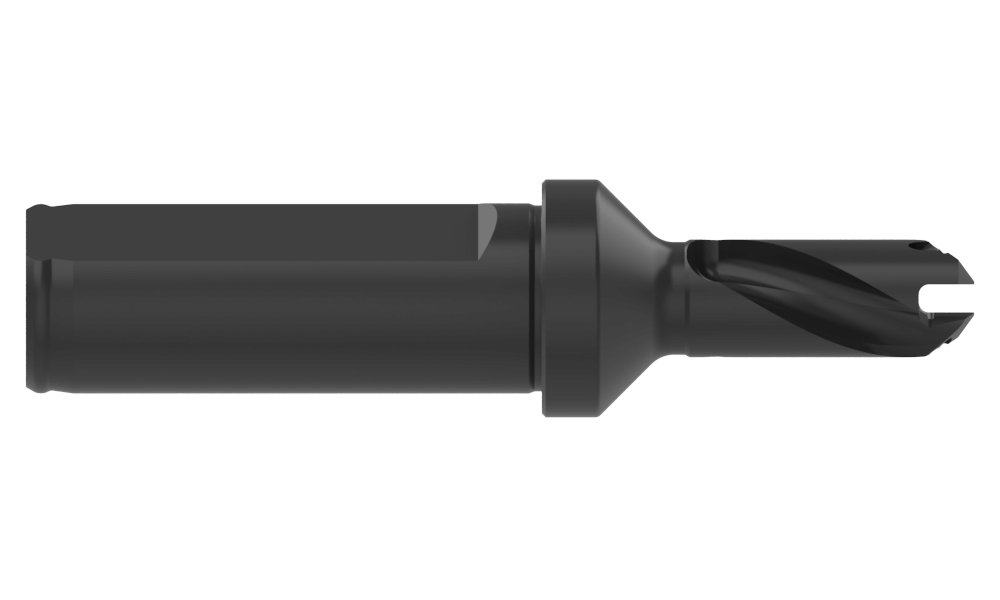

| Type of Product | Replaceable Drill Body |
| Series | 12 |
| Minimum diameter inch | 0.4724 |
| Minimum diameter mm | 12 |
| Maximum diameter inch | 0.5117 |
| Maximum diameter mm | 12.99 |
| Drill depth inch | 5/8 |
| Body length inch | 1-45/64 |
| Overall length inch | 3-47/64 |
| Shank diameter inch | 3/4 |
| Shank type | Flanged |
| Flute Type | Helical |
| Length Type | 1xD |
| Flat | Yes |
| Coolant Inlet Style Rear | TSC |
| Pipe tap rear inch | 1/8 (NPT) |
| Shank length inch | 2-1/32 |
| Tool Reference Length inch | 1-25/32 |
| Deep Hole Guidelines | No |
