60114C45-075F
GEN3SYS® Replaceable Drill Body: 0.5510" - 0.5903", Drill & Chamfer, Flanged Shank
GEN3SYS® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

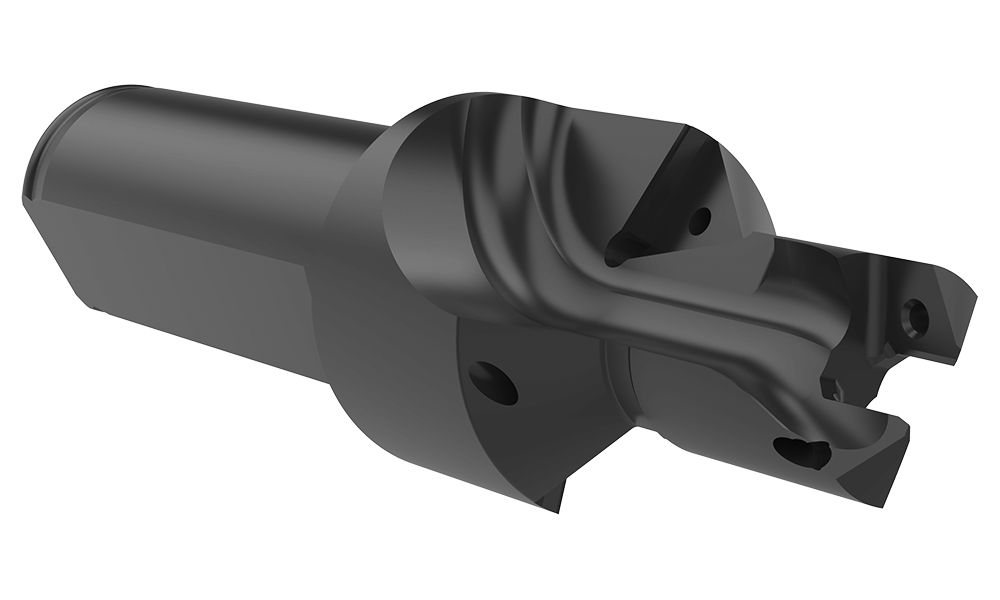

Angle

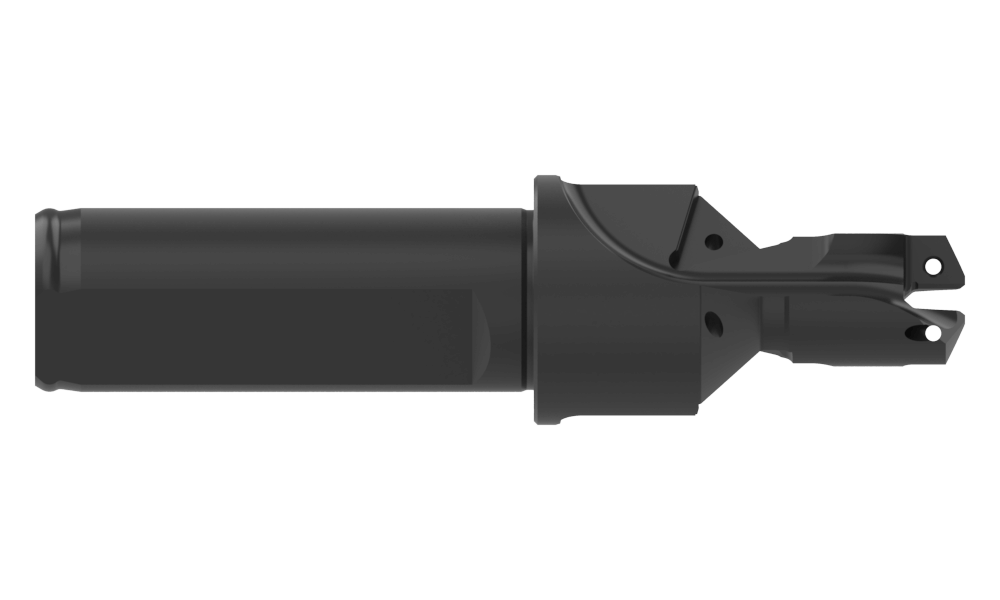

Front

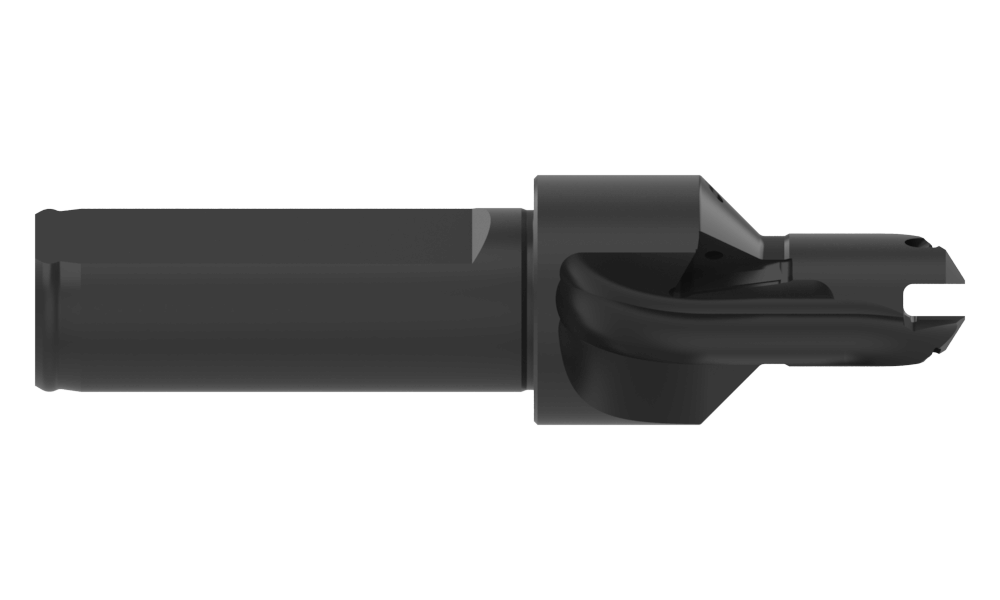

Top
Product Specifications
Series 14
Minimum Diameter (inch) 0.5510
Maximum Diameter (inch) 0.5903
Step Diameter (inch) 1.0500
Length Type Drill & Chamfer
Flute Type Straight
Overall Length (inch) 3.887
Tool Reference Length (inch) 1.857
Body Length (inch) 1.756
Step Length (inch) 0.827
Drill Depth (inch) 0.672
Shank Type Flanged
Shank Diameter (inch) 3/4
Shank Length (inch) 2.030
Pipe Tap Rear (inch) 1/8 NPT
Deep Hole Guidelines (Yes/No) No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7247-IP7-1 (Qty0)
Replacement GEN3SYS® Screw
Z KIT (1) TORX PLUS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-7 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-7
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.39
Weight in kg (each) 0.18
Category Stocked
