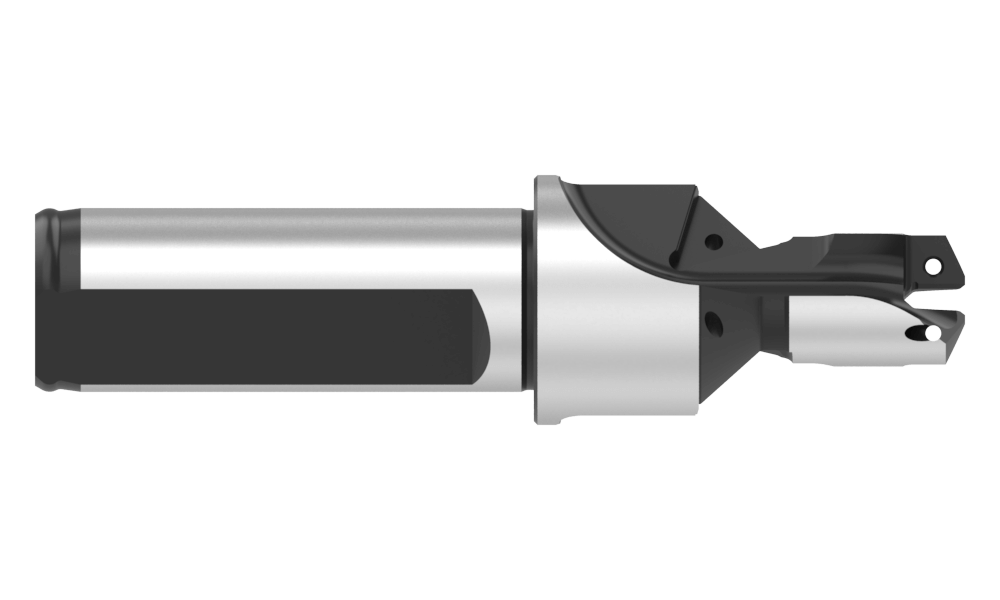

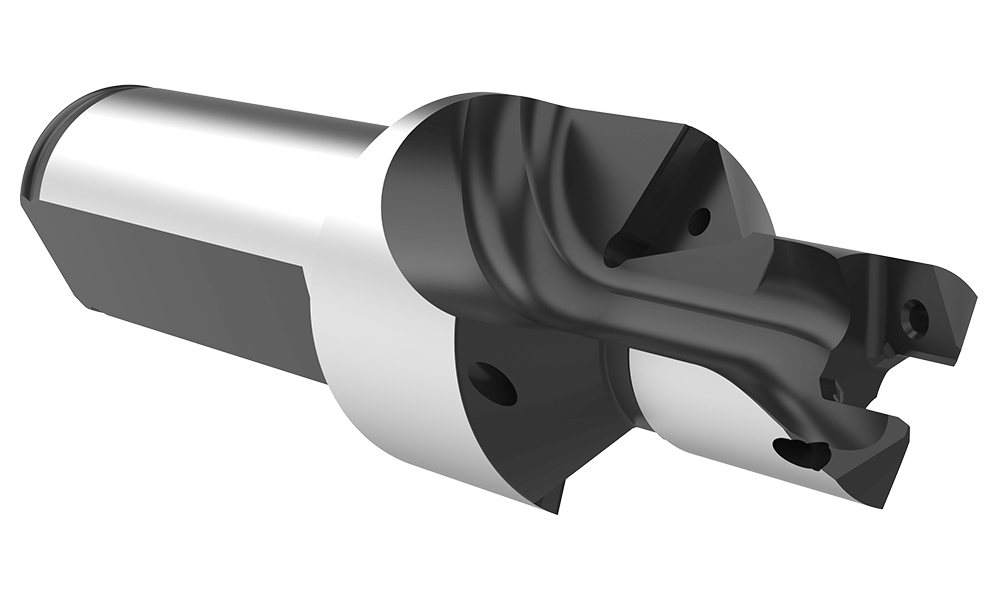

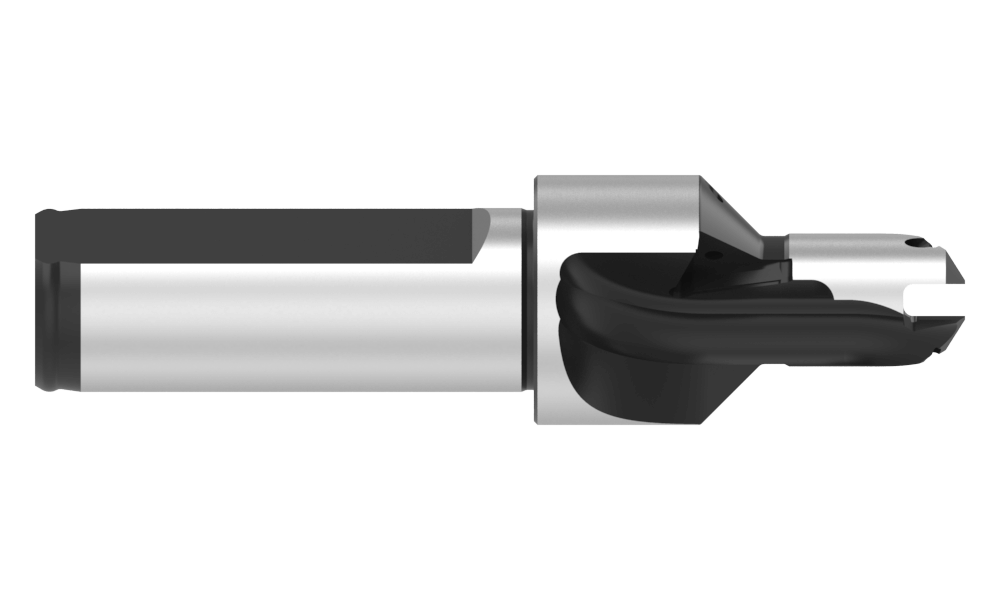

60114C45-20FM
14MM DR/CH GEN3 HLD 20MM FLG
GEN3SYS® Holder






Product Specifications
Type of ProductReplaceable Drill Body
Series14
Minimum diameter inch0.5512
Minimum diameter mm14
Maximum diameter inch0.5905
Maximum diameter mm14.99
Drill depth mm26.8
Body length mm44.6
Overall length mm102.7
Shank diameter mm20
Shank length mm50
Shank typeFlanged
Tool Reference Length mm47.2
Flute TypeStraight
Length Type1xD
FlatYes
Coolant Inlet Style RearTSC
Step Diameter mm26.7
Step Length mm21
Deep Hole GuidelinesNo


Related Items
7247-IP7-1     (Qty: 0)
Replacement GEN3SYS® Screw
Z KIT (1) TORX PLUS,CLASS 4H
8IP-7     (Qty: 0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-7
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.41
CategoryStocked
