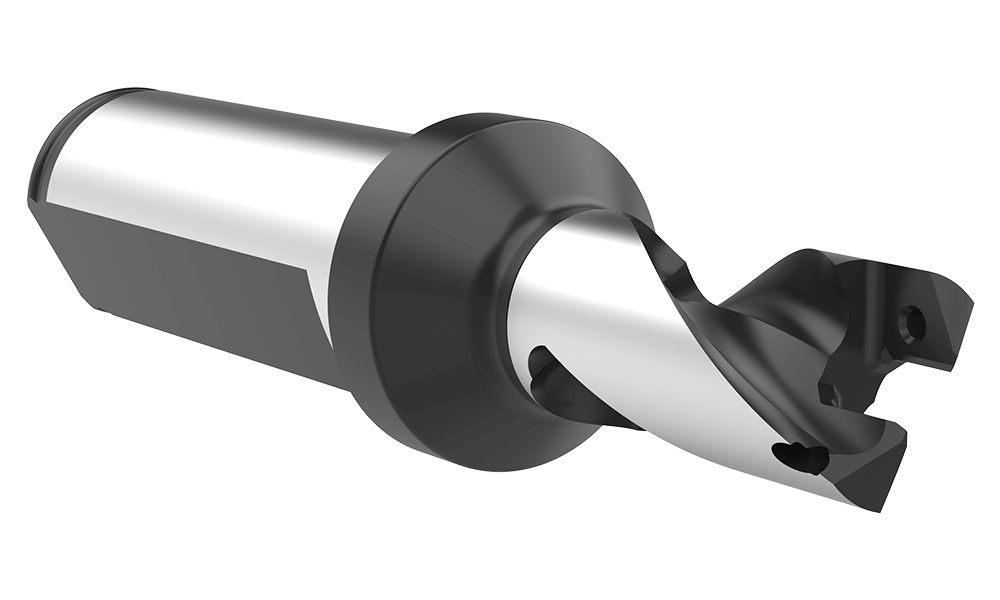

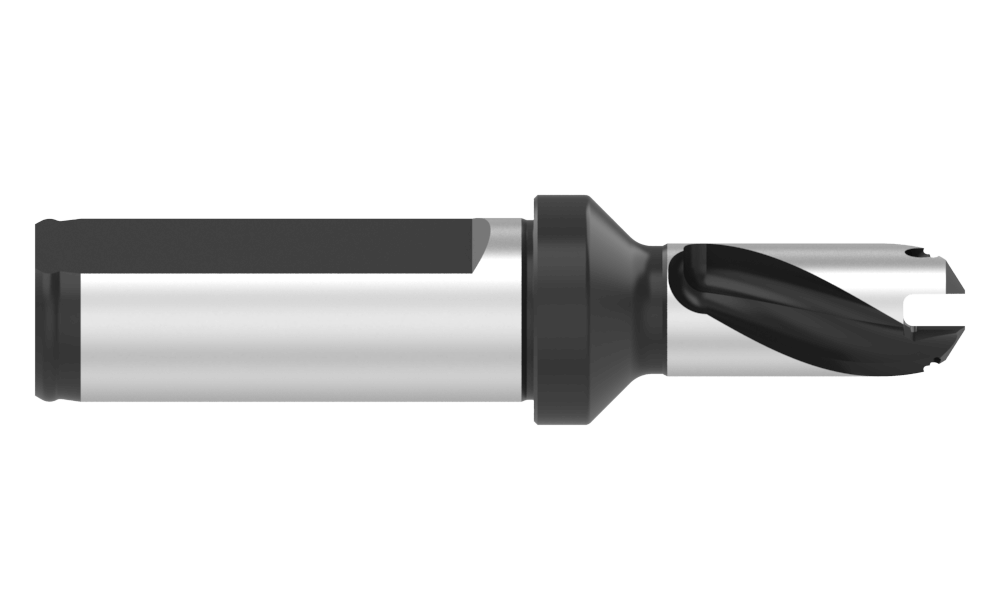

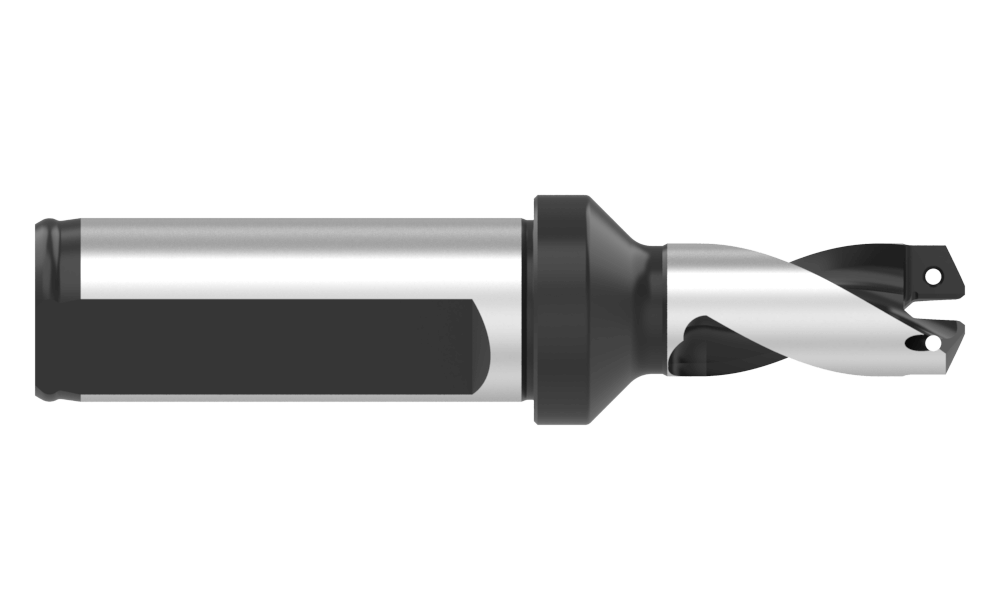

60114H-20FM
14MM STUB GEN3SYS HLD 20MM FLG
GEN3SYS® Holder






Product Specifications
Type of ProductReplaceable Drill Body
Series14
Minimum diameter inch0.5512
Minimum diameter mm14
Maximum diameter inch0.5905
Maximum diameter mm14.99
Drill depth mm17.5
Body length mm44.6
Overall length mm94.6
Shank diameter mm20
Shank length mm50
Shank typeFlanged
Tool Reference Length mm47.2
Flute TypeHelical
Length Type1xD
FlatYes
Coolant Inlet Style RearTSC
Pipe tap rear mm1/8 (BSP)
Deep Hole GuidelinesNo
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.37
CategoryStocked
