60115C45-075F
GEN3SYS® Replaceable Drill Body: 0.5904" - 0.6297", Drill & Chamfer, Flanged Shank
GEN3SYS® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

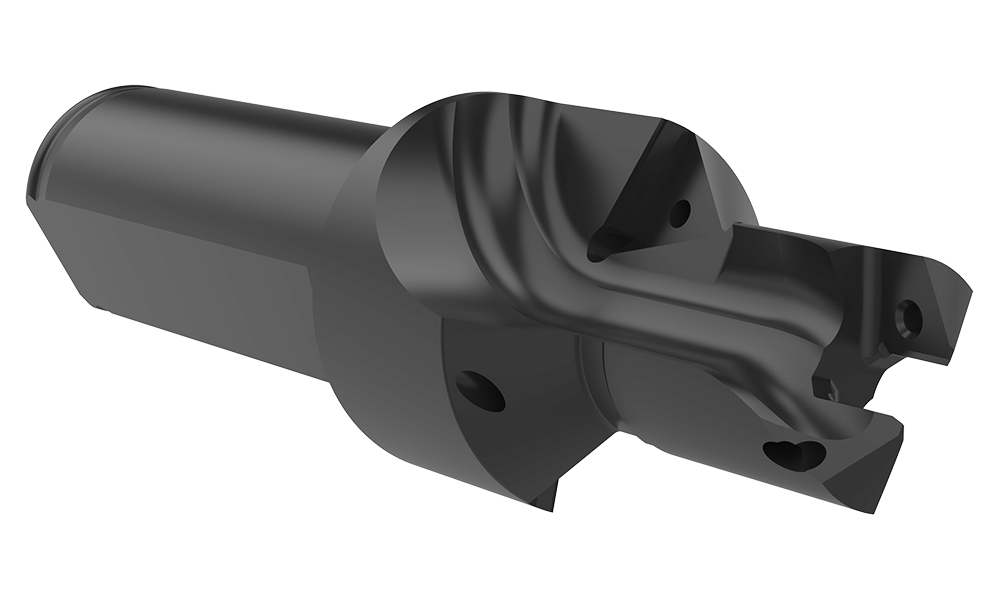

Angle

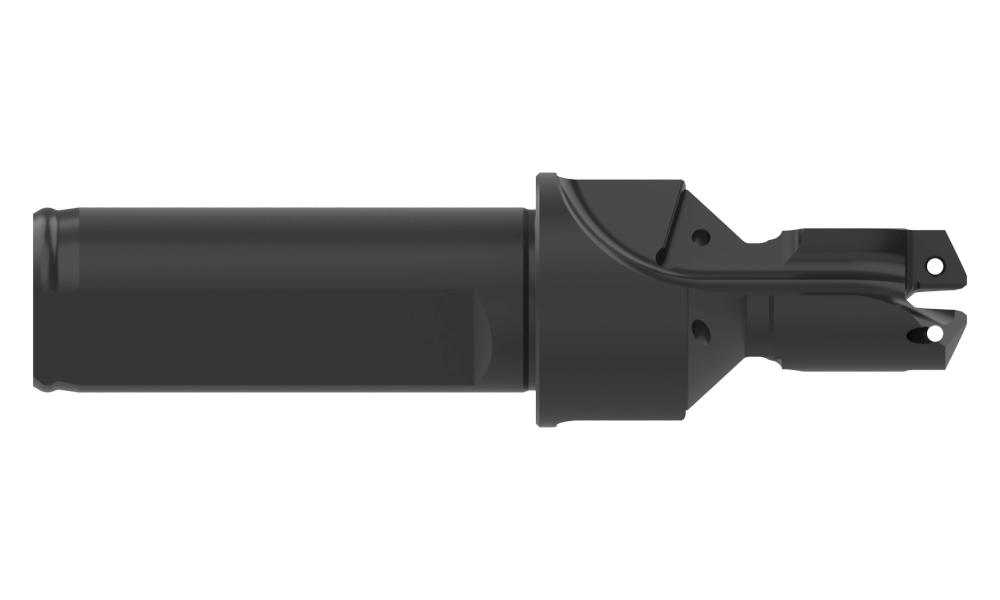

Front

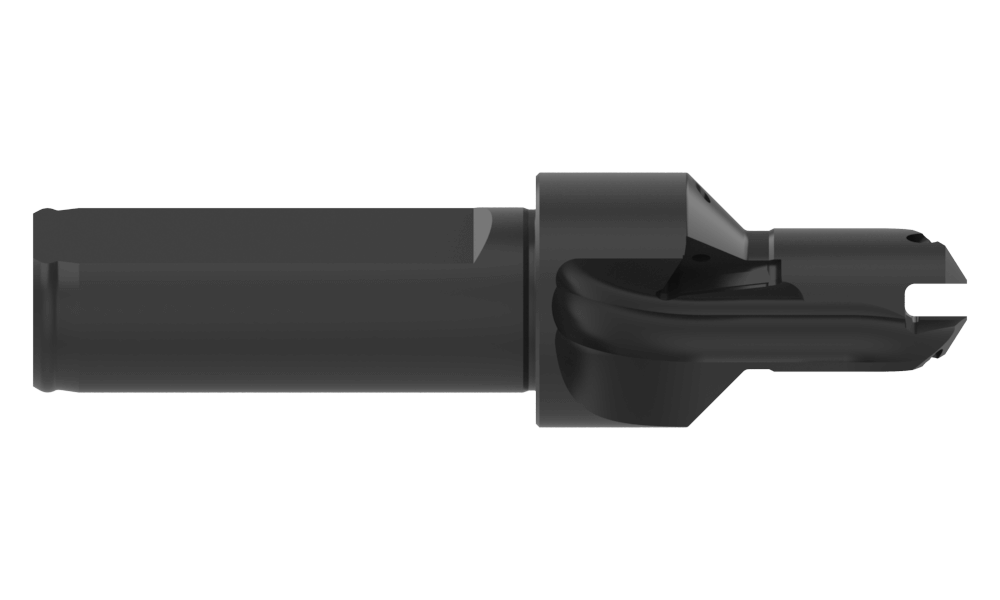

Top
Product Specifications
Series 15
Minimum Diameter (inch) 0.5904
Maximum Diameter (inch) 0.6297
Step Diameter (inch) 1.0625
Length Type Drill & Chamfer
Flute Type Straight
Overall Length (inch) 3.874
Tool Reference Length (inch) 1.844
Body Length (inch) 1.743
Step Length (inch) 0.886
Drill Depth (inch) 0.679
Shank Type Flanged
Shank Diameter (inch) 3/4
Shank Length (inch) 2.030
Pipe Tap Rear (inch) 1/8 NPT
Deep Hole Guidelines (Yes/No) No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7247-IP7-1 (Qty0)
Replacement GEN3SYS® Screw
Z KIT (1) TORX PLUS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-7 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-7
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.39
Weight in kg (each) 0.18
Category Stocked
