60115H-20FM
15MM STUB GEN3SYS HLD 20MM FLG

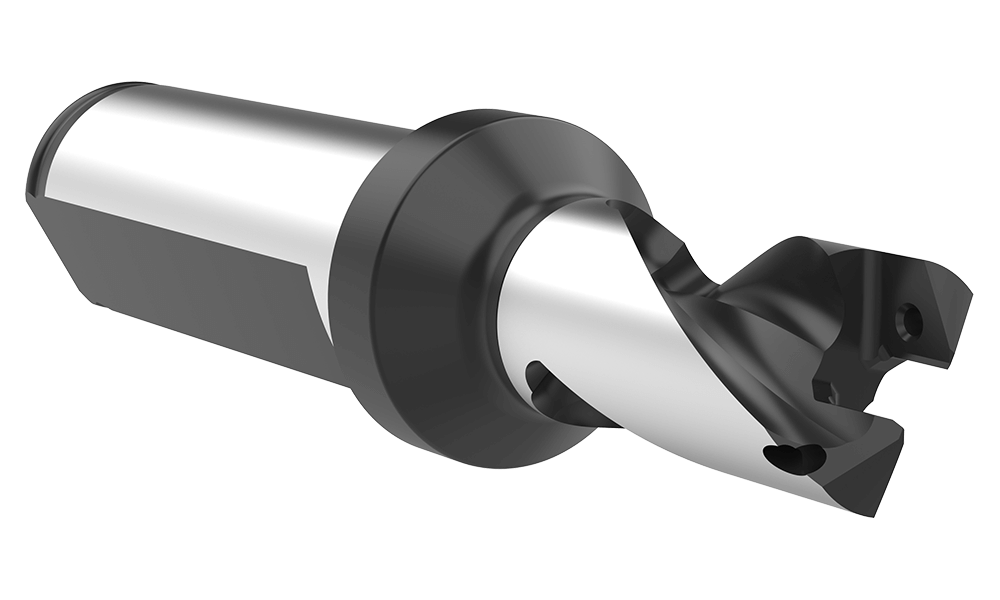

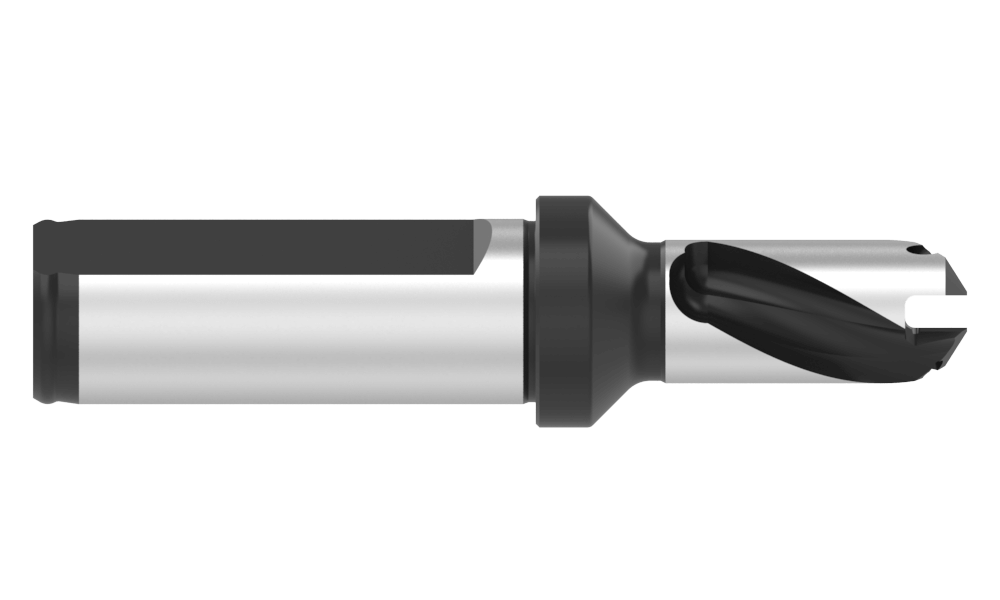

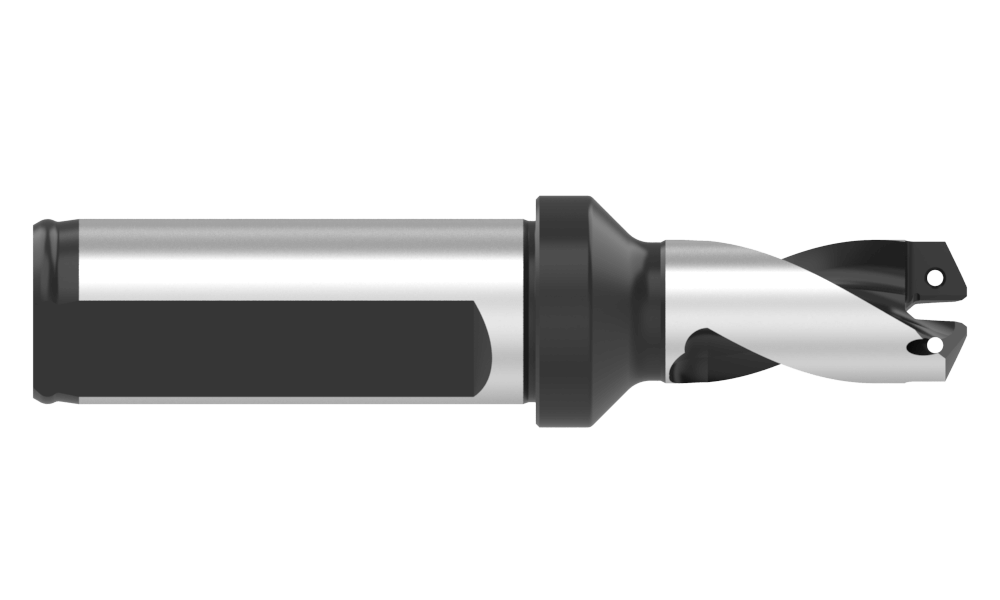

GEN3SYS® Holder






Product Specifications
Type of ProductReplaceable Drill Body
Series15
Minimum diameter inch0.5906
Minimum diameter mm15
Maximum diameter inch0.6298
Maximum diameter mm15.99
Drill depth mm17.5
Body length mm44.3
Overall length mm94.3
Shank diameter mm20
Shank length mm50
Shank typeFlanged
Tool Reference Length mm46.8
Flute TypeHelical
Length Type1xD
FlatYes
Coolant Inlet Style RearTSC
Pipe tap rear mm1/8 (BSP)
Deep Hole GuidelinesNo
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.38
CategoryStocked
