60116C45-075F
GEN3SYS® Replaceable Drill Body: 0.6298" - 0.6690", Drill & Chamfer, Flanged Shank
GEN3SYS® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

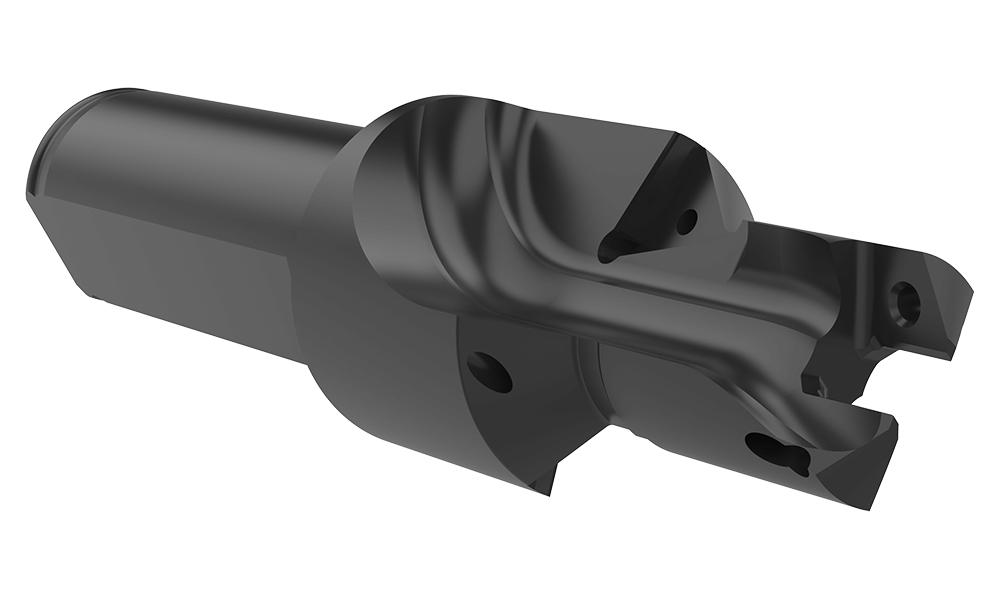

Angle

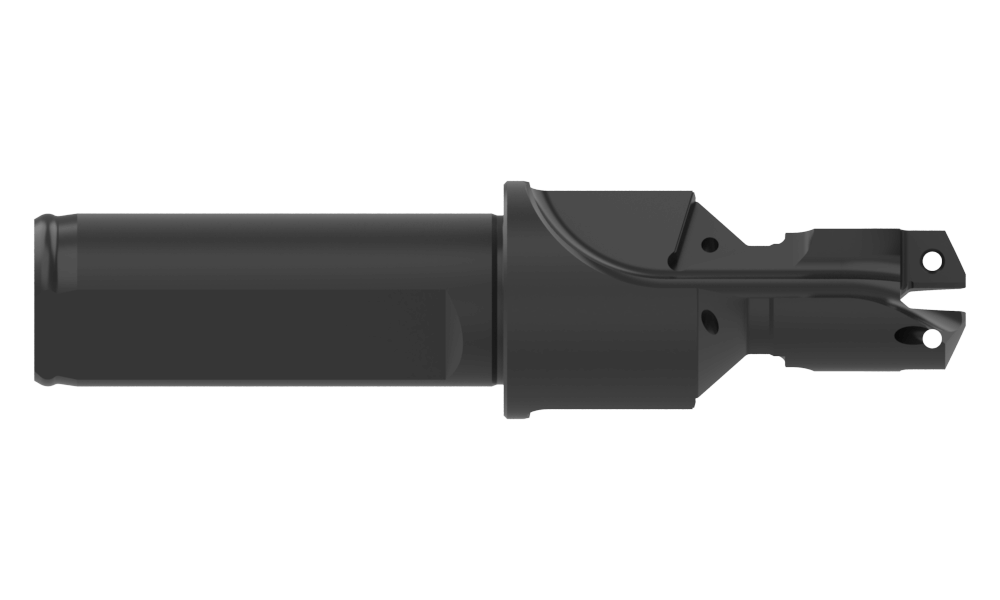

Front

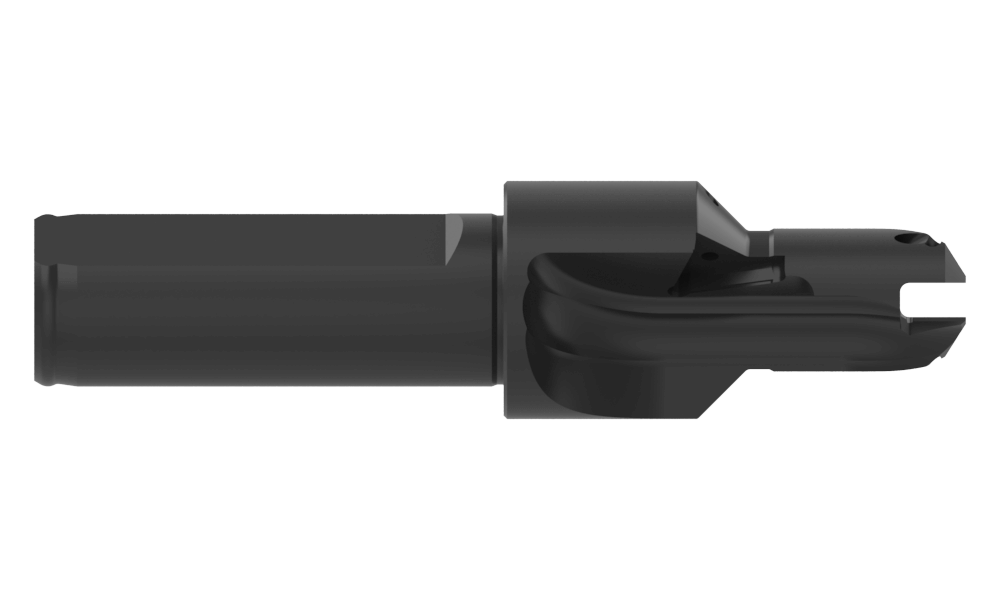

Top
Product Specifications
Series 16
Minimum diameter inch 0.6298
Maximum diameter inch 0.6690
Step Diameter inch 1.0625
Length Type Drill & Chamfer
Flute Type Straight
Overall length inch 4.144
Tool Reference Length inch 2.114
Body length inch 2.000
Step Length inch 0.945
Drill depth inch 0.797
Shank type Flanged
Shank diameter inch 3/4
Shank length inch 2.030
Pipe tap rear inch 1/8 NPT
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 72556-IP8-1 (Qty0)
Replacement GEN3SYS® Screw
0 KIT (1) TORX PLUS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-8 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-8
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.42
Weight in kg (each) 0.19
Category Stocked
