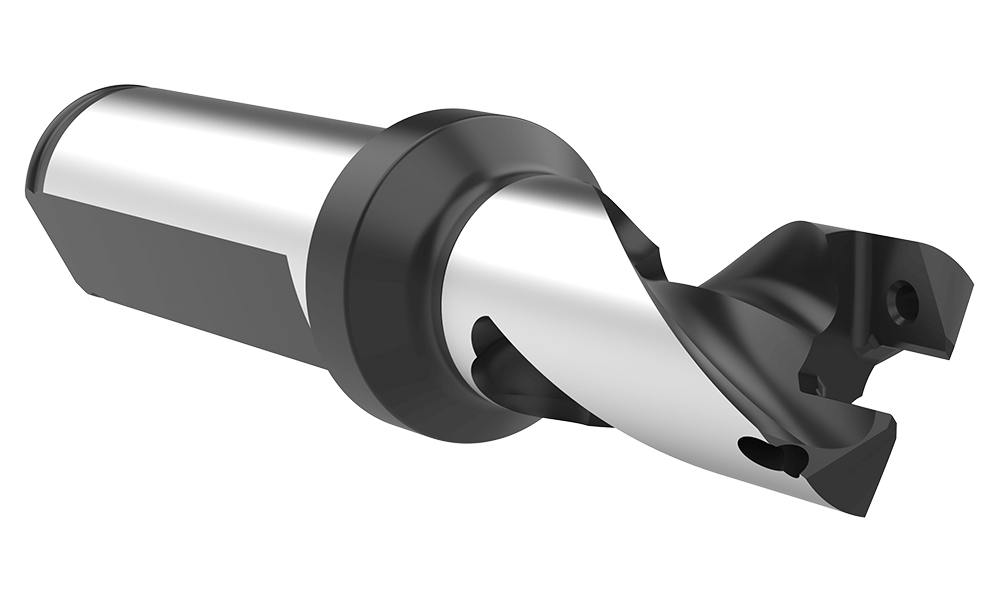

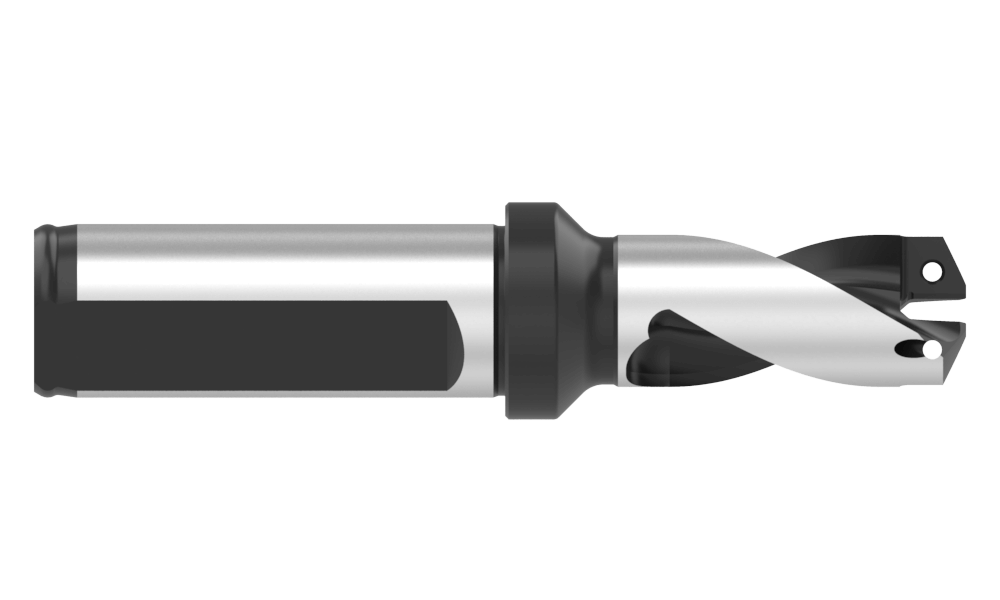

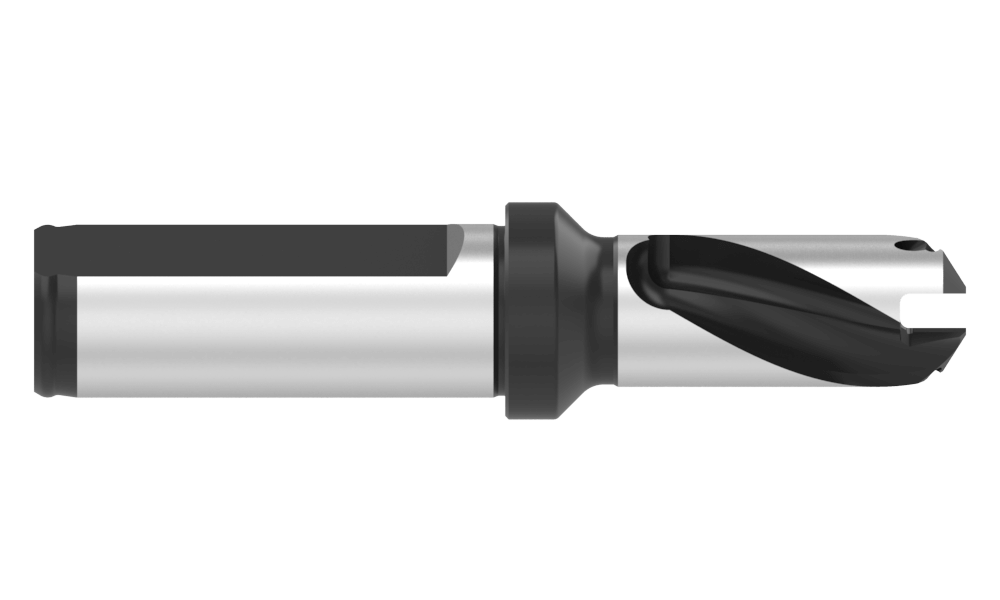

60117H-20FM
17MM STUB GEN3SYS HLD 20MM FLG
GEN3SYS® Holder






Product Specifications
Type of ProductReplaceable Drill Body
Series17
Minimum diameter inch0.6693
Minimum diameter mm17
Maximum diameter inch0.7086
Maximum diameter mm17.99
Drill depth mm21
Body length mm50.5
Overall length mm100.5
Shank diameter mm20
Shank length mm50
Shank typeFlanged
Tool Reference Length mm53.4
Flute TypeHelical
Length Type1xD
FlatYes
Coolant Inlet Style RearTSC
Pipe tap rear mm1/8 (BSP)
Deep Hole GuidelinesNo
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.41
CategoryStocked
