60120C45-25FM
GEN3SYS® Replaceable Drill Body: (20.00 mm - 21.99 mm), Drill & Chamfer, Flanged Shank
GEN3SYS® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

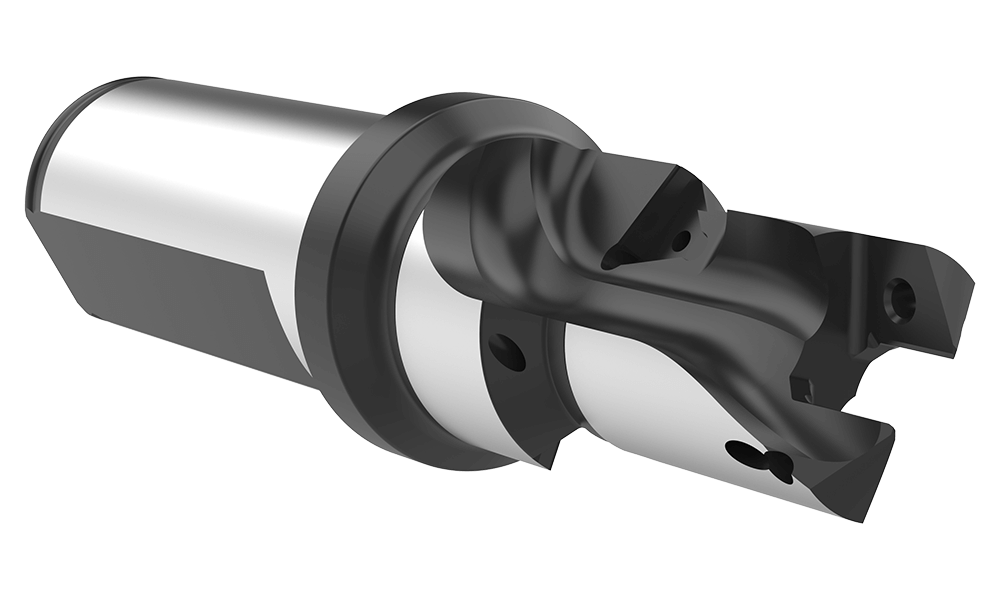

Angle

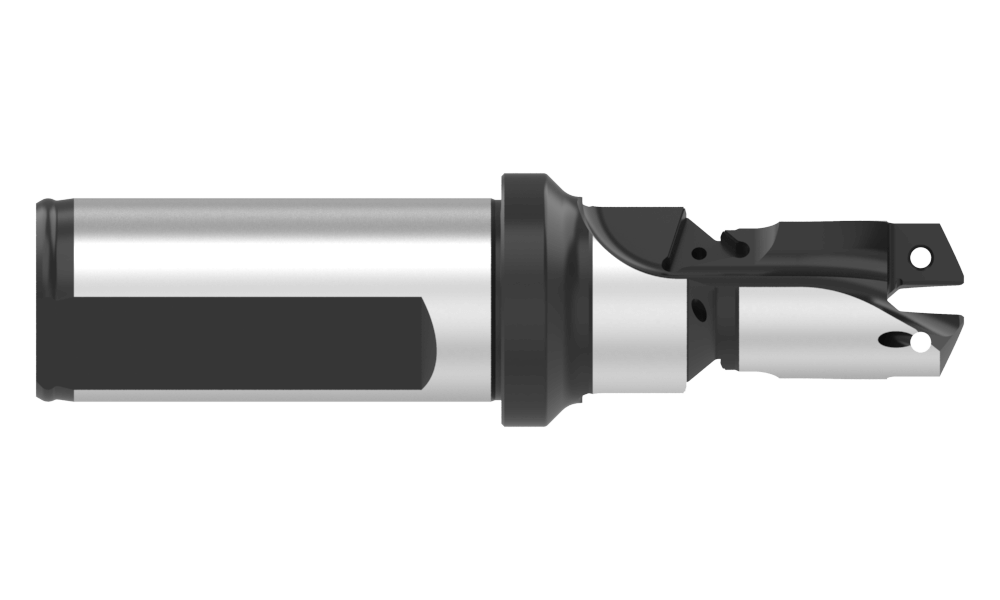

Front

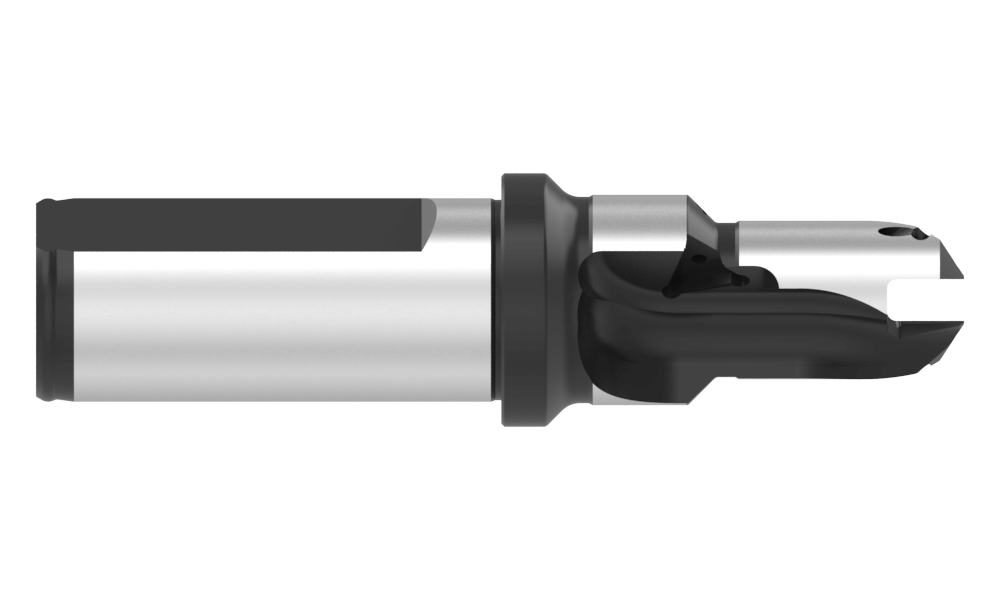

Top
Product Specifications
Series 20
Minimum diameter mm 20.00
Maximum diameter mm 21.99
Step Diameter mm 27.18
Length Type Drill & Chamfer
Flute Type Straight
Overall length mm 116.4
Tool Reference Length mm 60.4
Body length mm 57.6
Step Length mm 30.0
Drill depth mm 21.9
Shank type Flanged
Shank diameter mm 25
Shank length mm 56.0
Pipe tap rear mm 1/8 BSPT
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7375-IP9-1 (Qty0)
Replacement GEN3SYS® Screw
1 KIT (1) SCREWS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.74
Weight in kg (each) 0.34
Category Stocked
