60120H-25FM
20MM STUB GEN3SYS HLD 25MM FLG

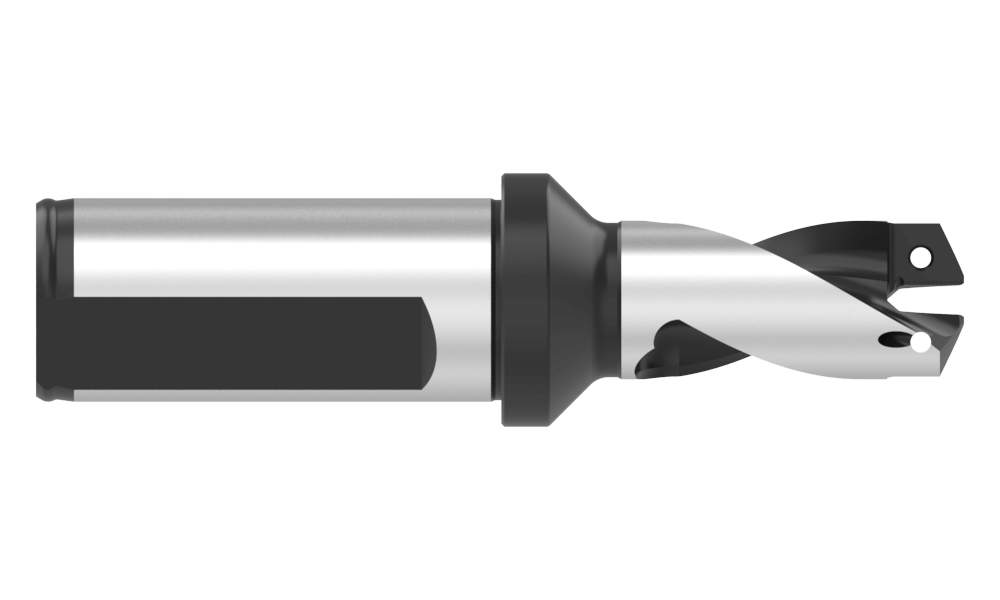

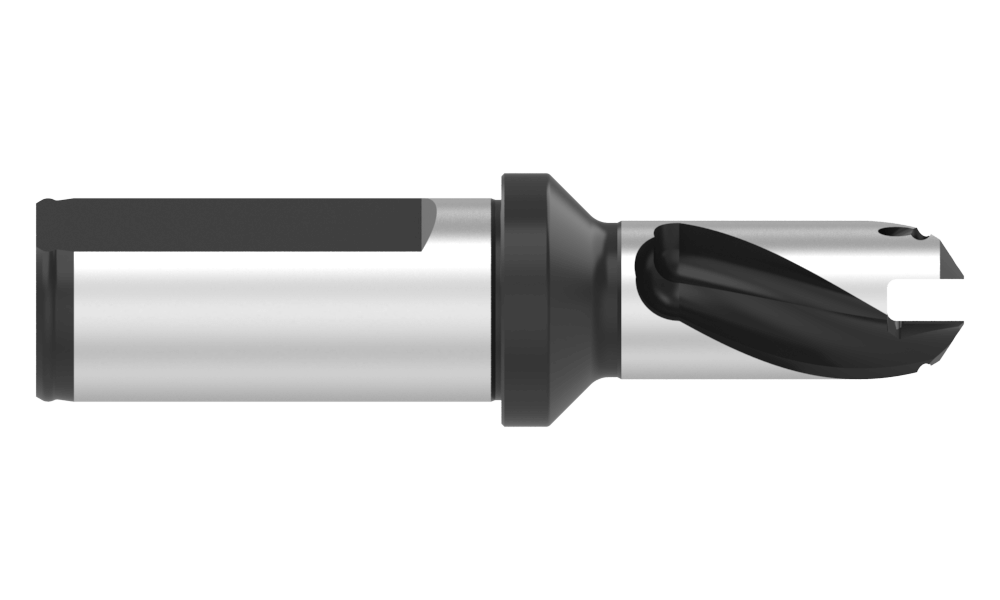

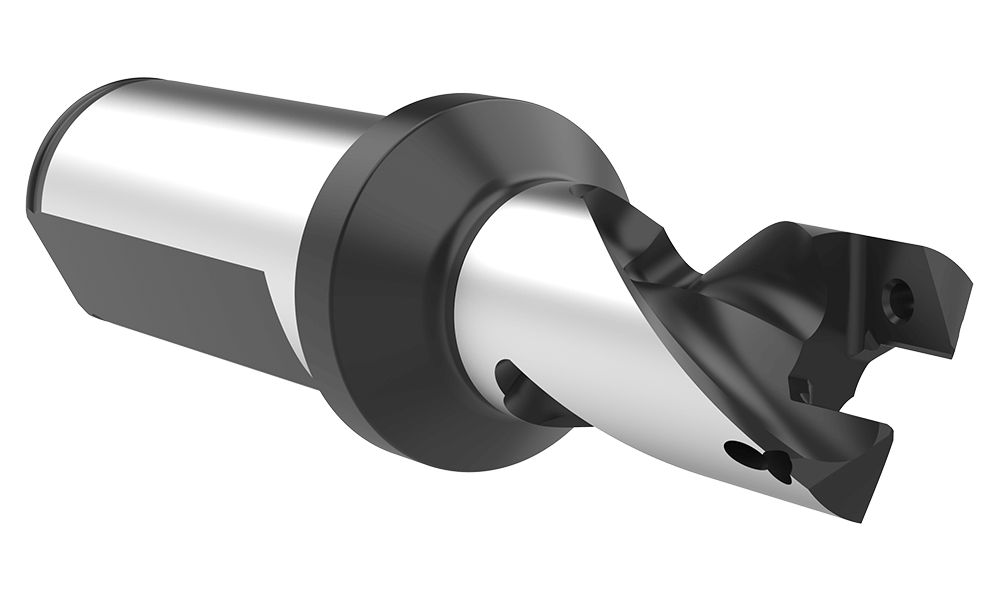

GEN3SYS® Holder






Product Specifications
Type of ProductReplaceable Drill Body
Series20
Minimum diameter inch0.7874
Minimum diameter mm20
Maximum diameter inch0.866
Maximum diameter mm21.99
Drill depth mm24
Body length mm57.6
Overall length mm113.6
Shank diameter mm25
Shank length mm56
Shank typeFlanged
Tool Reference Length mm60.4
Flute TypeHelical
Length Type1xD
FlatYes
Coolant Inlet Style RearTSC
Pipe tap rear mm1/8 (BSP)
Deep Hole GuidelinesNo
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.72
CategoryStocked
