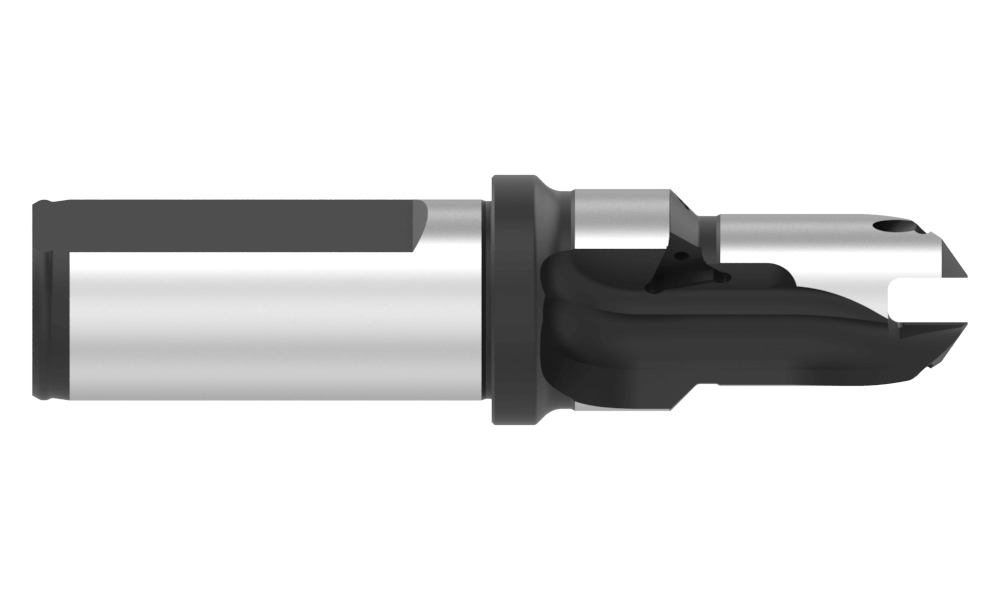

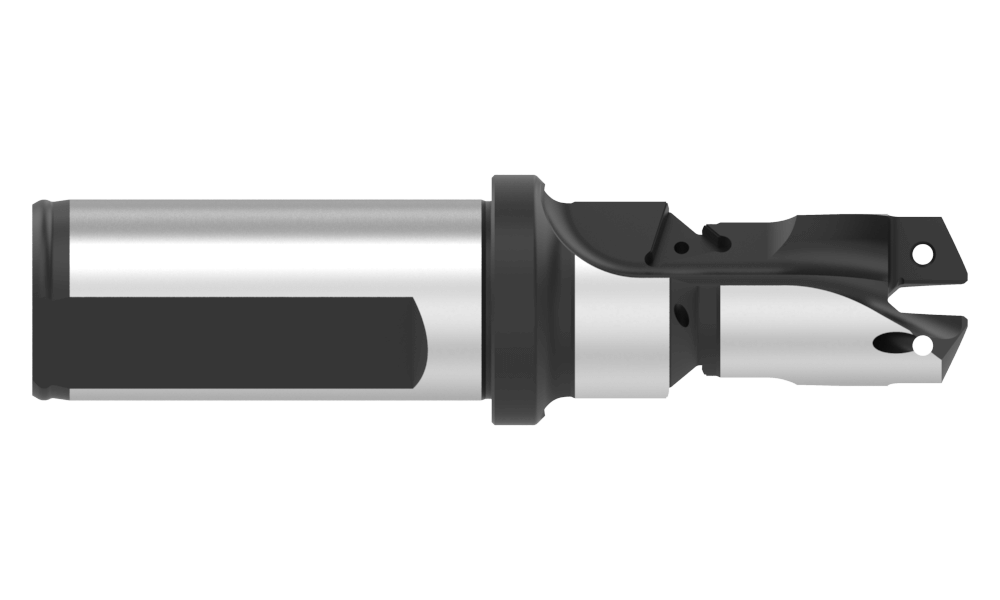

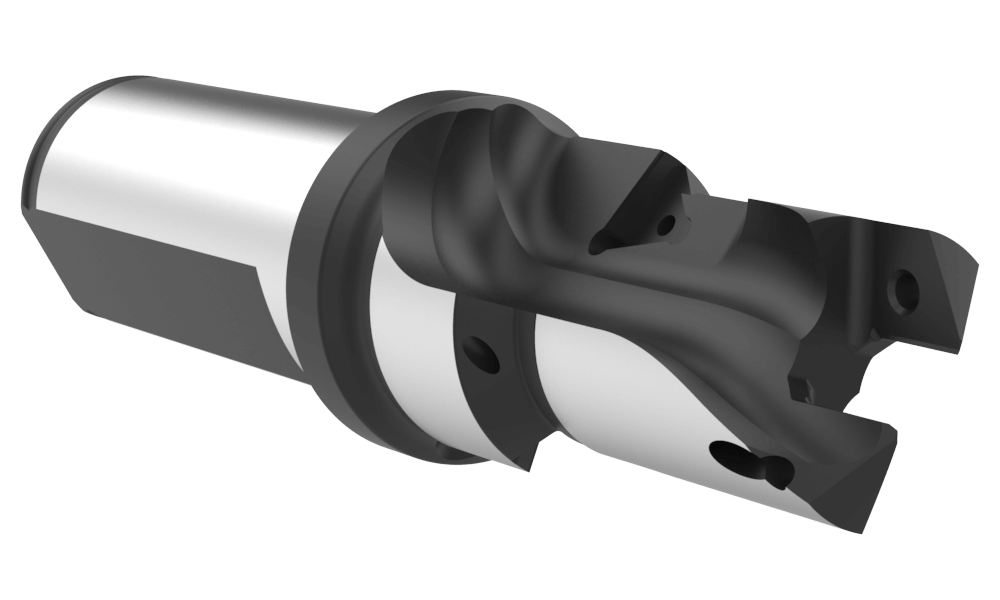

60122C45-25FM
22MM DR/CH GEN3 HLD 25MM FLG
GEN3SYS® Holder






Product Specifications
Type of ProductReplaceable Drill Body
Series22
Minimum diameter inch0.8661
Minimum diameter mm22
Maximum diameter inch0.9448
Maximum diameter mm23.99
Drill depth mm40.5
Body length mm60
Overall length mm119
Shank diameter mm25
Shank length mm56
Shank typeFlanged
Tool Reference Length mm63
Flute TypeStraight
Length Type1xD
FlatYes
Coolant Inlet Style RearTSC
Step Diameter mm29
Step Length mm33
Deep Hole GuidelinesNo
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.77
CategoryStocked
