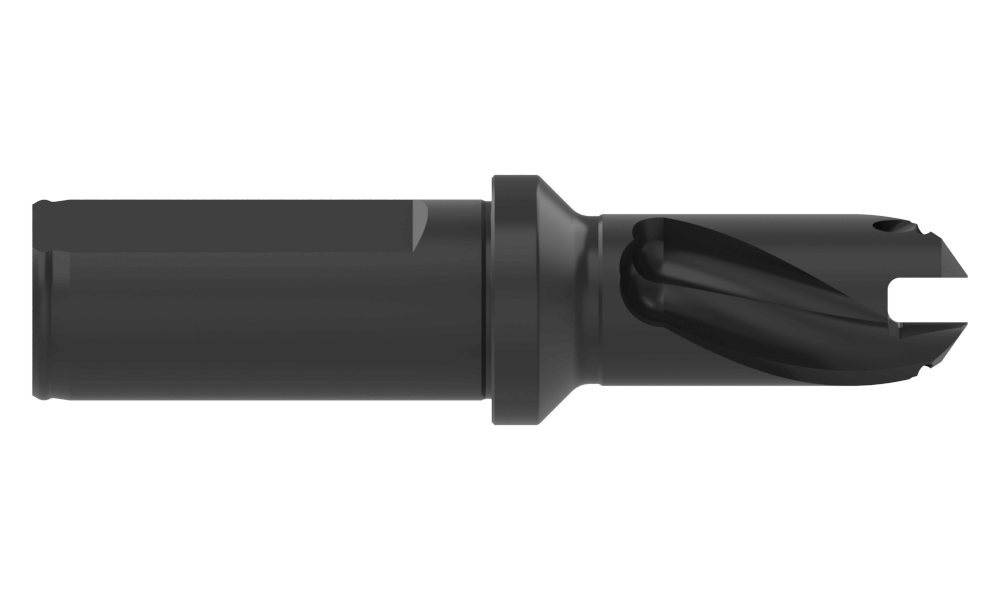

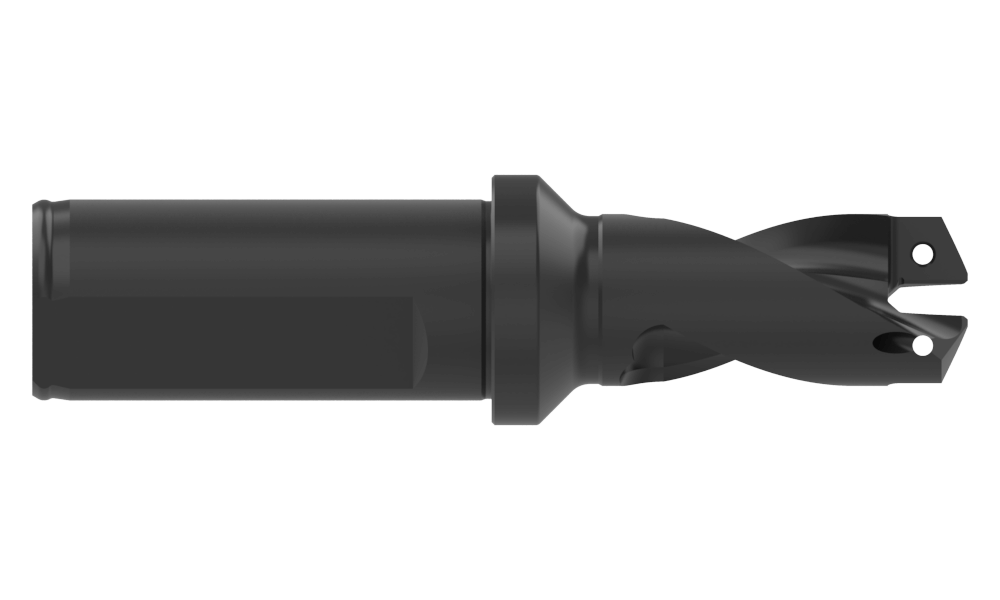

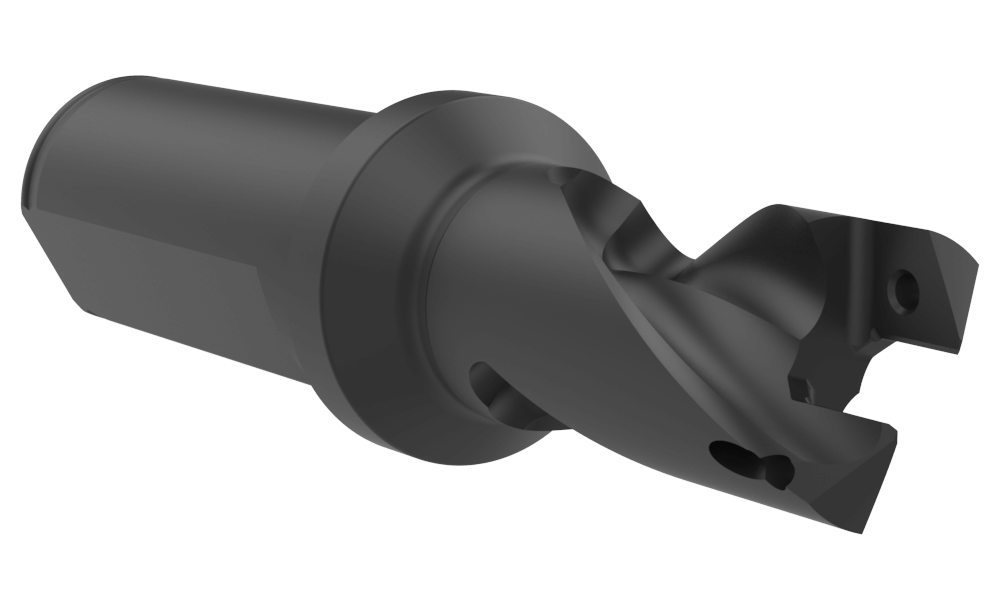

| Type of Product | Replaceable Drill Body |
| Series | 22 |
| Minimum diameter inch | 0.8661 |
| Minimum diameter mm | 22 |
| Maximum diameter inch | 0.9448 |
| Maximum diameter mm | 23.99 |
| Drill depth inch | 1-1/16 |
| Body length inch | 2-23/64 |
| Overall length inch | 4-41/64 |
| Shank diameter inch | 1 |
| Shank type | Flanged |
| Flute Type | Helical |
| Length Type | 1xD |
| Flat | Yes |
| Coolant Inlet Style Rear | TSC |
| Pipe tap rear inch | 1/8 (NPT) |
| Shank length inch | 2-9/32 |
| Tool Reference Length inch | 2-31/64 |
| Deep Hole Guidelines | No |
