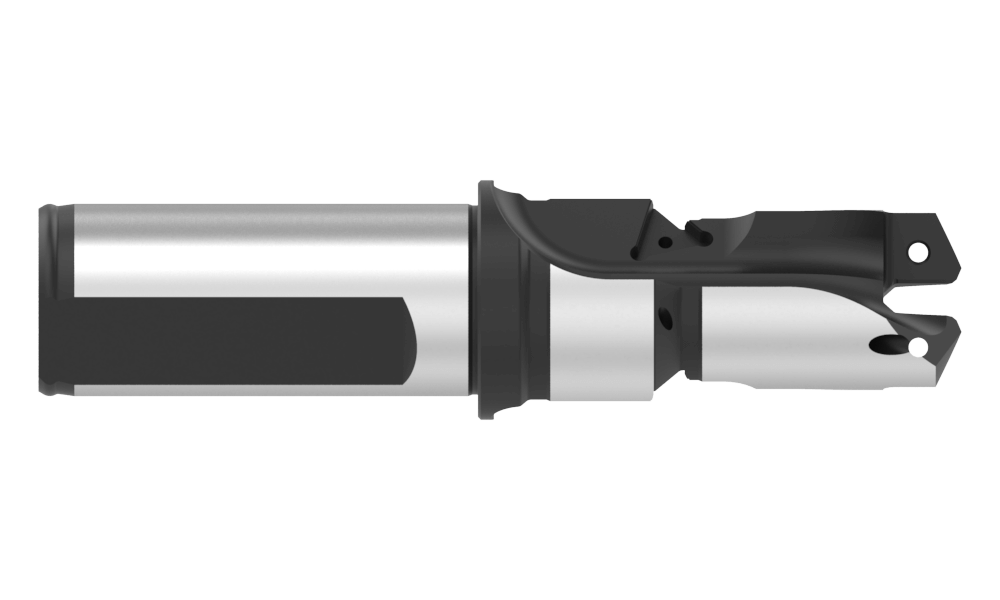

60124C45-25FM
24MM DR/CH GEN3 HLD 25MM FLG
GEN3SYS® Holder






Product Specifications
Type of ProductReplaceable Drill Body
Series24
Minimum diameter inch0.9449
Minimum diameter mm24
Maximum diameter inch1.0235
Maximum diameter mm25.99
Drill depth mm45.5
Body length mm64.2
Overall length mm123
Shank diameter mm25
Shank length mm56
Shank typeFlanged
Tool Reference Length mm67.1
Flute TypeStraight
Length Type1xD
FlatYes
Coolant Inlet Style RearTSC
Step Diameter mm31
Step Length mm36
Deep Hole GuidelinesNo
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.81
CategoryStocked
