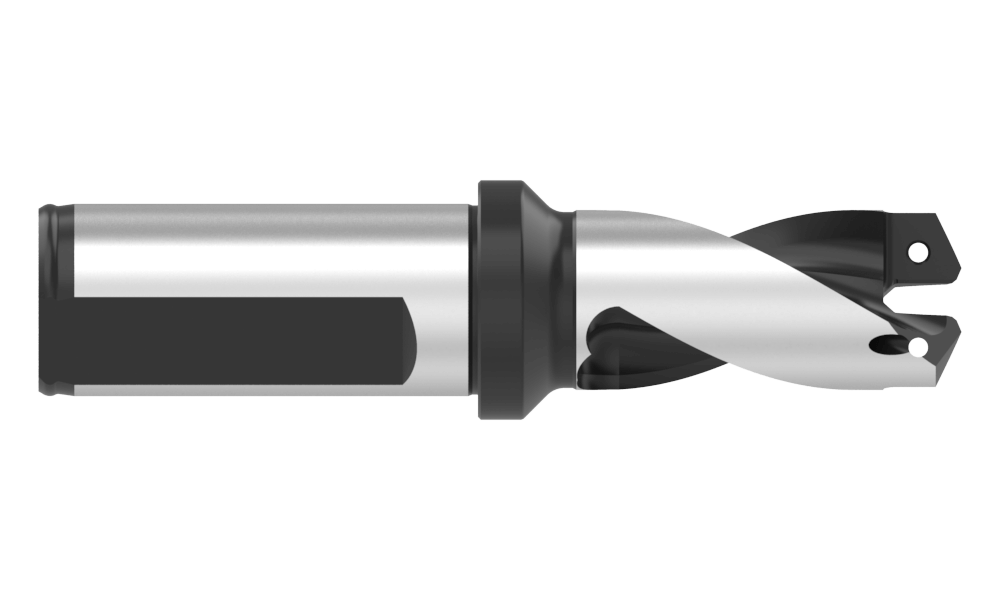

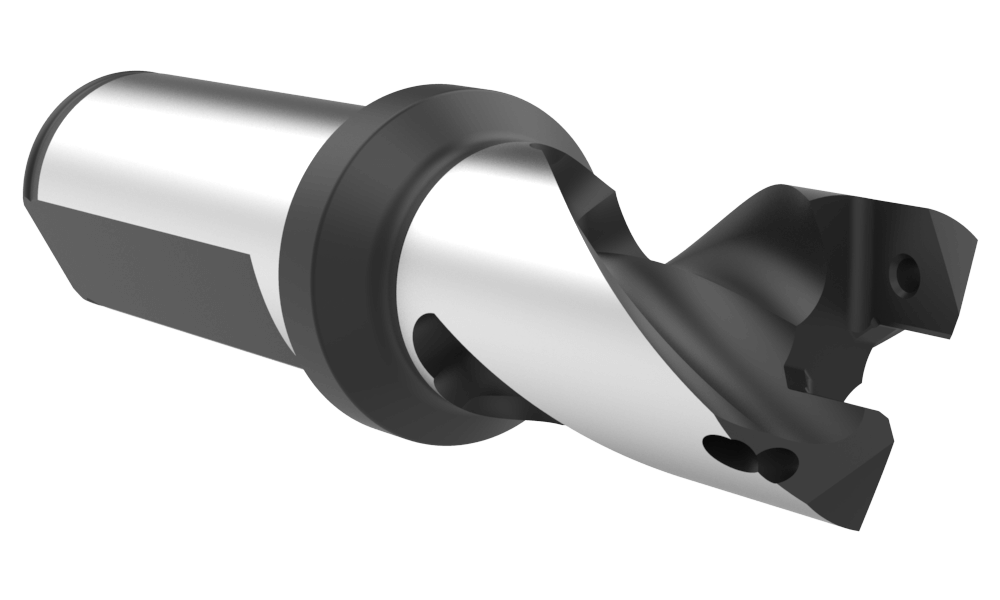

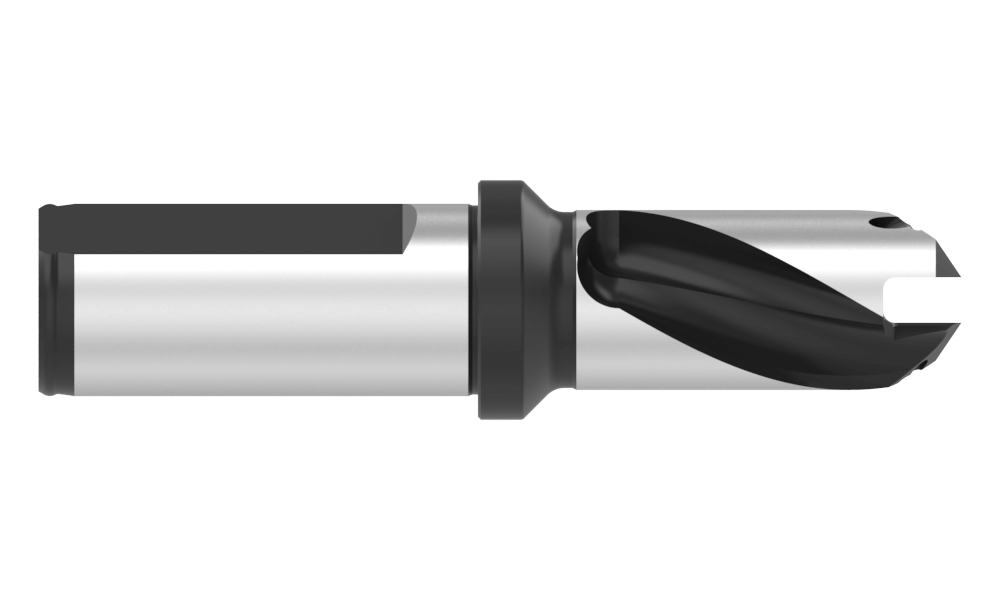

60124H-25FM
24MM STUB GEN3SYS HLD 25MM FLG
GEN3SYS® Holder






Product Specifications
Type of ProductReplaceable Drill Body
Series24
Minimum diameter inch0.9449
Minimum diameter mm24
Maximum diameter inch1.0235
Maximum diameter mm25.99
Drill depth mm28.5
Body length mm64.2
Overall length mm120.1
Shank diameter mm25
Shank length mm56
Shank typeFlanged
Tool Reference Length mm67.1
Flute TypeHelical
Length Type1xD
FlatYes
Coolant Inlet Style RearTSC
Pipe tap rear mm1/8 (BSP)
Deep Hole GuidelinesNo
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.81
CategoryStocked
