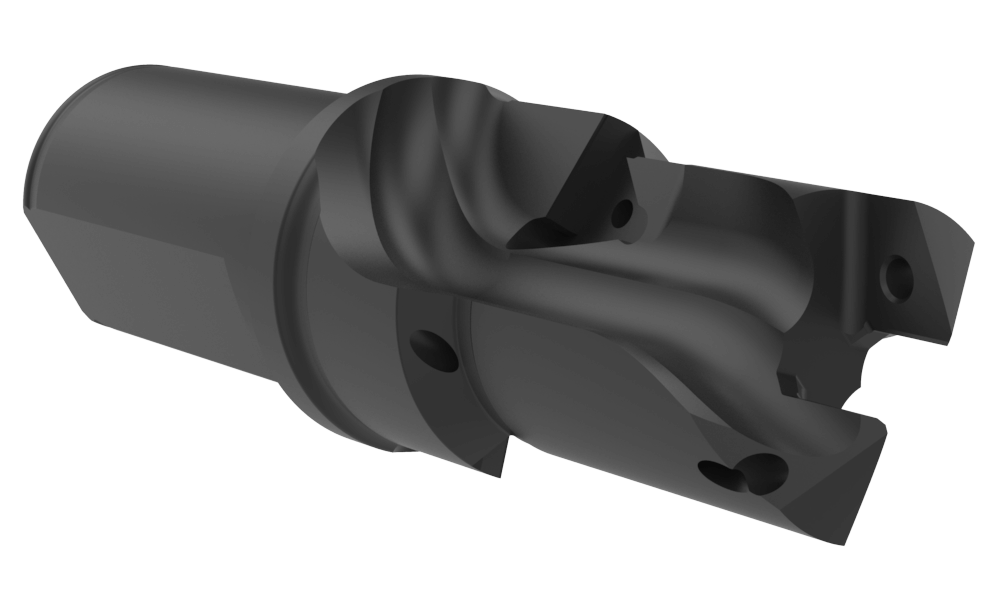

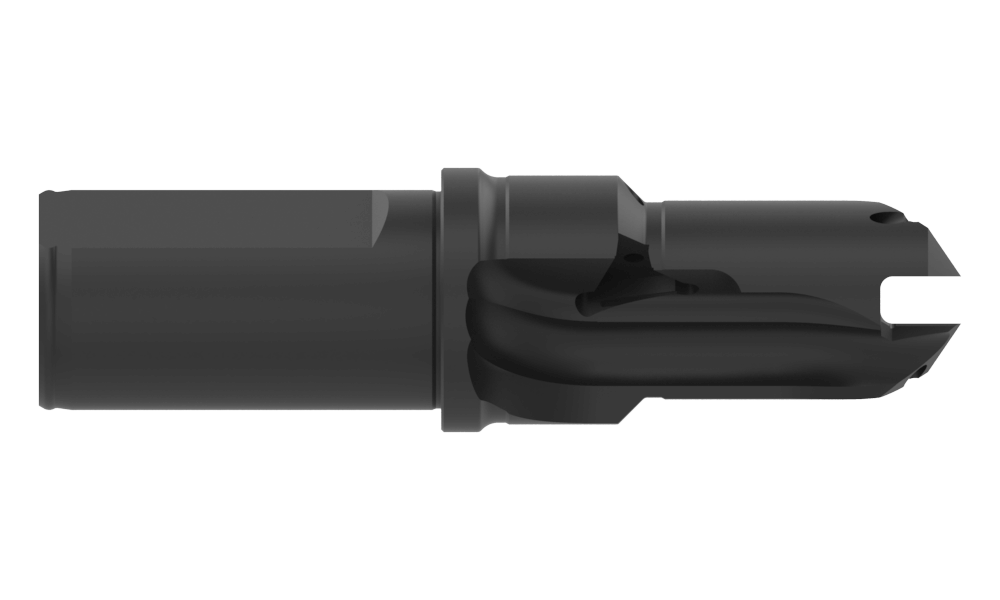

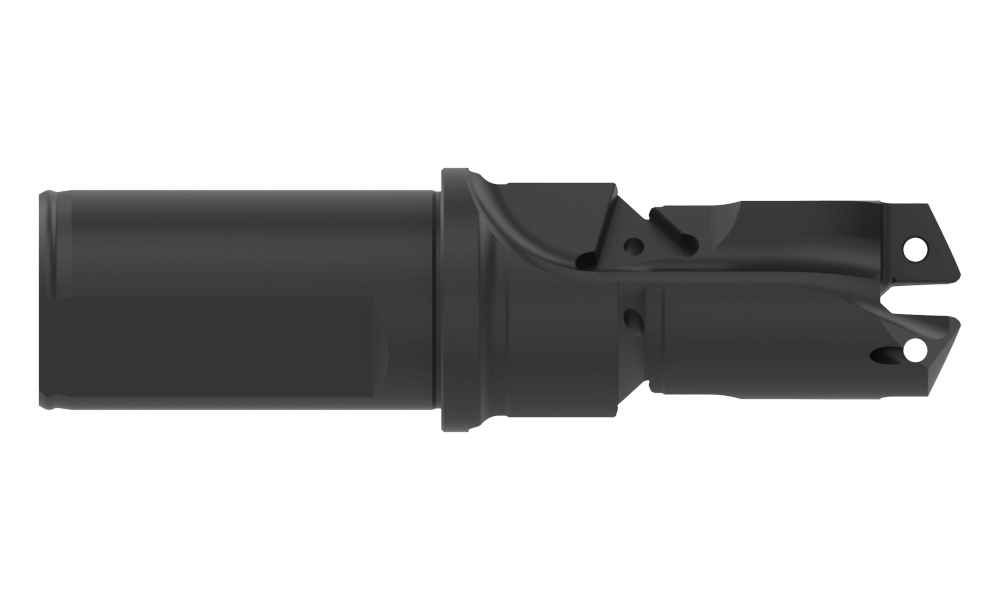

| Type of Product | Replaceable Drill Body |
| Series | 29 |
| Minimum diameter inch | 1.1417 |
| Minimum diameter mm | 29 |
| Maximum diameter inch | 1.2597 |
| Maximum diameter mm | 31.99 |
| Drill depth inch | 2-13/64 |
| Body length inch | 2-31/32 |
| Overall length inch | 5-15/64 |
| Shank diameter inch | 1-1/4 |
| Shank type | Flanged |
| Flute Type | Straight |
| Length Type | 1xD |
| Flat | Yes |
| Coolant Inlet Style Rear | TSC |
| Shank length inch | 2-9/32 |
| Step Diameter inch | 1-29/64 |
| Step Length inch | 1-23/32 |
| Tool Reference Length inch | 3-5/64 |
| Deep Hole Guidelines | No |
