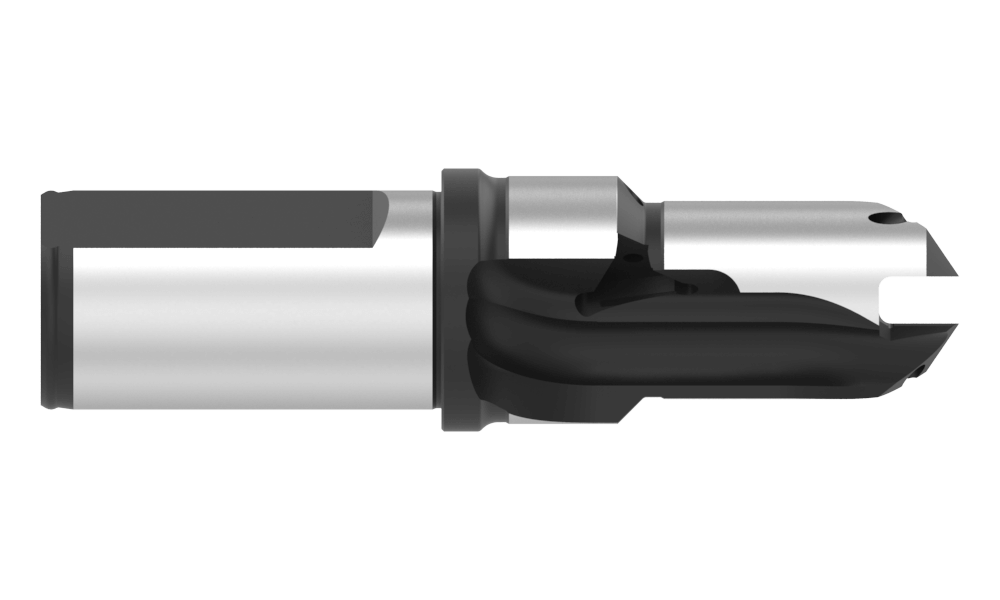

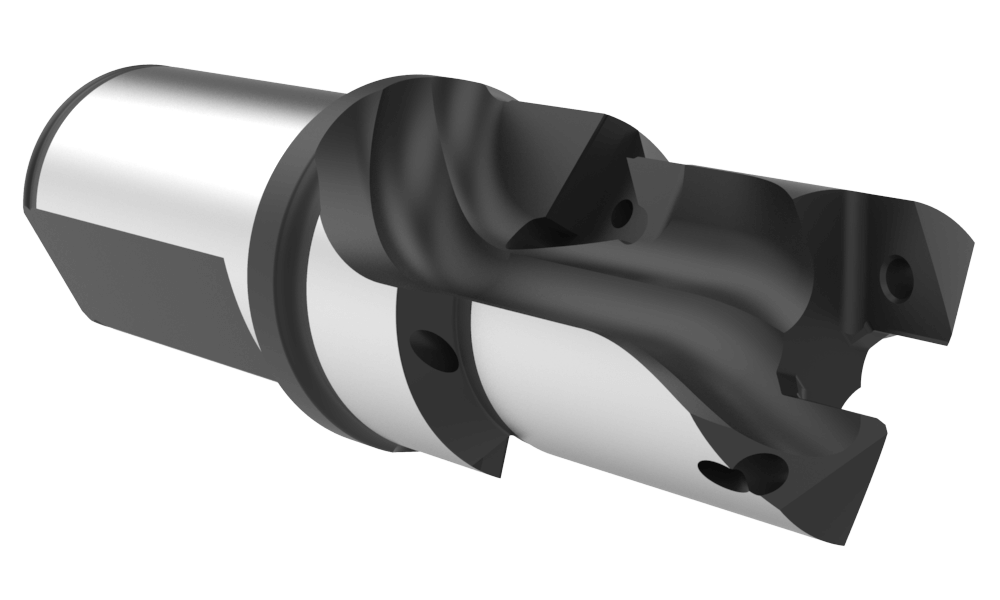

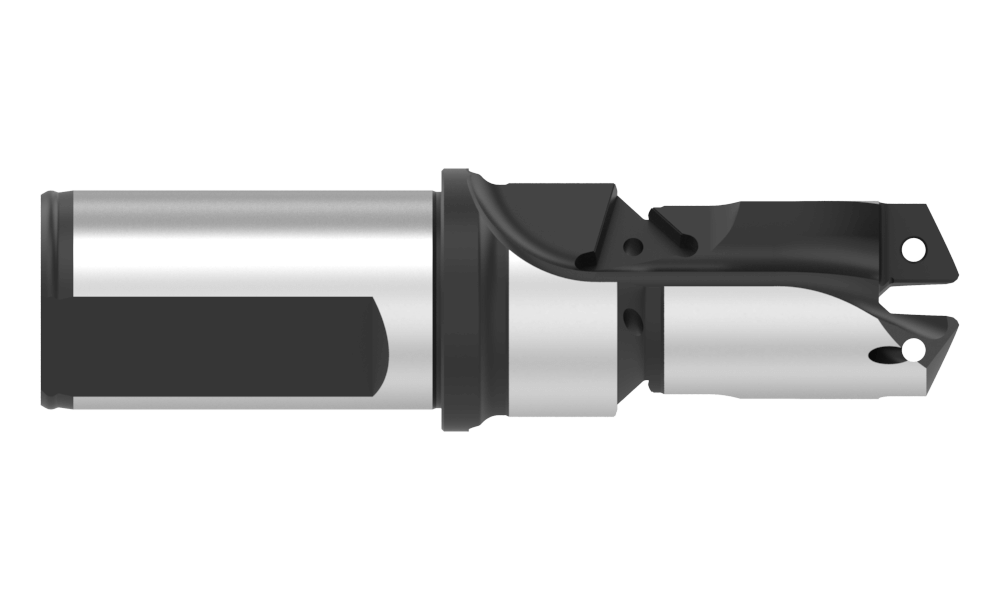

60129C45-32FM
29MM DR/CH GEN3 HLD 32MM FLG
GEN3SYS® Holder






Product Specifications
Type of ProductReplaceable Drill Body
Series29
Minimum diameter inch1.1417
Minimum diameter mm29
Maximum diameter inch1.2597
Maximum diameter mm31.99
Drill depth mm55.9
Body length mm75.2
Overall length mm137.3
Shank diameter mm32
Shank length mm60
Shank typeFlanged
Tool Reference Length mm78.2
Flute TypeStraight
Length Type1xD
FlatYes
Coolant Inlet Style RearTSC
Step Diameter mm37.1
Step Length mm43.5
Deep Hole GuidelinesNo
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)1.39
CategoryStocked
