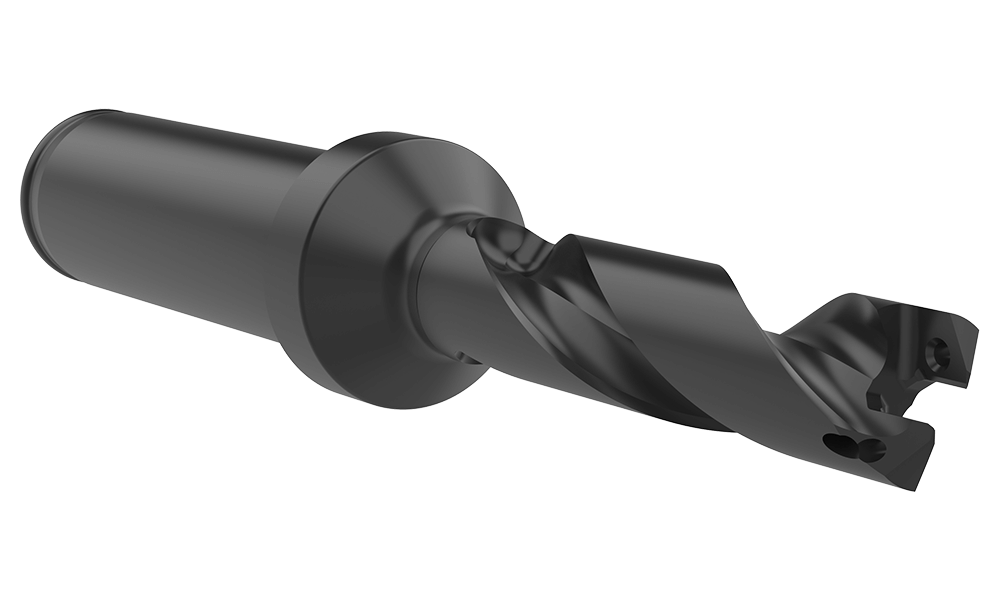

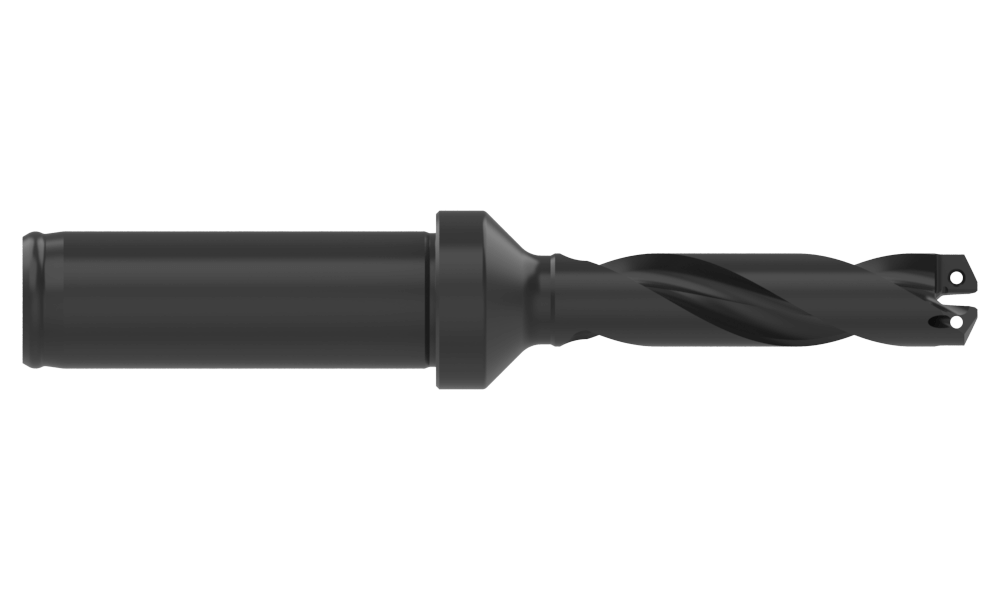

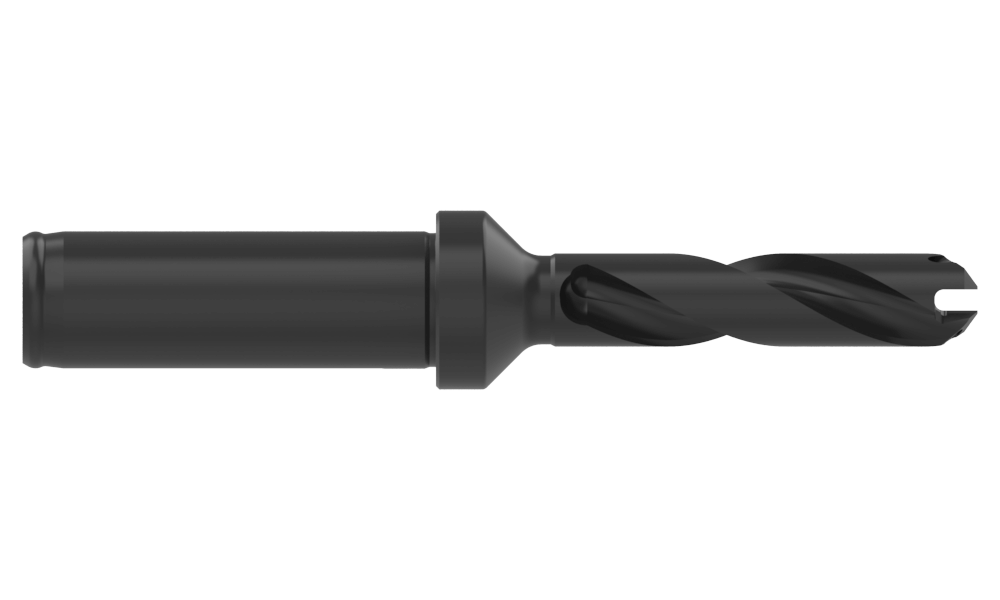

Type of Product | Replaceable Drill Body |
Series | 11 |
Minimum diameter inch | 0.4331 |
Minimum diameter mm | 11 |
Maximum diameter inch | 0.4723 |
Maximum diameter mm | 11.99 |
Drill depth inch | 1-27/64 |
Body length inch | 2-29/64 |
Overall length inch | 4-21/64 |
Shank diameter inch | 5/8 |
Shank type | Flanged |
Flute Type | Helical |
Length Type | 3xD |
Flat | No |
Coolant Inlet Style Rear | TSC |
Pipe tap rear inch | 1/16 (NPT) |
Shank length inch | 1-7/8 |
Tool Reference Length inch | 2-17/32 |
Deep Hole Guidelines | No |
