60311H-063F
GEN3SYS® Replaceable Drill Body: 0.4329" - 0.4722", 3xD, Flanged Shank
GEN3SYS® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

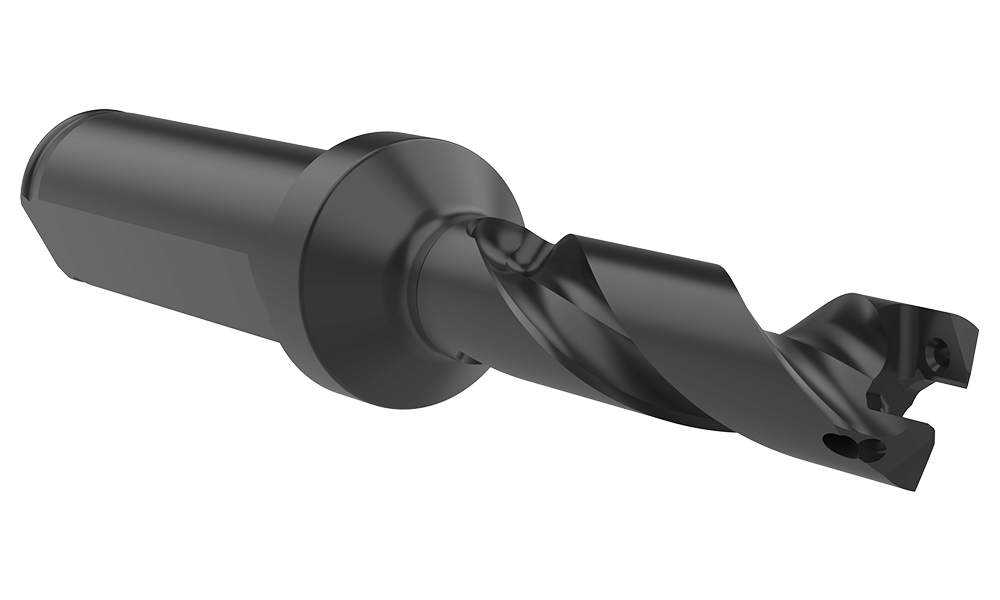

Angle

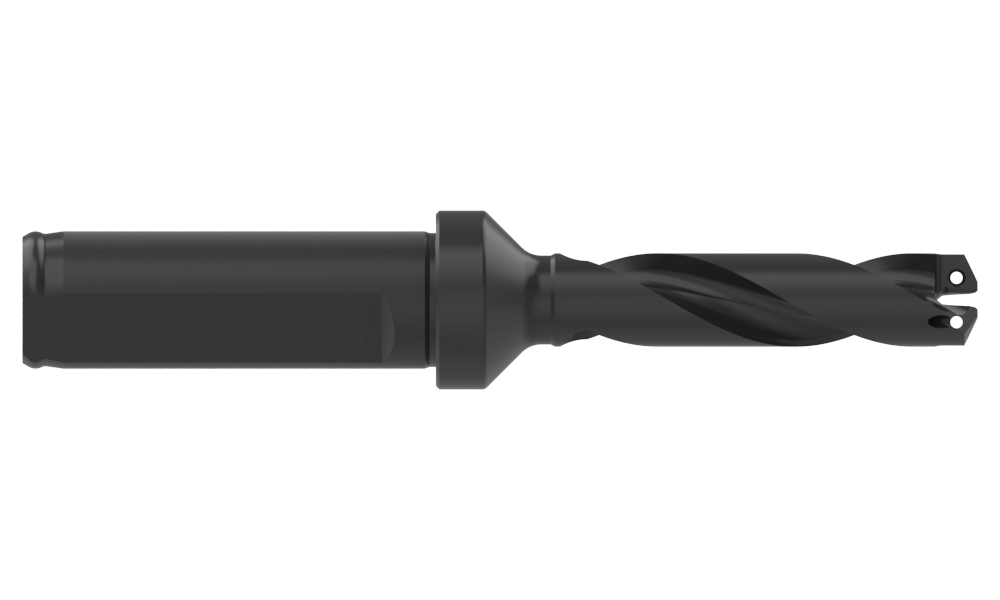

Front

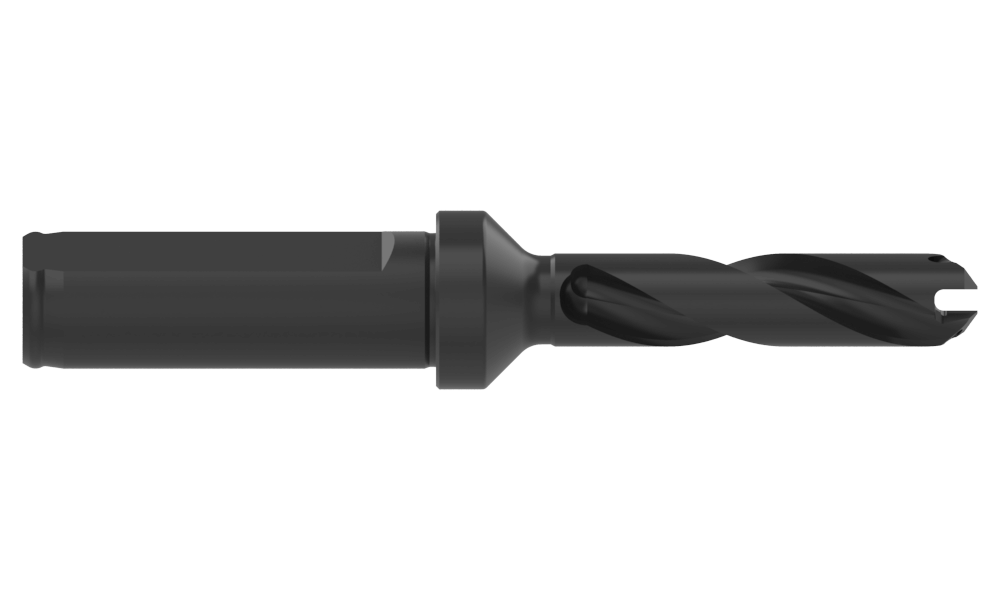

Top
Product Specifications
Series 11
Minimum Diameter (inch) 0.4329
Maximum Diameter (inch) 0.4722
Length Type 3xD
Flute Type Helical
Overall Length (inch) 4.412
Tool Reference Length (inch) 2.537
Body Length (inch) 2.457
Drill Depth (inch) 1.414
Shank Type Flanged
Shank Diameter (inch) 5/8
Shank Length (inch) 1.875
Pipe Tap Rear (inch) 1/16 NPT
Deep Hole Guidelines (Yes/No) No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 71843-IP6-1 (Qty0)
Replacement GEN3SYS® Screw
#11 KIT (1) TORX PLUS, M1,8 X
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-6 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-6
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.25
Weight in kg (each) 0.11
Category Stocked
