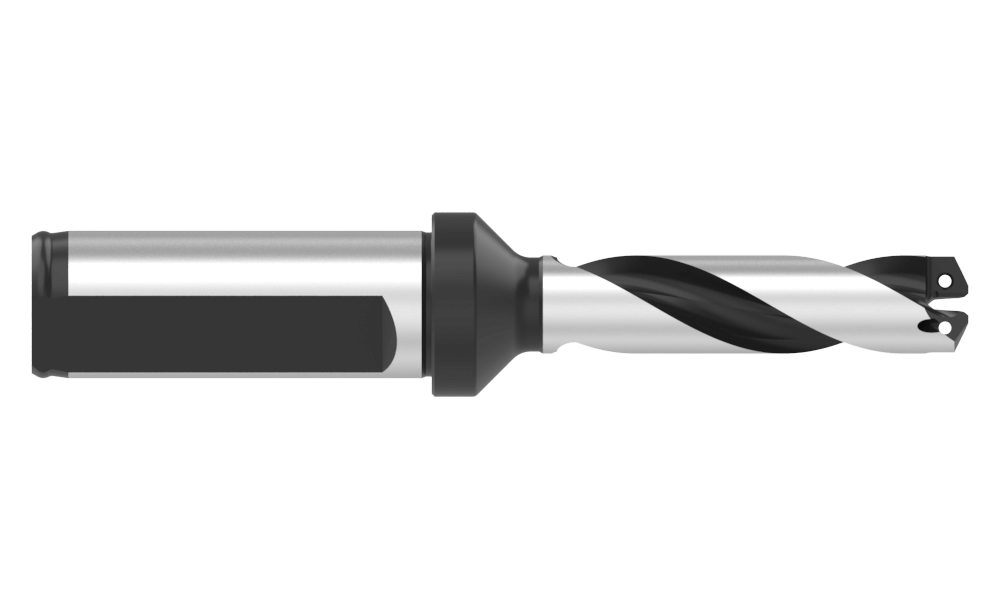

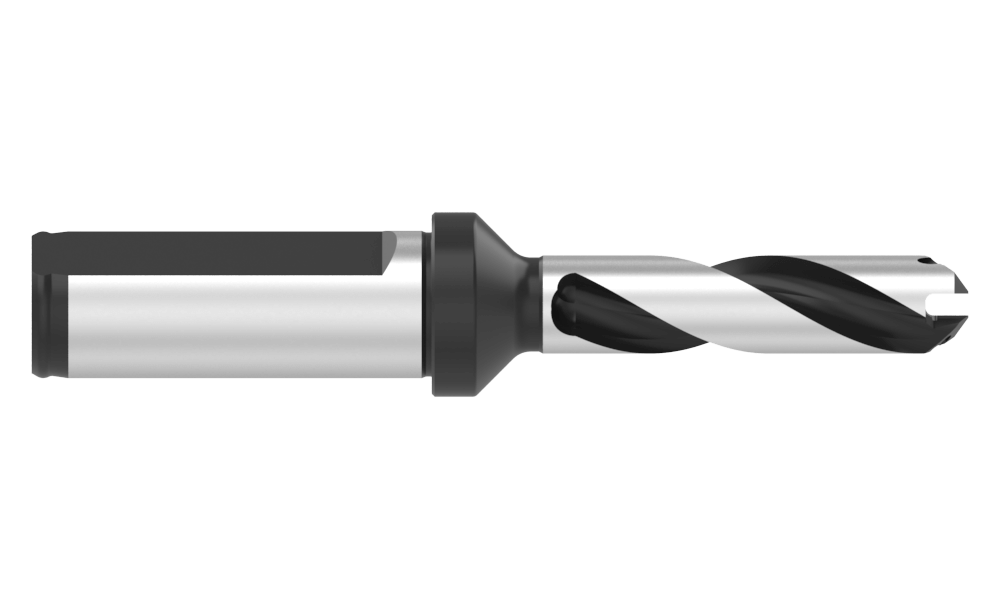

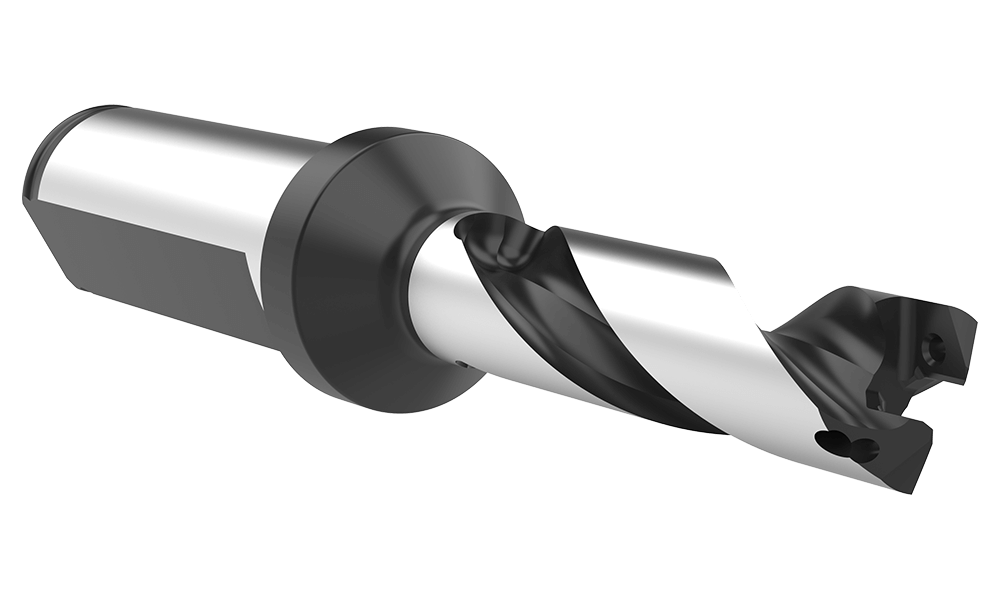

60313H-20FM
13MM 3X GEN3SYS HLD 20MM FLG
GEN3SYS® Holder






Product Specifications
Type of ProductReplaceable Drill Body
Series13
Minimum diameter inch0.5118
Minimum diameter mm13
Maximum diameter inch0.5511
Maximum diameter mm13.99
Drill depth mm42
Body length mm69.3
Overall length mm119.3
Shank diameter mm20
Shank length mm50
Shank typeFlanged
Tool Reference Length mm71.5
Flute TypeHelical
Length Type3xD
FlatYes
Coolant Inlet Style RearTSC
Pipe tap rear mm1/8 (BSP)
Deep Hole GuidelinesNo
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.4
CategoryStocked
