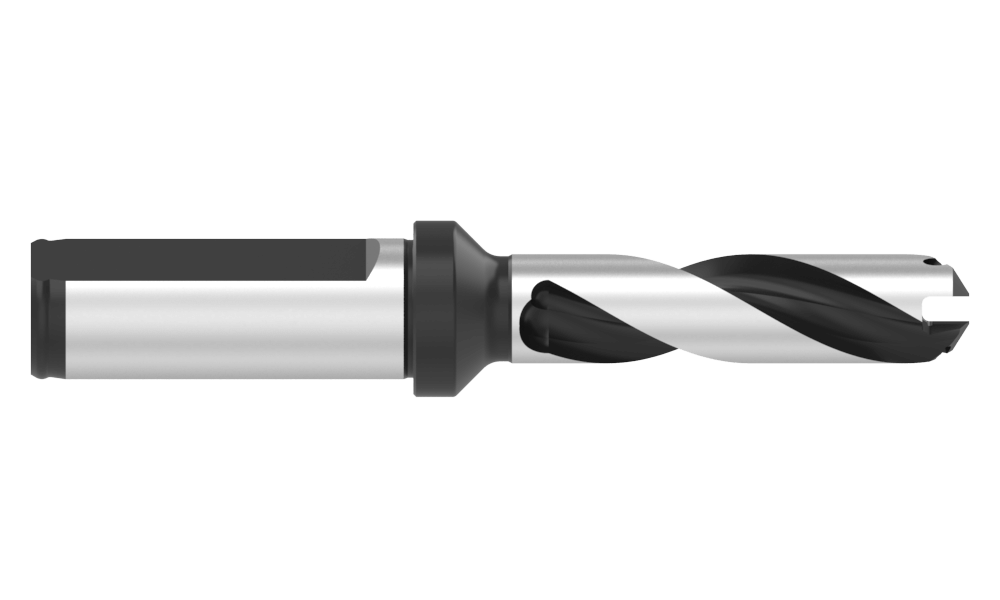

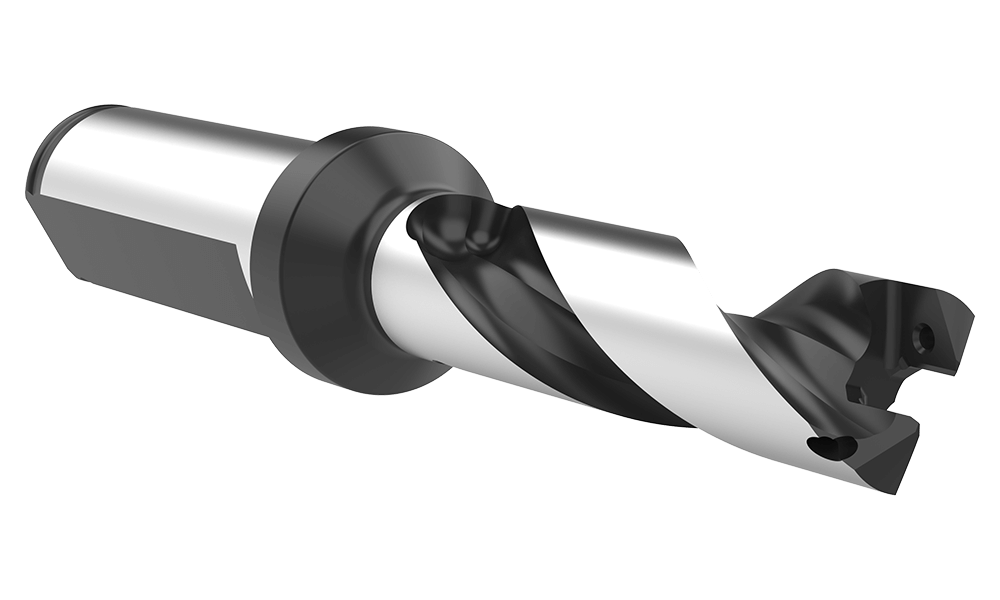

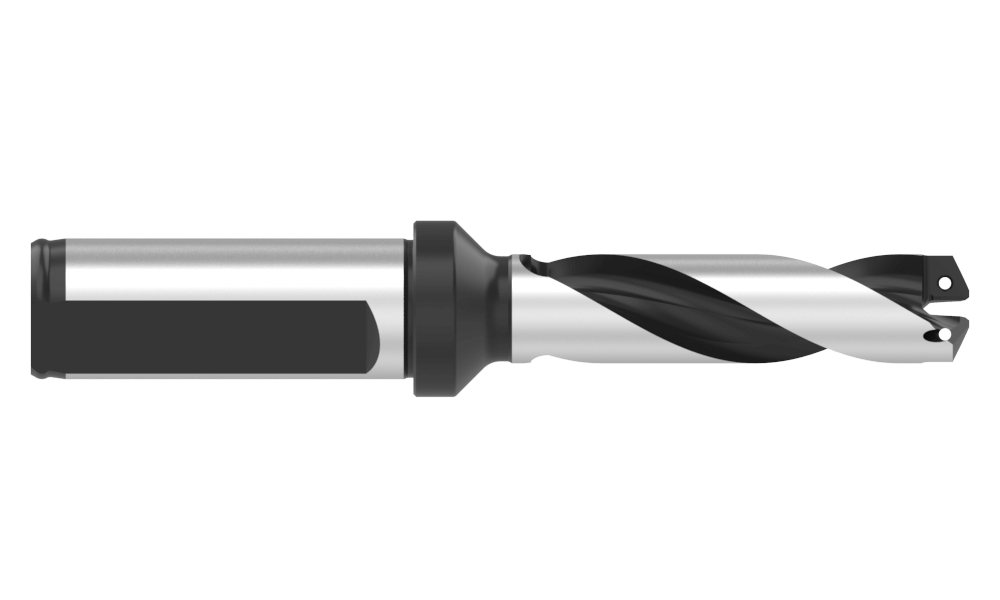

60315H-20FM
15MM 3X GEN3SYS HLD 20MM FLG
GEN3SYS® Holder






Product Specifications
Type of ProductReplaceable Drill Body
Series15
Minimum diameter inch0.5906
Minimum diameter mm15
Maximum diameter inch0.6298
Maximum diameter mm15.99
Drill depth mm48
Body length mm75.1
Overall length mm125.1
Shank diameter mm20
Shank length mm50
Shank typeFlanged
Tool Reference Length mm77.6
Flute TypeHelical
Length Type3xD
FlatYes
Coolant Inlet Style RearTSC
Pipe tap rear mm1/8 (BSP)
Deep Hole GuidelinesNo
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.44
CategoryStocked
