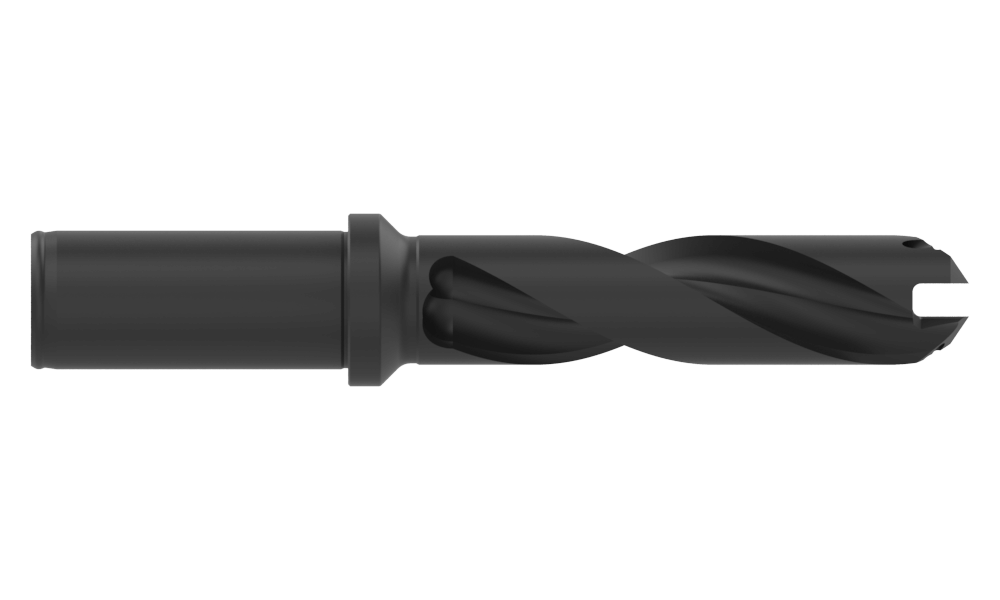

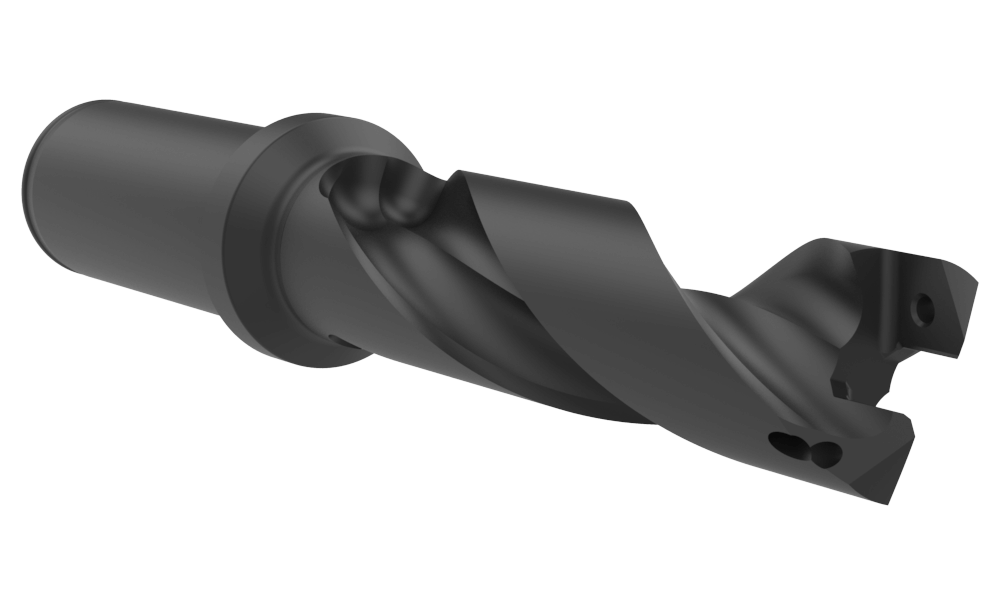

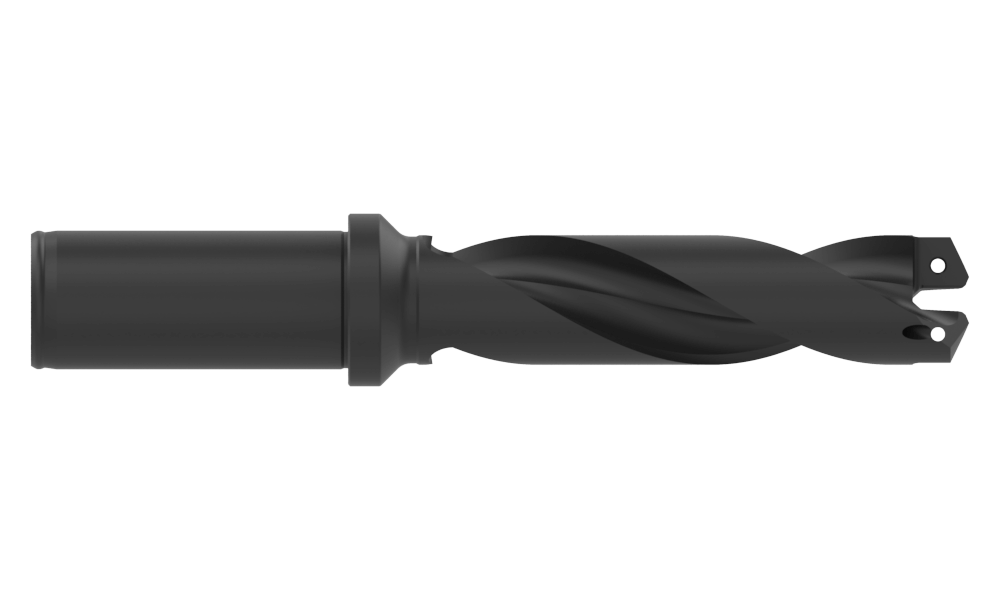

| Type of Product | Replaceable Drill Body |
| Series | 24 |
| Minimum diameter inch | 0.9449 |
| Minimum diameter mm | 24 |
| Maximum diameter inch | 1.0235 |
| Maximum diameter mm | 25.99 |
| Drill depth inch | 3-5/64 |
| Body length inch | 4-31/64 |
| Overall length inch | 6-49/64 |
| Shank diameter inch | 1 |
| Shank type | Flanged |
| Flute Type | Helical |
| Length Type | 3xD |
| Flat | No |
| Coolant Inlet Style Rear | TSC |
| Pipe tap rear inch | 1/8 (NPT) |
| Shank length inch | 2-9/32 |
| Tool Reference Length inch | 4-19/32 |
| Deep Hole Guidelines | No |
