60329H-125C
GEN3SYS® Replaceable Drill Body: 1.1416" - 1.2596", 3xD, Cylindrical Shank
GEN3SYS® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

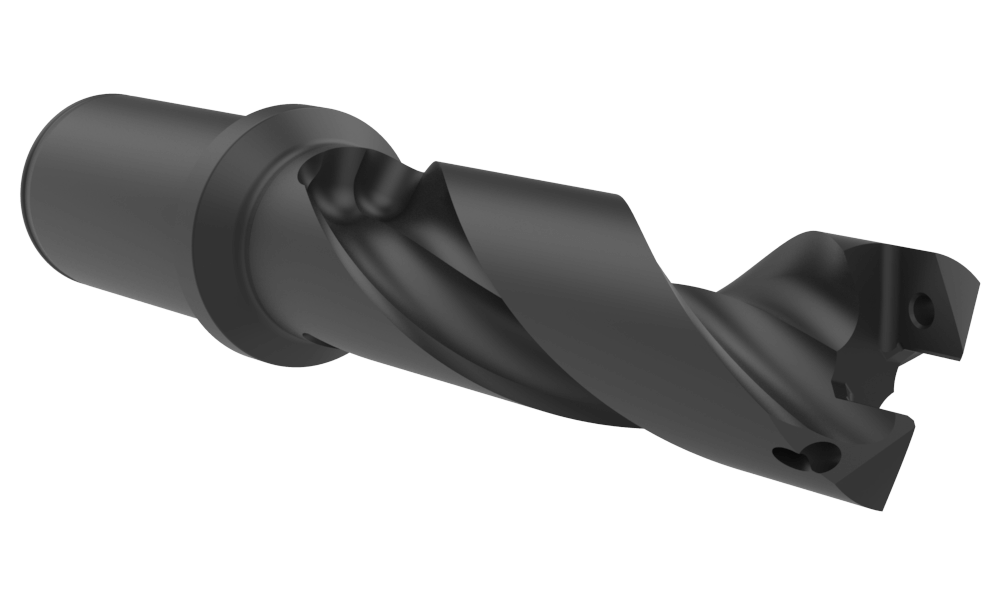

Angle

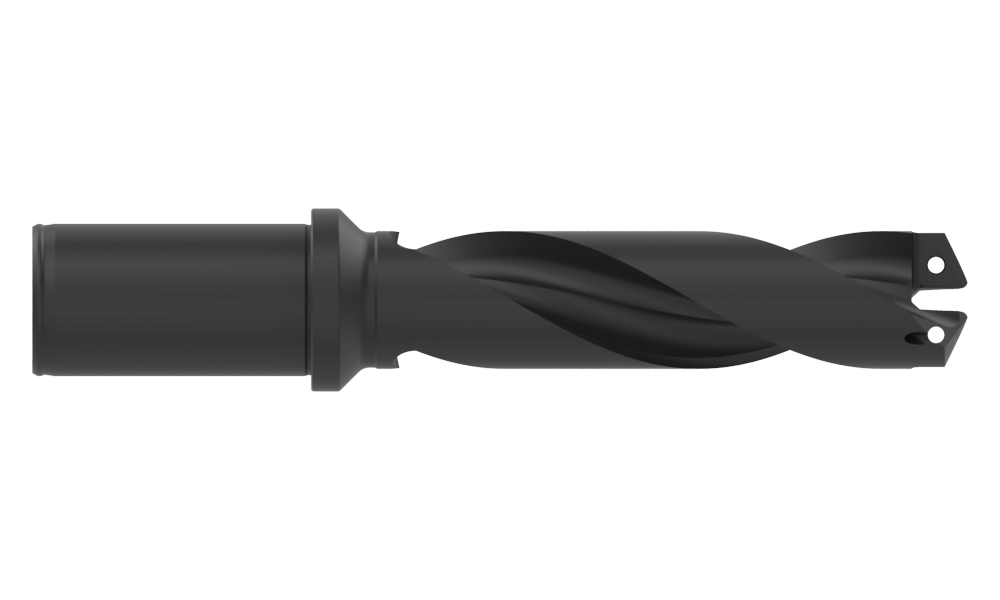

Front

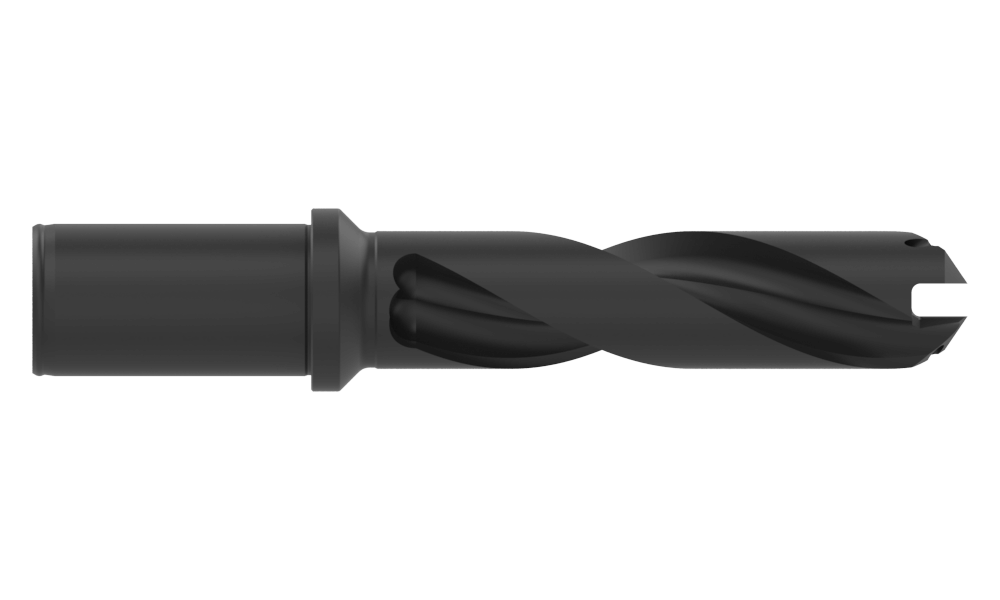

Top
Product Specifications
Series 29
Minimum diameter inch 1.1416
Maximum diameter inch 1.2596
Length Type 3xD
Flute Type Helical
Overall length inch 7.779
Tool Reference Length inch 5.499
Body length inch 5.382
Drill depth inch 3.939
Shank type Cylindrical
Shank diameter inch 1-1/4
Shank length inch 2.280
Pipe tap rear inch 1/4 NPT
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7495-IP15-1 (Qty0)
Replacement GEN3SYS® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-15 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-15
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.78
Weight in kg (each) 0.81
Category Stocked
