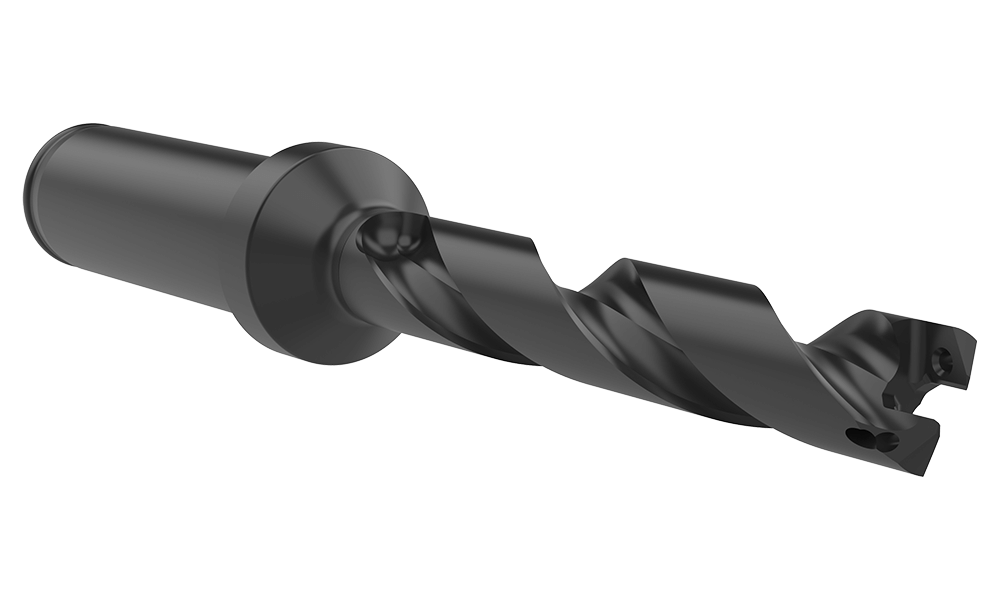

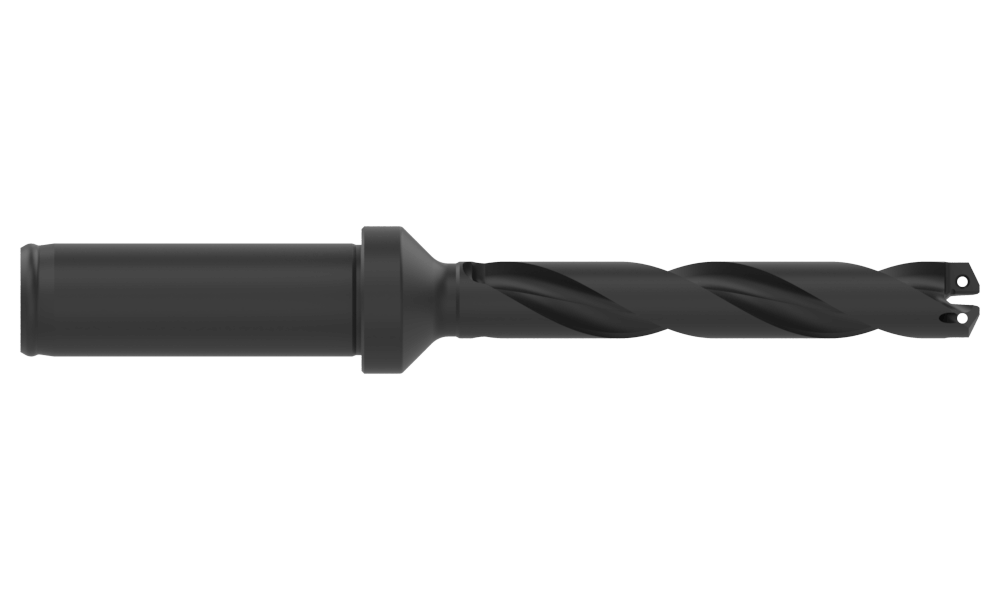

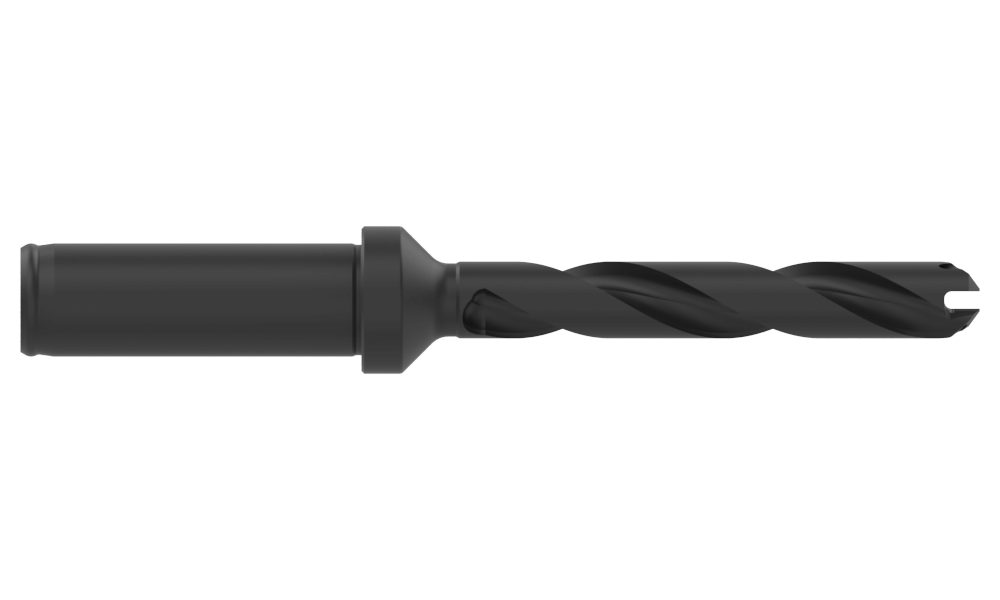

| Type of Product | Replaceable Drill Body |
| Series | 11 |
| Minimum diameter inch | 0.4331 |
| Minimum diameter mm | 11 |
| Maximum diameter inch | 0.4723 |
| Maximum diameter mm | 11.99 |
| Drill depth inch | 2-23/64 |
| Body length inch | 3-13/32 |
| Overall length inch | 5-9/32 |
| Shank diameter inch | 5/8 |
| Shank type | Flanged |
| Flute Type | Helical |
| Length Type | 5xD |
| Flat | No |
| Coolant Inlet Style Rear | TSC |
| Pipe tap rear inch | 1/16 (NPT) |
| Shank length inch | 1-7/8 |
| Tool Reference Length inch | 3-31/64 |
| Deep Hole Guidelines | No |
