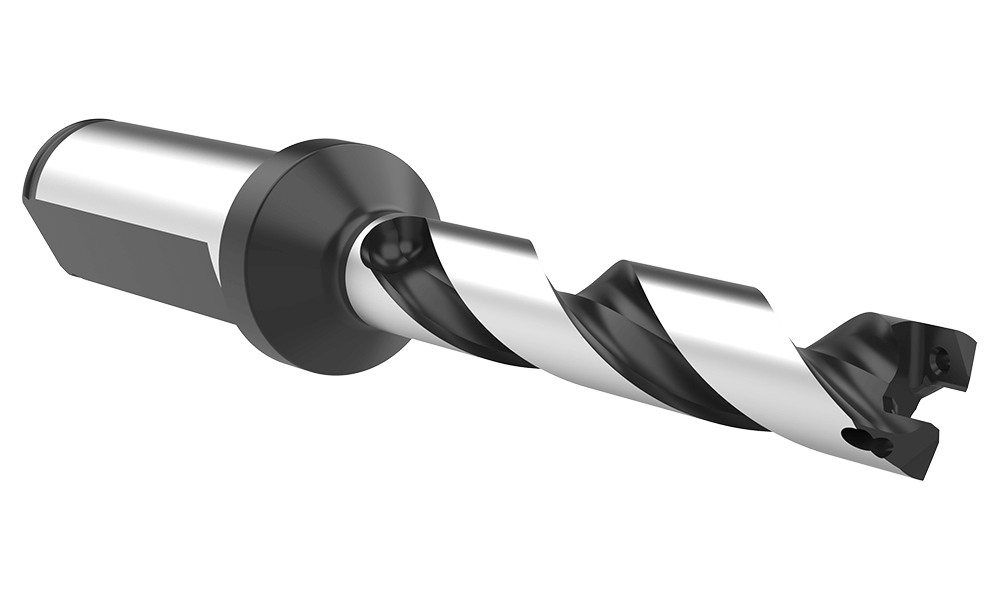

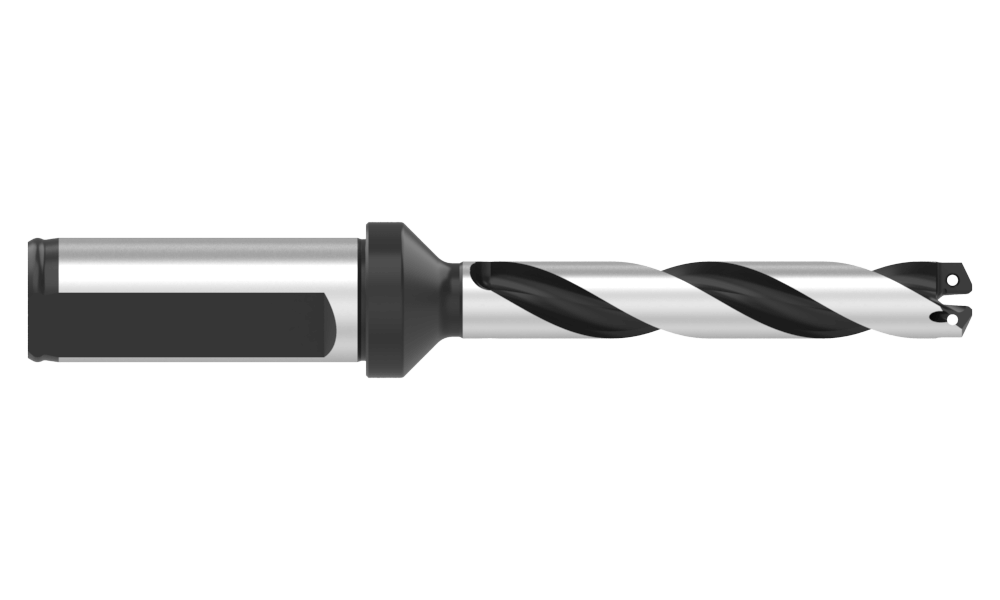

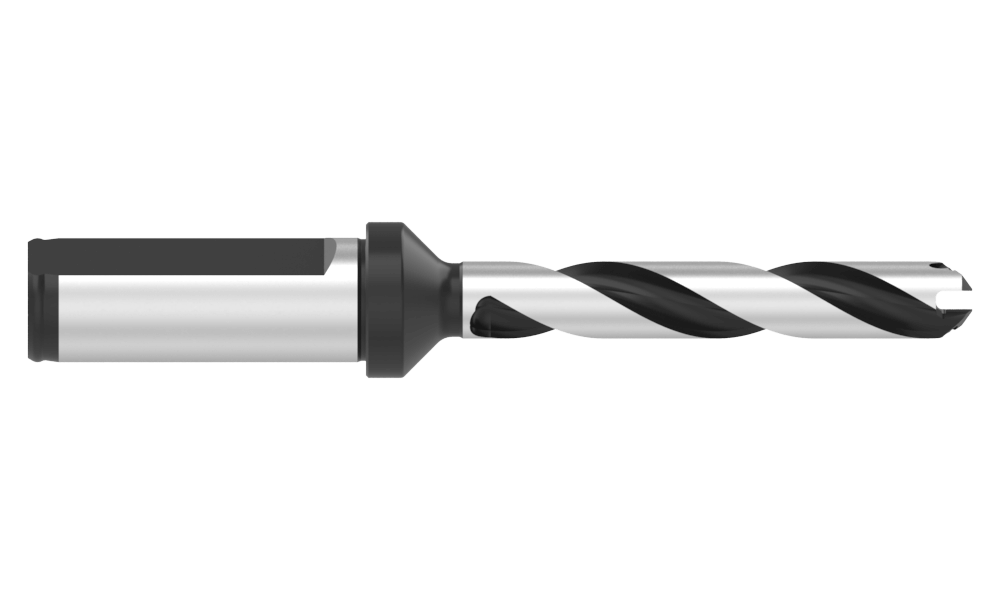

60512H-20FM
12MM 5X GEN3SYS HLD 20MM FLG
GEN3SYS® Holder






Product Specifications
Type of ProductReplaceable Drill Body
Series12
Minimum diameter inch0.4724
Minimum diameter mm12
Maximum diameter inch0.5117
Maximum diameter mm12.99
Drill depth mm64.9
Body length mm92.6
Overall length mm142.6
Shank diameter mm20
Shank length mm50
Shank typeFlanged
Tool Reference Length mm94.8
Flute TypeHelical
Length Type5xD
FlatYes
Coolant Inlet Style RearTSC
Pipe tap rear mm1/8 (BSP)
Deep Hole GuidelinesNo
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.42
CategoryStocked
