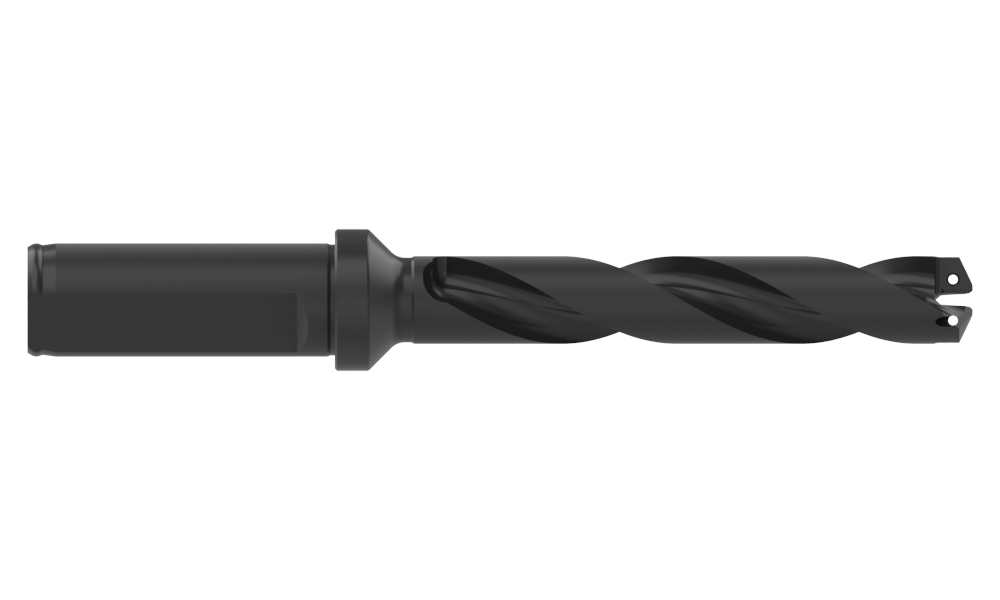

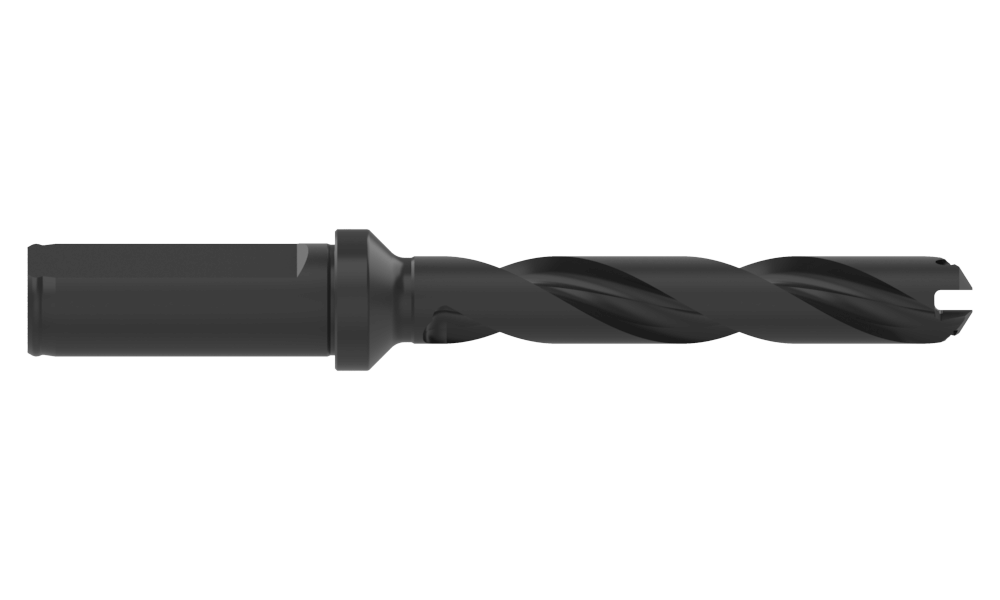

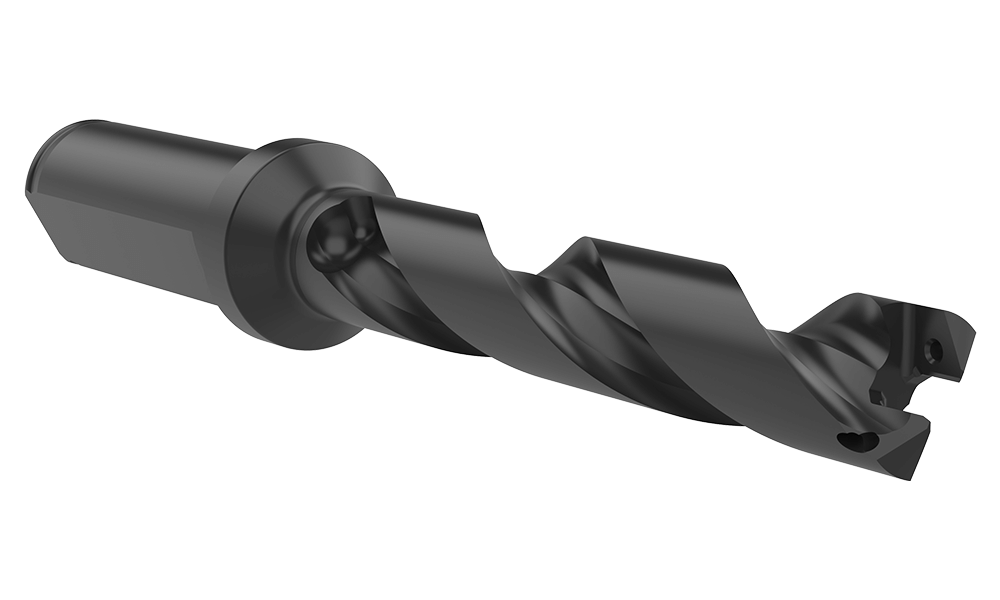

| Type of Product | Replaceable Drill Body |
| Series | 15 |
| Minimum diameter inch | 0.5906 |
| Minimum diameter mm | 15 |
| Maximum diameter inch | 0.6298 |
| Maximum diameter mm | 15.99 |
| Drill depth inch | 3-5/32 |
| Body length inch | 4-7/32 |
| Overall length inch | 6-1/4 |
| Shank diameter inch | 3/4 |
| Shank type | Flanged |
| Flute Type | Helical |
| Length Type | 5xD |
| Flat | Yes |
| Coolant Inlet Style Rear | TSC |
| Pipe tap rear inch | 1/8 (NPT) |
| Shank length inch | 2-1/32 |
| Tool Reference Length inch | 4-5/16 |
| Deep Hole Guidelines | No |
