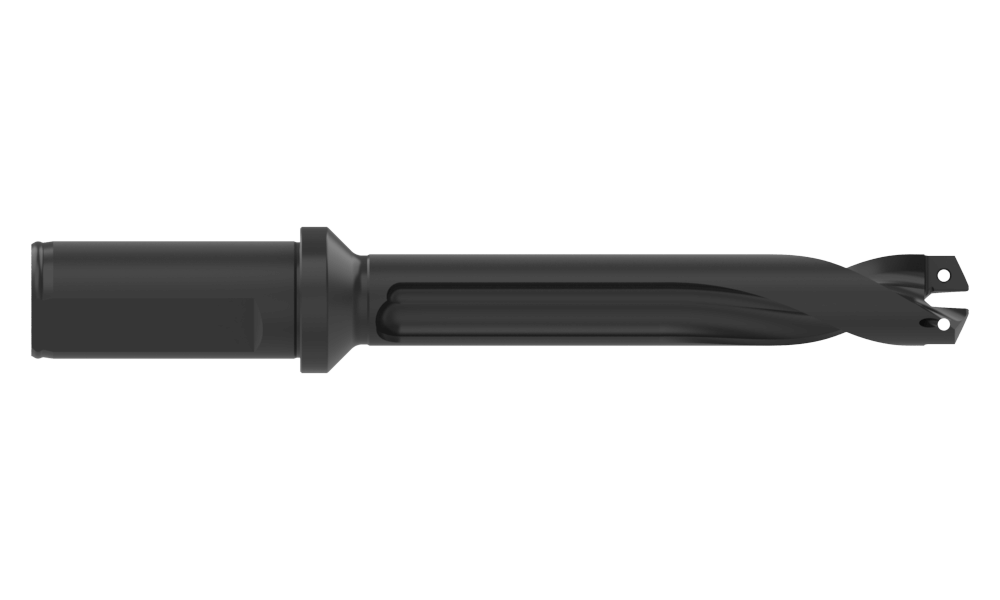

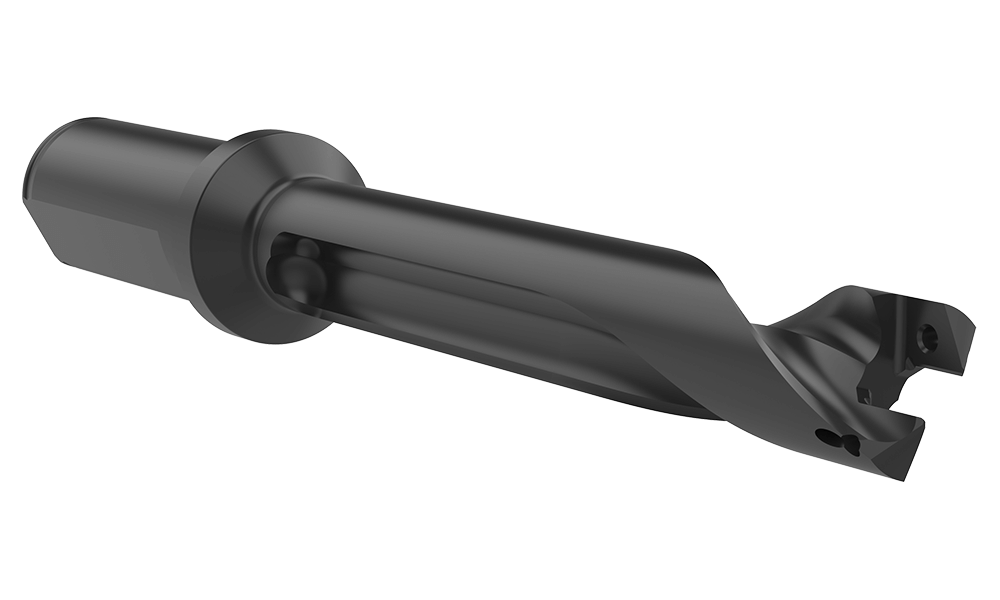

| Type of Product | Replaceable Drill Body |
| Series | 20 |
| Minimum diameter inch | 0.7874 |
| Minimum diameter mm | 20 |
| Maximum diameter inch | 0.866 |
| Maximum diameter mm | 21.99 |
| Drill depth inch | 4-11/32 |
| Body length inch | 5-11/16 |
| Overall length inch | 7-61/64 |
| Shank diameter inch | 1 |
| Shank type | Flanged |
| Flute Type | Straight |
| Length Type | 5xD |
| Flat | Yes |
| Coolant Inlet Style Rear | TSC |
| Pipe tap rear inch | 1/8 (NPT) |
| Shank length inch | 2-9/32 |
| Tool Reference Length inch | 5-25/32 |
| Deep Hole Guidelines | No |
