60532H-150C
GEN3SYS® Replaceable Drill Body: 1.2597" - 1.3781", 5xD, Cylindrical Shank
GEN3SYS® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

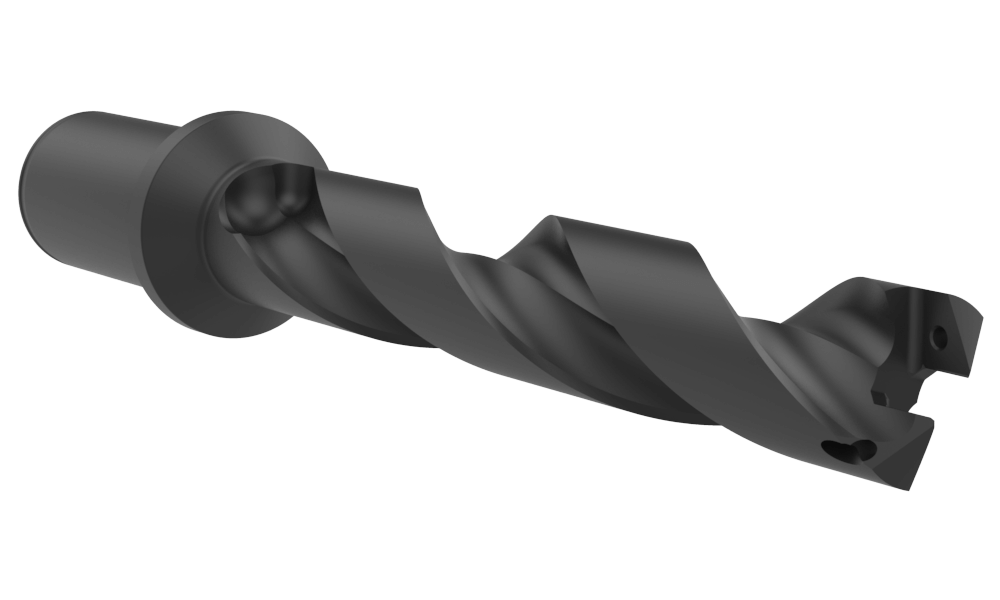

Angle

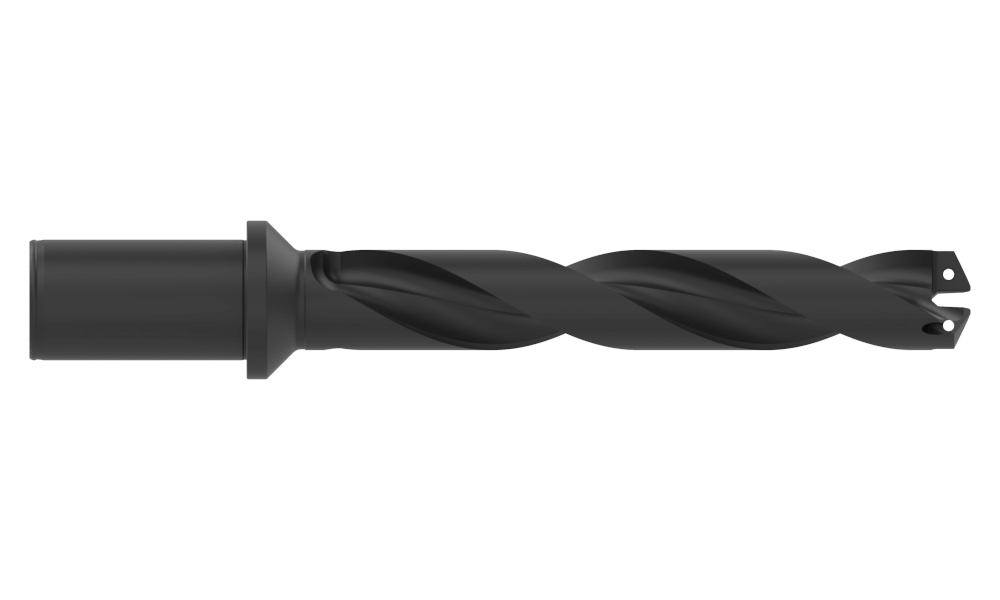

Front

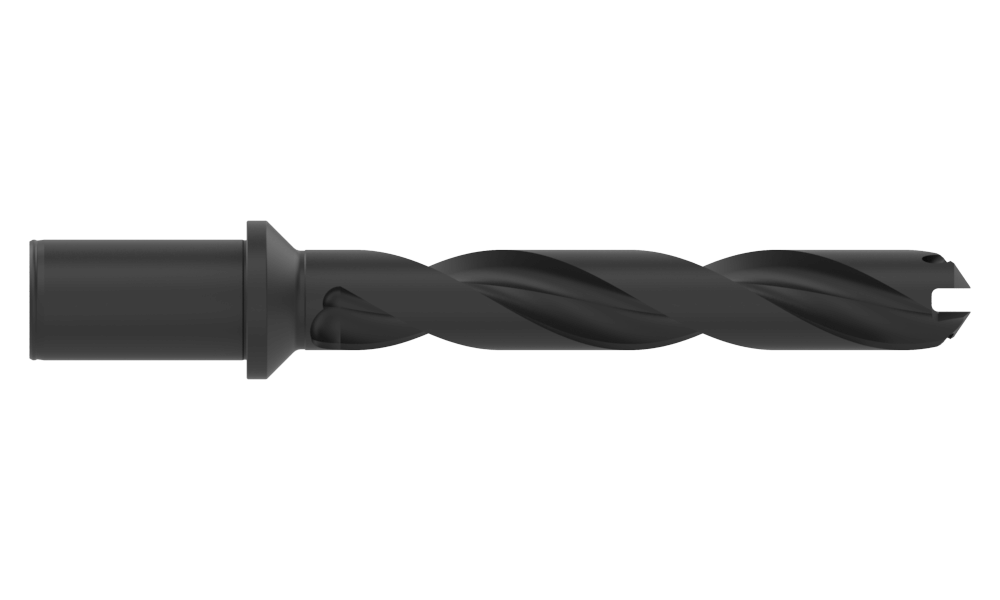

Top
Product Specifications
Series 32
Minimum Diameter (inch) 1.2597
Maximum Diameter (inch) 1.3781
Length Type 5xD
Flute Type Helical
Overall Length (inch) 11.793
Tool Reference Length (inch) 9.105
Body Length (inch) 8.965
Drill Depth (inch) 7.133
Shank Type Cylindrical
Shank Diameter (inch) 1-1/2
Shank Length (inch) 2.688
Pipe Tap Rear (inch) 1/4 NPT
Deep Hole Guidelines (Yes/No) No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7495-IP15-1 (Qty0)
Replacement GEN3SYS® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-15 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-15
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 3.48
Weight in kg (each) 1.58
Category Stocked
