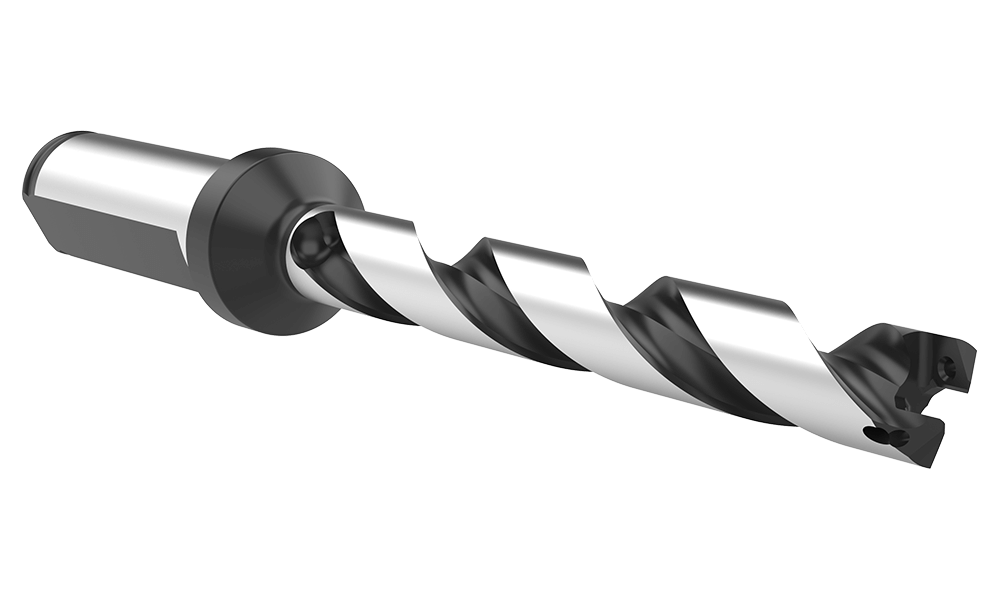

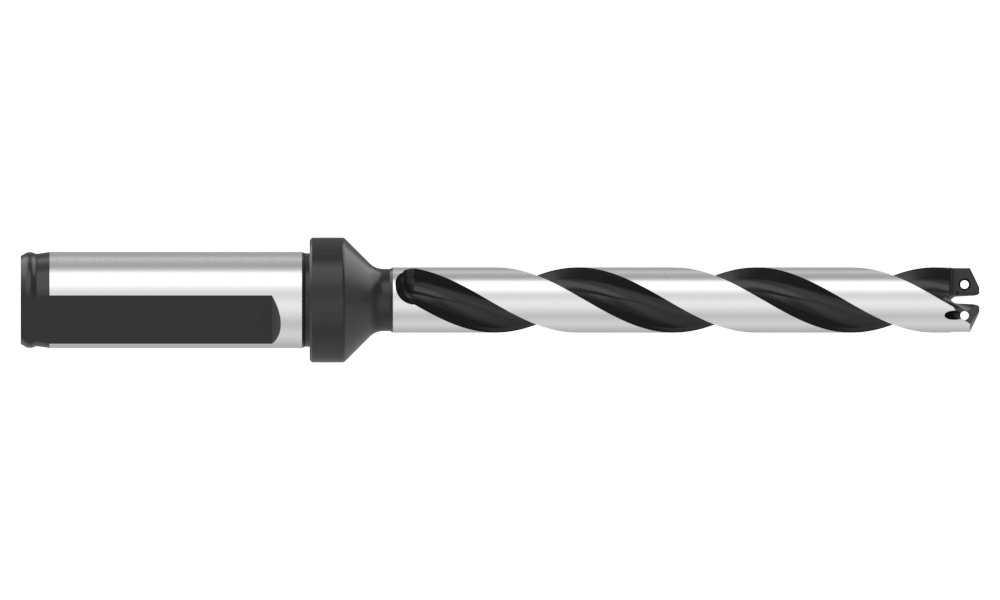

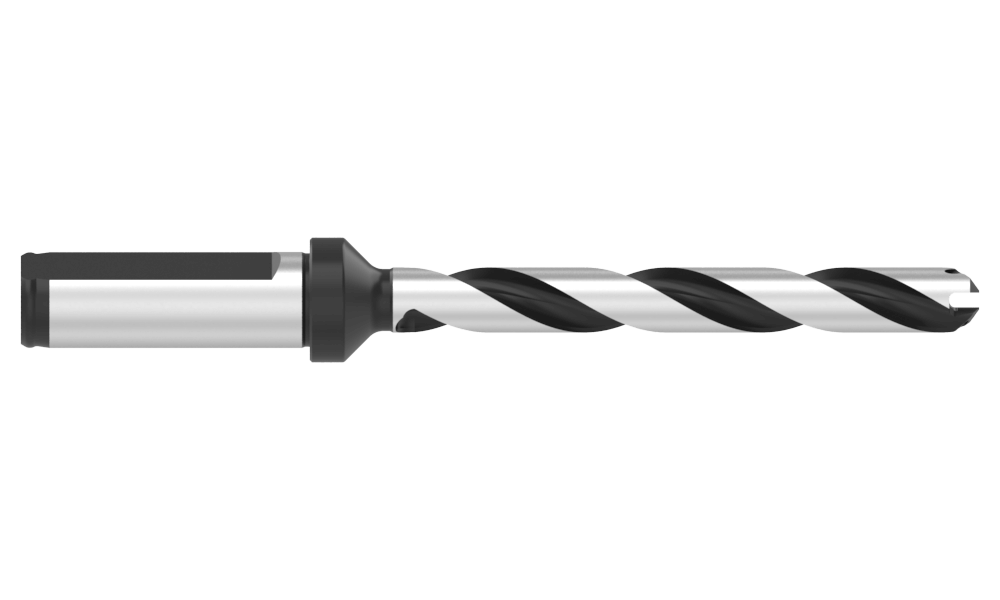

60711H-16FM
11MM 7X GEN3SYS HLD 16MM FLG
GEN3SYS® Holder






Product Specifications
Type of ProductReplaceable Drill Body
Series11
Minimum diameter inch0.4331
Minimum diameter mm11
Maximum diameter inch0.4723
Maximum diameter mm11.99
Drill depth mm83.9
Body length mm110.6
Overall length mm158.6
Shank diameter mm16
Shank length mm48
Shank typeFlanged
Tool Reference Length mm112.6
Flute TypeHelical
Length Type7xD
FlatYes
Coolant Inlet Style RearTSC
Pipe tap rear mm1/16 (BSP)
Deep Hole GuidelinesNo


Related Items
71843-IP6-1     (Qty: 0)
Replacement GEN3SYS® Screw
#11 KIT (1) TORX PLUS, M1,8 X
8IP-6     (Qty: 0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-6
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.3
CategoryStocked
