60714S-20FM
GEN3SYS® Replaceable Drill Body: (14.00 mm - 14.99 mm), 7xD, Flanged Shank
GEN3SYS® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

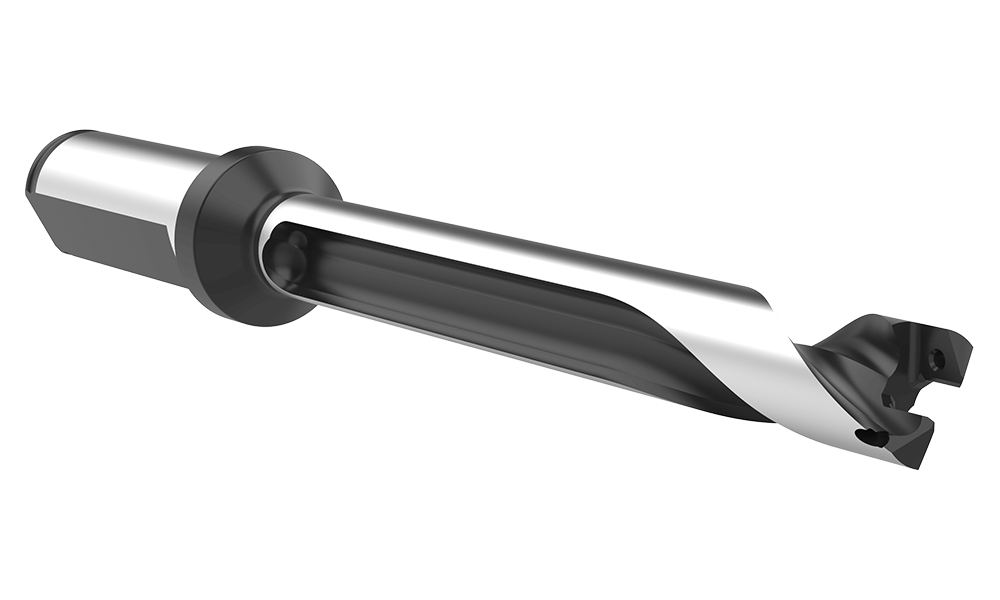

Angle

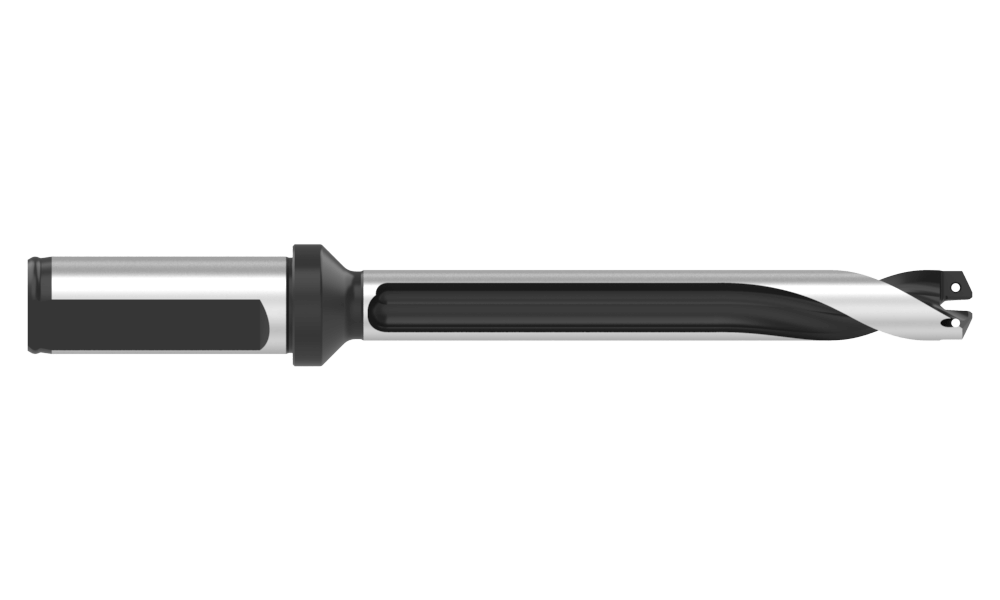

Front

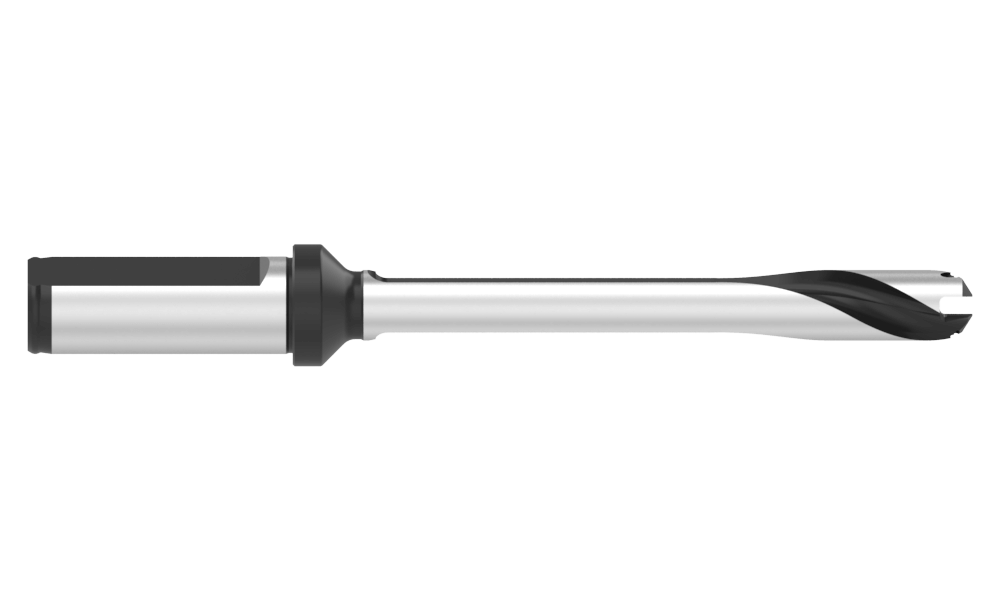

Top
Product Specifications
Series 14
Minimum diameter mm 14.00
Maximum diameter mm 14.99
Length Type 7xD
Flute Type Straight
Overall length mm 184.9
Tool Reference Length mm 134.9
Body length mm 132.4
Drill depth mm 105.0
Shank type Flanged
Shank diameter mm 20
Shank length mm 50.0
Pipe tap rear mm 1/8 BSPT
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7247-IP7-1 (Qty0)
Replacement GEN3SYS® Screw
Z KIT (1) TORX PLUS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-7 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-7
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.51
Weight in kg (each) 0.23
Category Stocked
