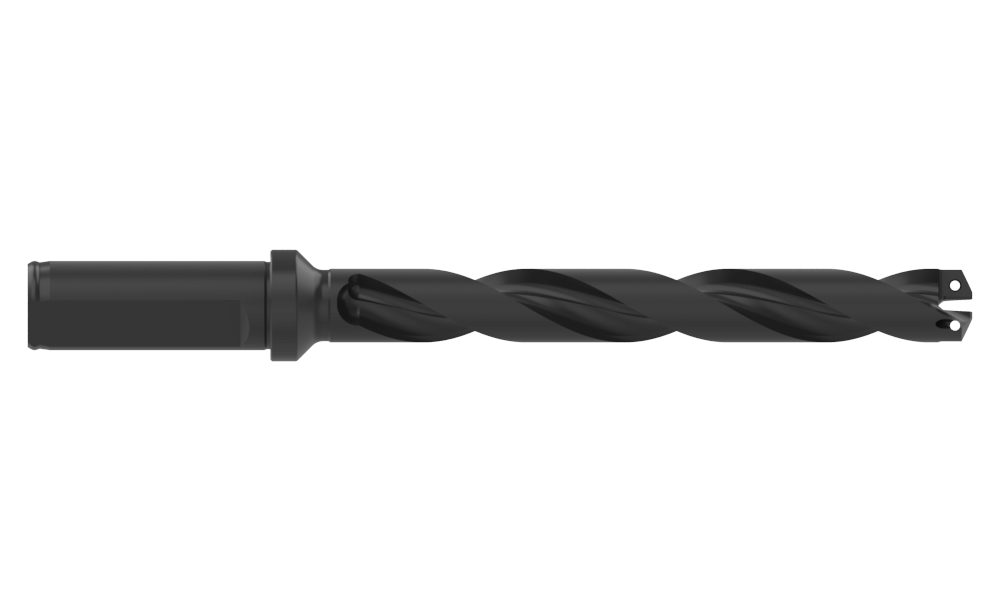

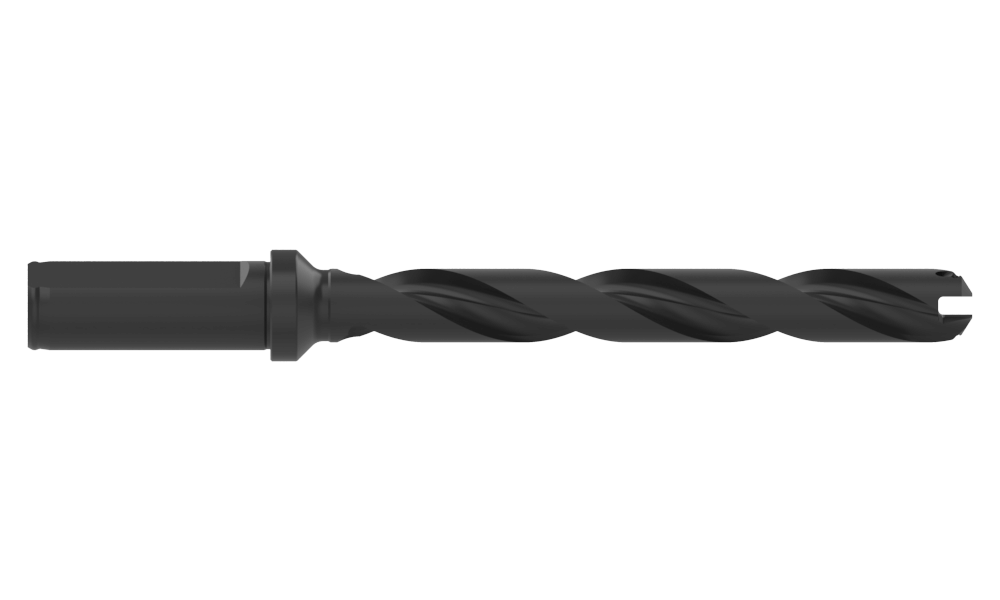

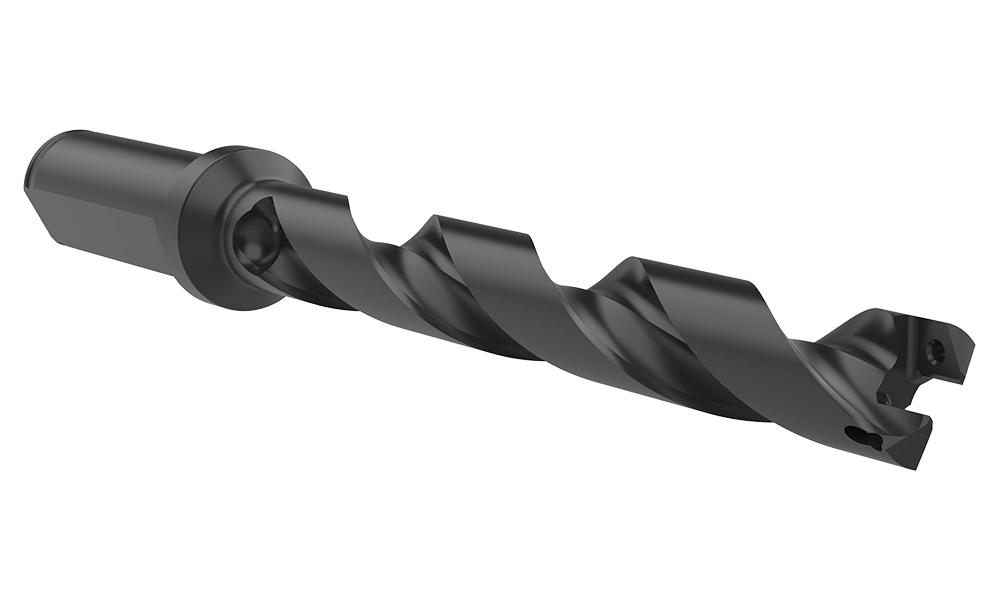

| Type of Product | Replaceable Drill Body |
| Series | 16 |
| Minimum diameter inch | 0.6299 |
| Minimum diameter mm | 16 |
| Maximum diameter inch | 0.6692 |
| Maximum diameter mm | 16.99 |
| Drill depth inch | 4-11/16 |
| Body length inch | 5-29/32 |
| Overall length inch | 7-29/32 |
| Shank diameter inch | 3/4 |
| Shank type | Flanged |
| Flute Type | Helical |
| Length Type | 7xD |
| Flat | Yes |
| Coolant Inlet Style Rear | TSC |
| Pipe tap rear inch | 1/8 (NPT) |
| Shank length inch | 2-1/32 |
| Tool Reference Length inch | 6 |
| Deep Hole Guidelines | No |
