60716H-20FM
16MM 7X GEN3SYS HLD 20MM FLG

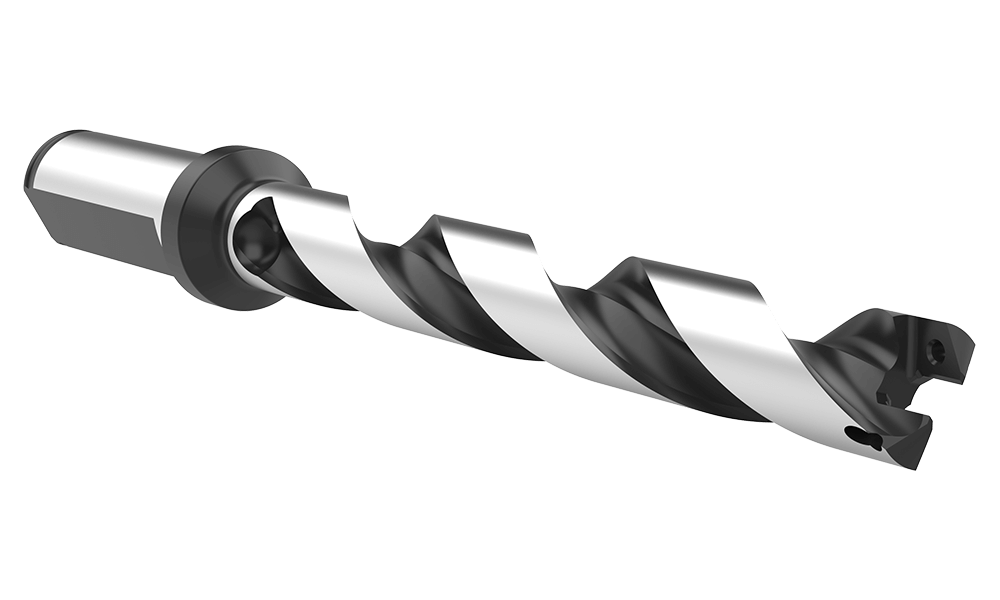

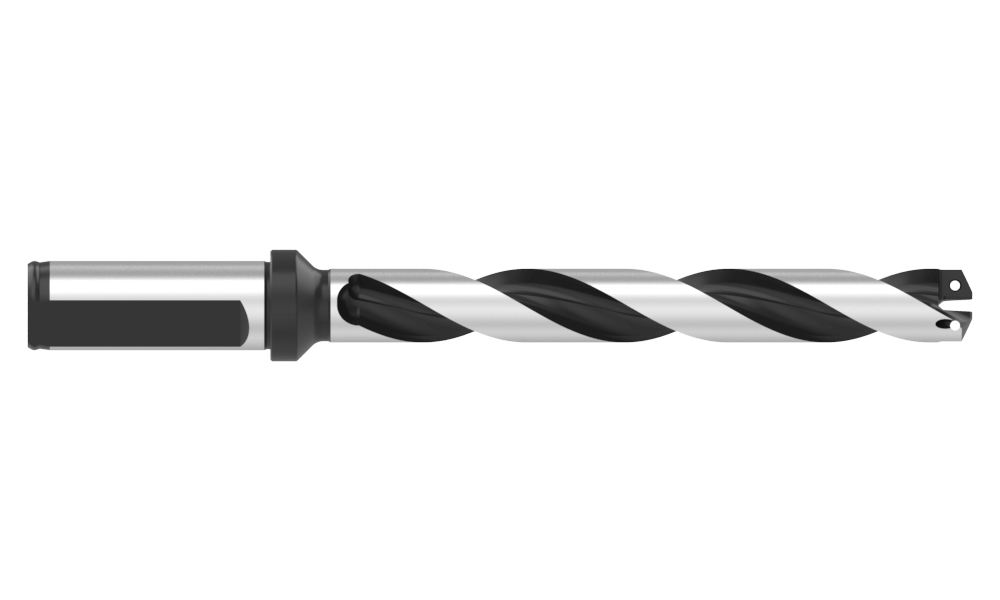

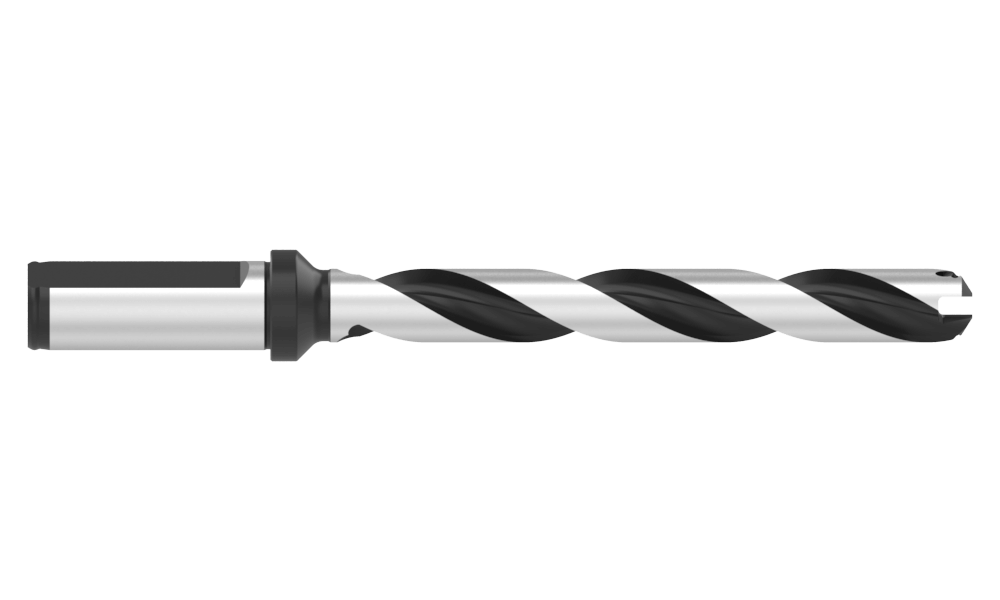

GEN3SYS® Holder






Product Specifications
Type of ProductReplaceable Drill Body
Series16
Minimum diameter inch0.6299
Minimum diameter mm16
Maximum diameter inch0.6692
Maximum diameter mm16.99
Drill depth mm118.9
Body length mm149.3
Overall length mm199.3
Shank diameter mm20
Shank length mm50
Shank typeFlanged
Tool Reference Length mm152.2
Flute TypeHelical
Length Type7xD
FlatYes
Coolant Inlet Style RearTSC
Pipe tap rear mm1/8 (BSP)
Deep Hole GuidelinesNo
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.6
CategoryStocked
