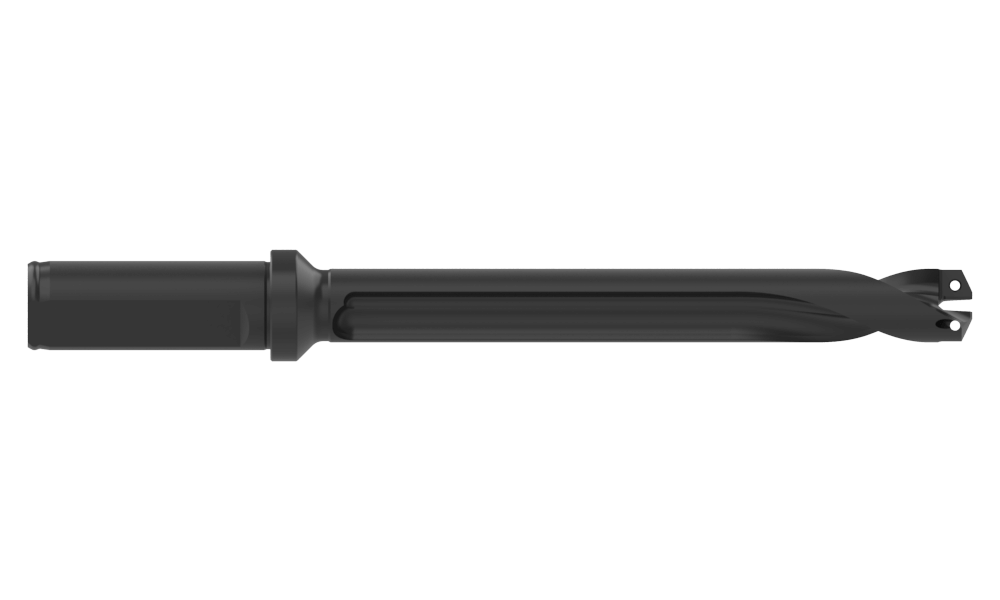

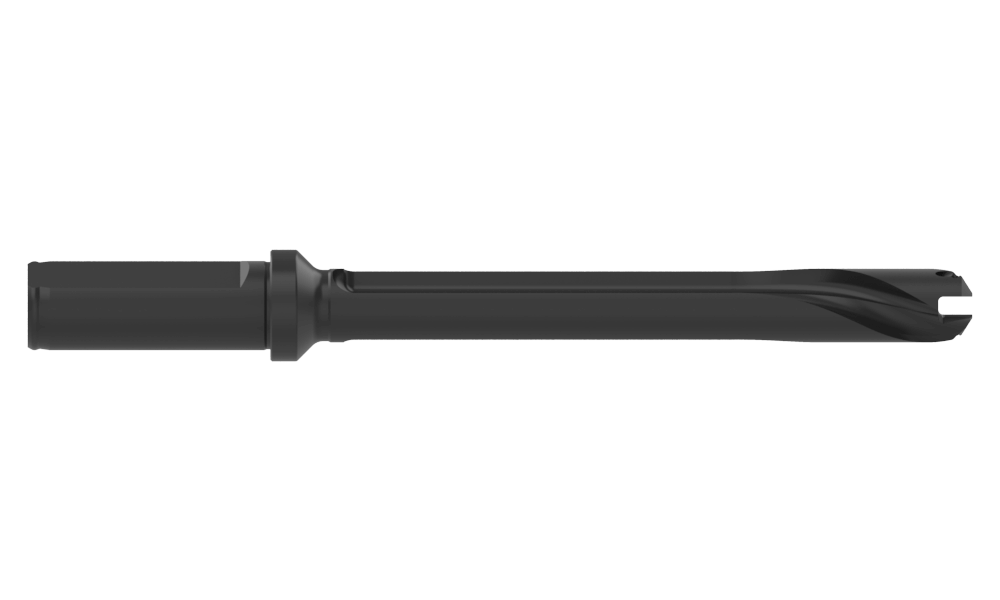

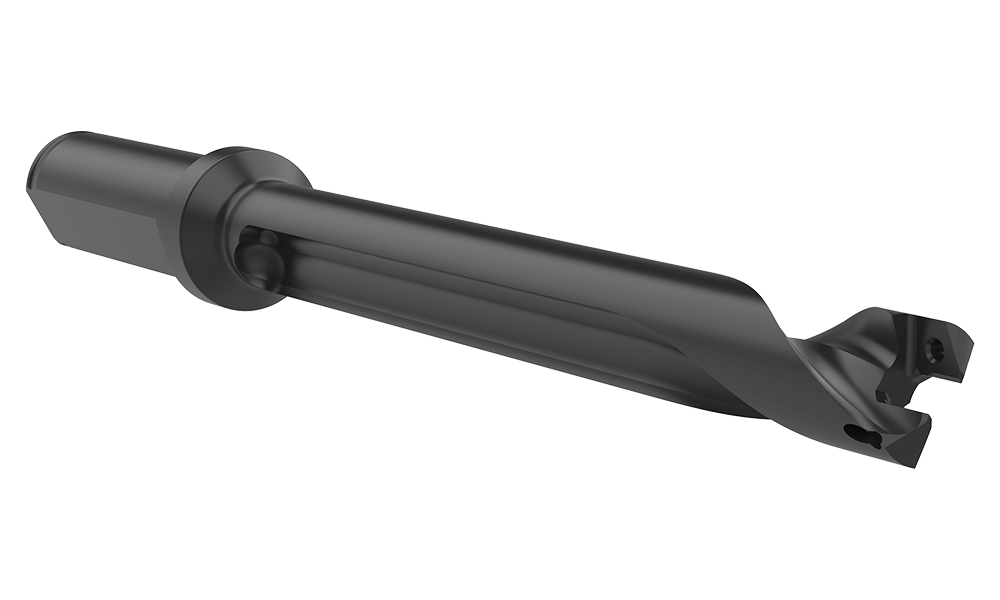

Type of Product | Replaceable Drill Body |
Series | 16 |
Minimum diameter inch | 0.6299 |
Minimum diameter mm | 16 |
Maximum diameter inch | 0.6692 |
Maximum diameter mm | 16.99 |
Drill depth inch | 4-11/16 |
Body length inch | 5-29/32 |
Overall length inch | 7-29/32 |
Shank diameter inch | 3/4 |
Shank type | Flanged |
Flute Type | Straight |
Length Type | 7xD |
Flat | Yes |
Coolant Inlet Style Rear | TSC |
Pipe tap rear inch | 1/8 (NPT) |
Shank length inch | 2-1/32 |
Tool Reference Length inch | 6 |
Deep Hole Guidelines | No |
