60717S-075F
GEN3SYS® Replaceable Drill Body: 0.6691" - 0.7084", 7xD, Flanged Shank
GEN3SYS® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

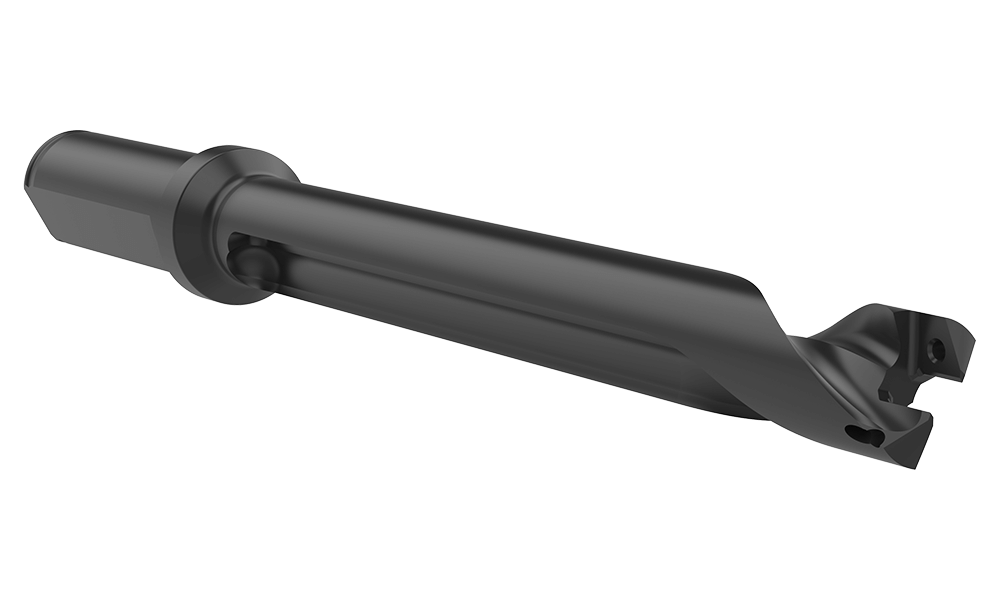

Angle

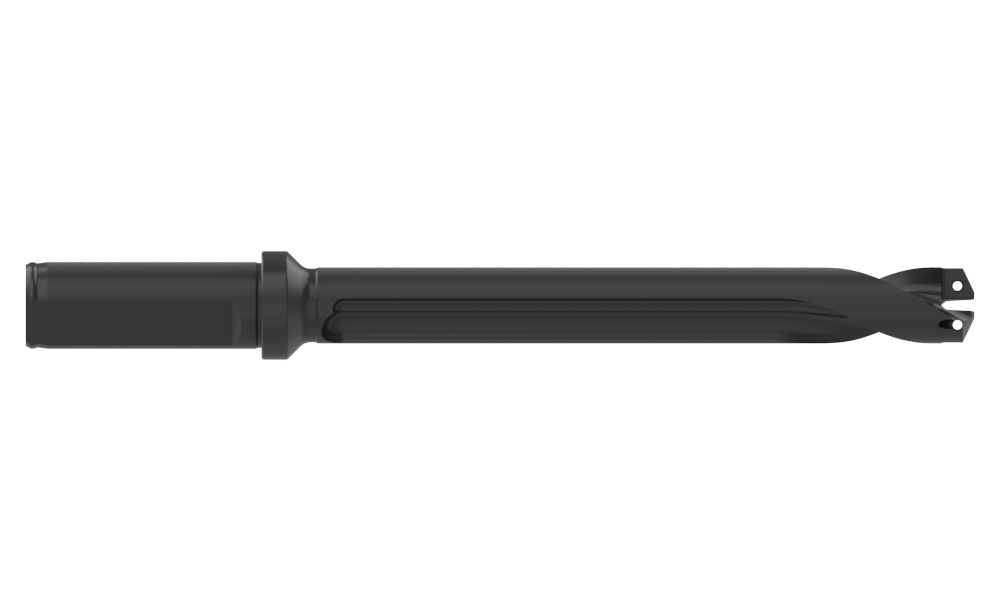

Front

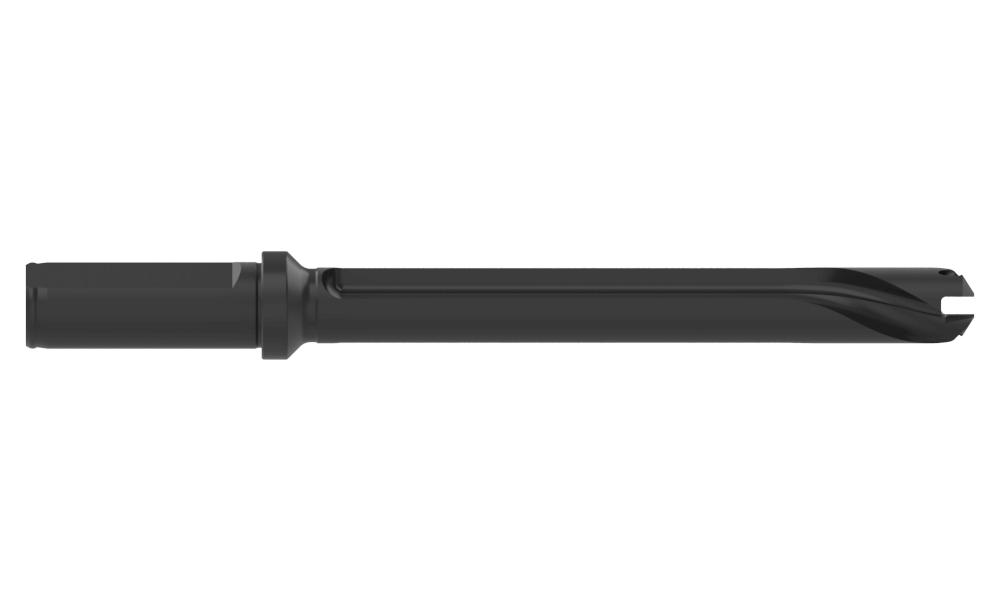

Top
Product Specifications
Series 17
Minimum Diameter (inch) 0.6691
Maximum Diameter (inch) 0.7084
Length Type 7xD
Flute Type Straight
Overall Length (inch) 8.284
Tool Reference Length (inch) 6.254
Body Length (inch) 6.140
Drill Depth (inch) 4.959
Shank Type Flanged
Shank Diameter (inch) 3/4
Shank Length (inch) 2.030
Pipe Tap Rear (inch) 1/8 NPT
Deep Hole Guidelines (Yes/No) No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 72567-IP8-1 (Qty0)
Replacement GEN3SYS® Screw
0.5 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-8 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-8
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.63
Weight in kg (each) 0.29
Category Stocked
