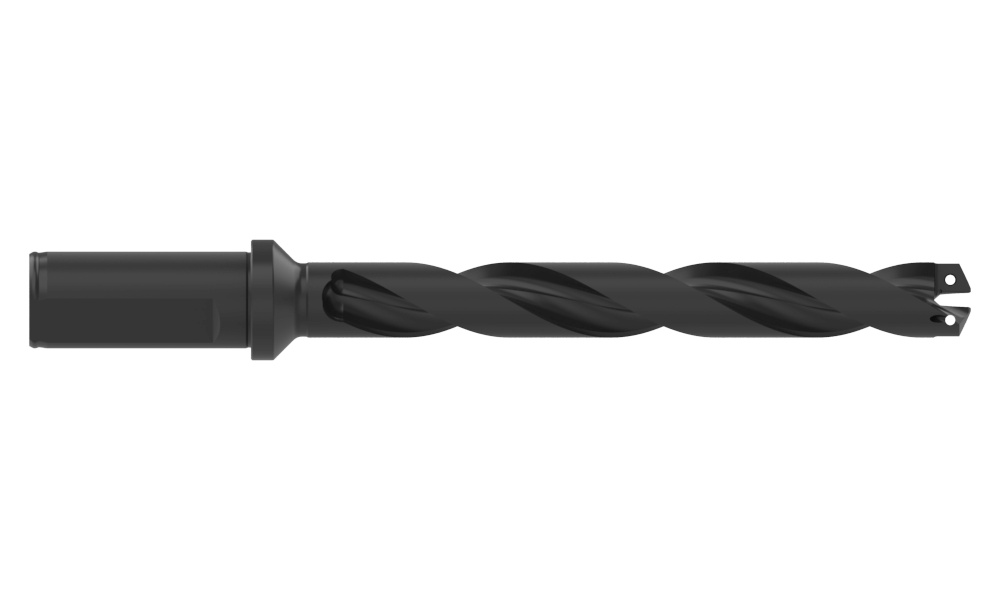

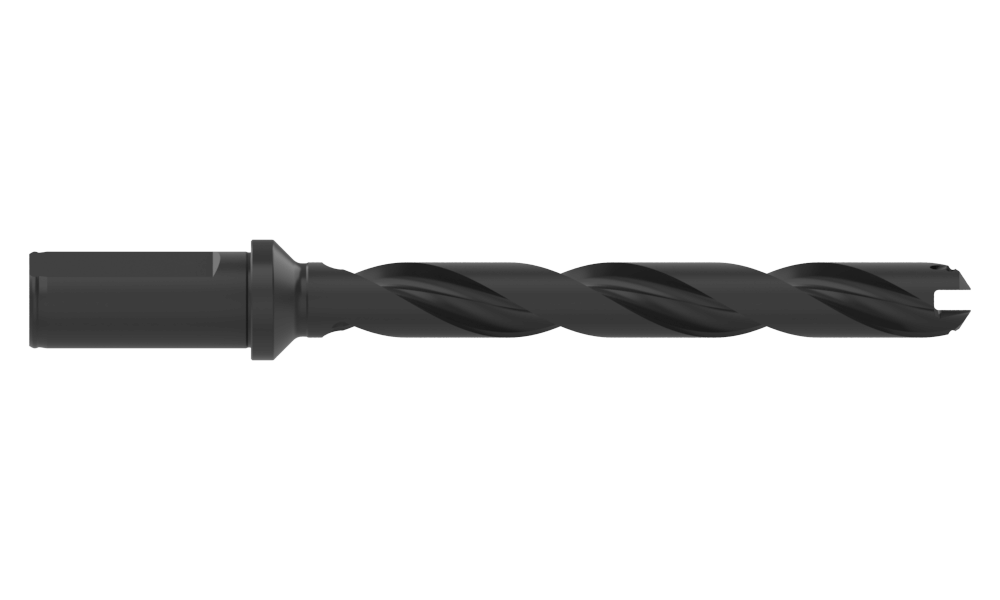

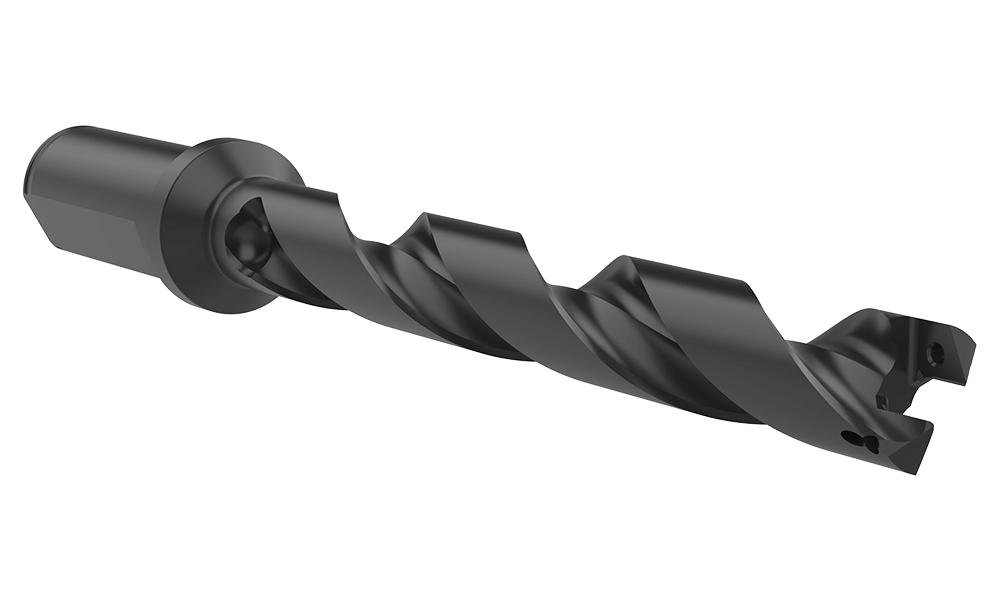

Type of Product | Replaceable Drill Body |
Series | 20 |
Minimum diameter inch | 0.7874 |
Minimum diameter mm | 20 |
Maximum diameter inch | 0.8660 |
Maximum diameter mm | 21.99 |
Drill depth inch | 6-1/16 |
Body length inch | 7-13/32 |
Overall length inch | 9-11/16 |
Shank diameter inch | 1 |
Shank type | Flanged |
Flute Type | Helical |
Length Type | 7xD |
Flat | Yes |
Coolant Inlet Style Rear | TSC |
Pipe tap rear inch | 1/8 (NPT) |
Shank length inch | 2-9/32 |
Tool Reference Length inch | 7-33/64 |
Deep Hole Guidelines | No |
