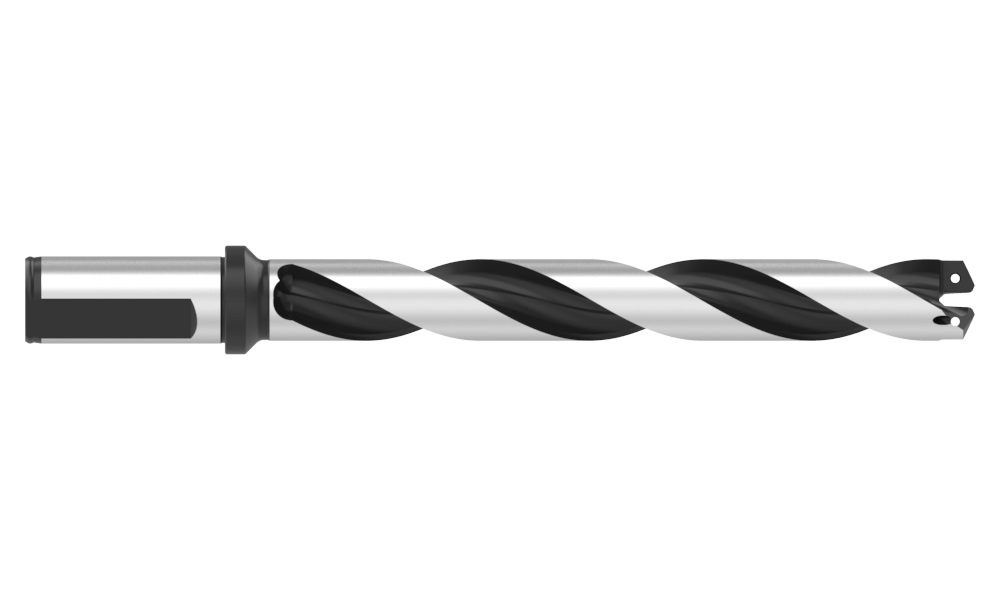

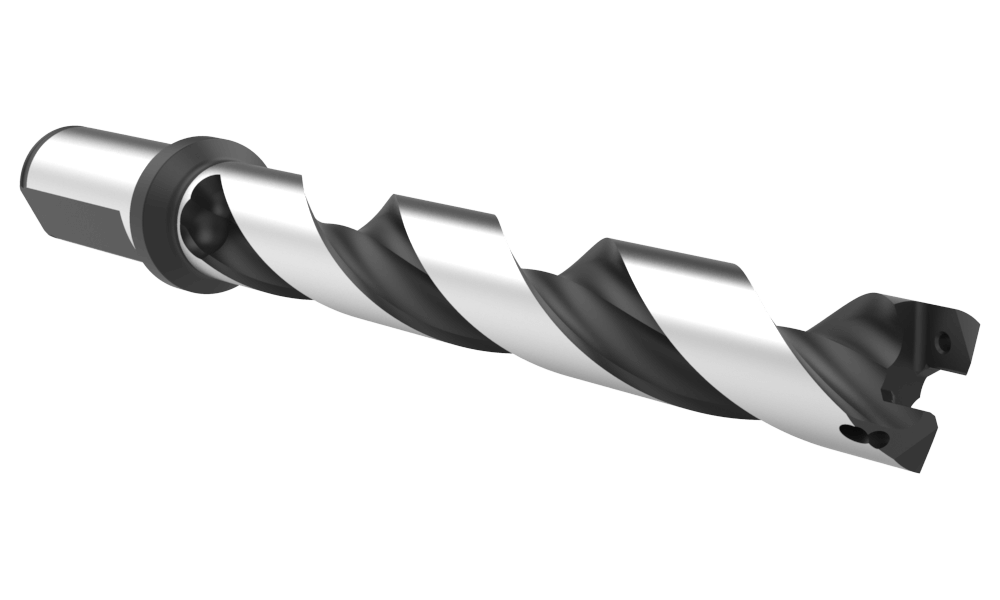

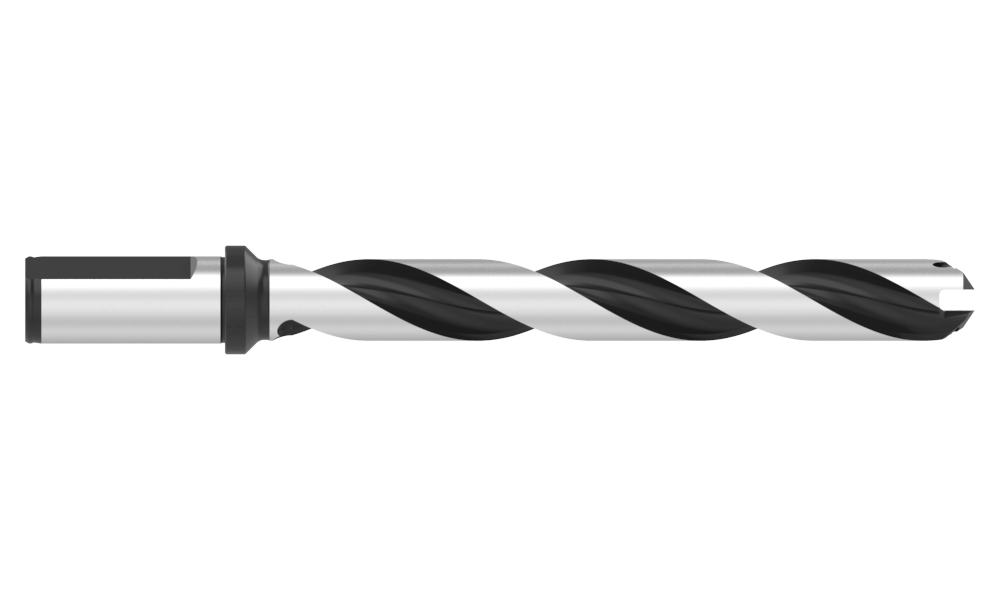

60724H-25FM
24MM 7X GEN3SYS HLD 25MM FLG
GEN3SYS® Holder






Product Specifications
Type of ProductReplaceable Drill Body
Series24
Minimum diameter inch0.9449
Minimum diameter mm24
Maximum diameter inch1.0235
Maximum diameter mm25.99
Drill depth mm181.9
Body length mm217.8
Overall length mm273.8
Shank diameter mm25
Shank length mm56
Shank typeFlanged
Tool Reference Length mm220.7
Flute TypeHelical
Length Type7xD
FlatYes
Coolant Inlet Style RearTSC
Pipe tap rear mm1/8 (BSP)
Deep Hole GuidelinesNo
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)1.52
CategoryStocked
