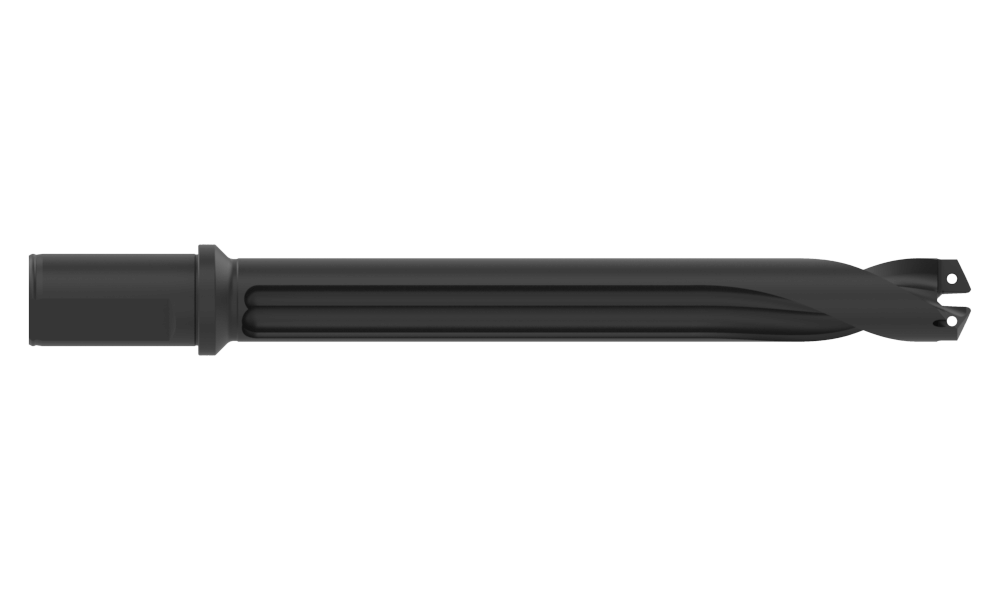

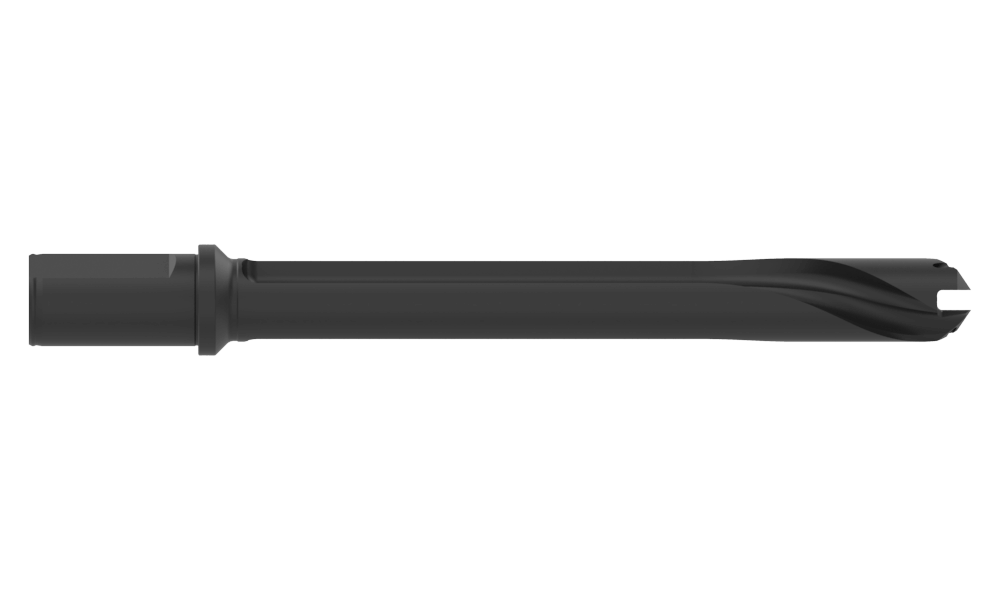

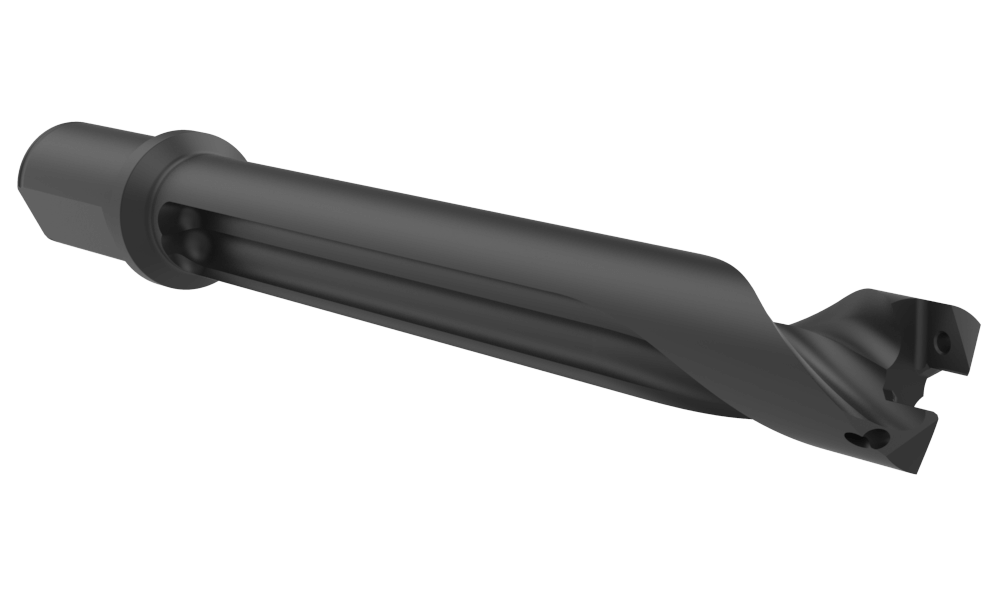

Type of Product | Replaceable Drill Body |
Series | 29 |
Minimum diameter inch | 1.1417 |
Minimum diameter mm | 29 |
Maximum diameter inch | 1.2597 |
Maximum diameter mm | 31.99 |
Drill depth inch | 8-13/16 |
Body length inch | 10-27/64 |
Overall length inch | 12-45/64 |
Shank diameter inch | 1-1/4 |
Shank type | Flanged |
Flute Type | Straight |
Length Type | 7xD |
Flat | Yes |
Coolant Inlet Style Rear | TSC |
Pipe tap rear inch | 1/4 (NPT) |
Shank length inch | 2-9/32 |
Tool Reference Length inch | 10-17/32 |
Deep Hole Guidelines | No |
