60732H-150F
GEN3SYS® Replaceable Drill Body: 1.2597" - 1.3781", 7xD, Flanged Shank
GEN3SYS® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

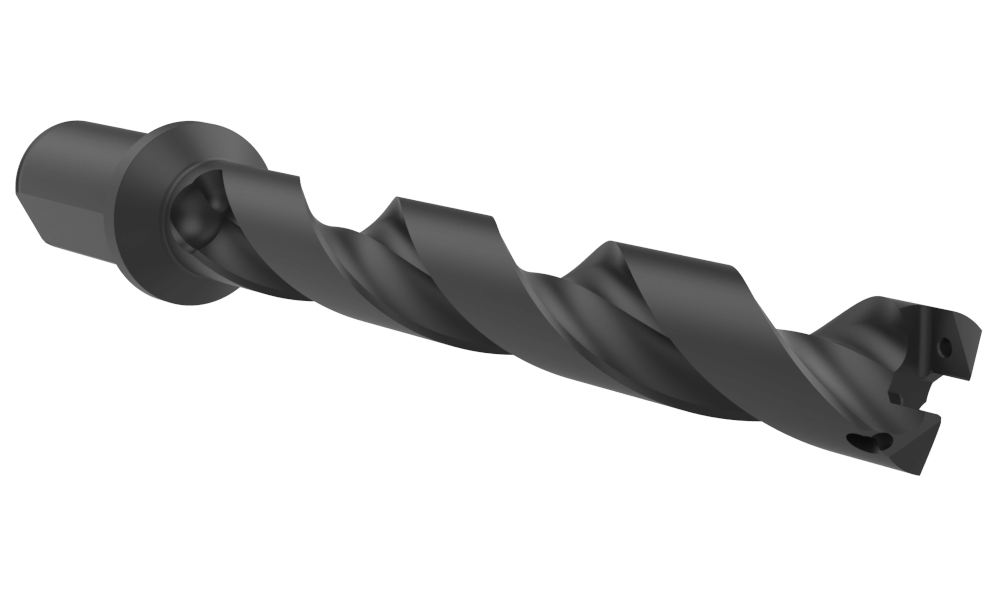

Angle

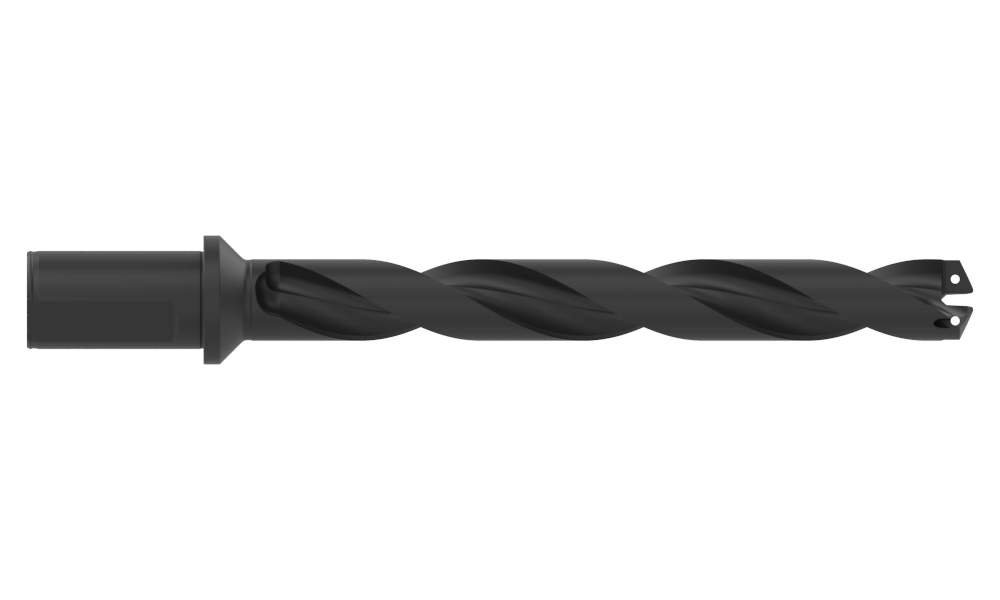

Front

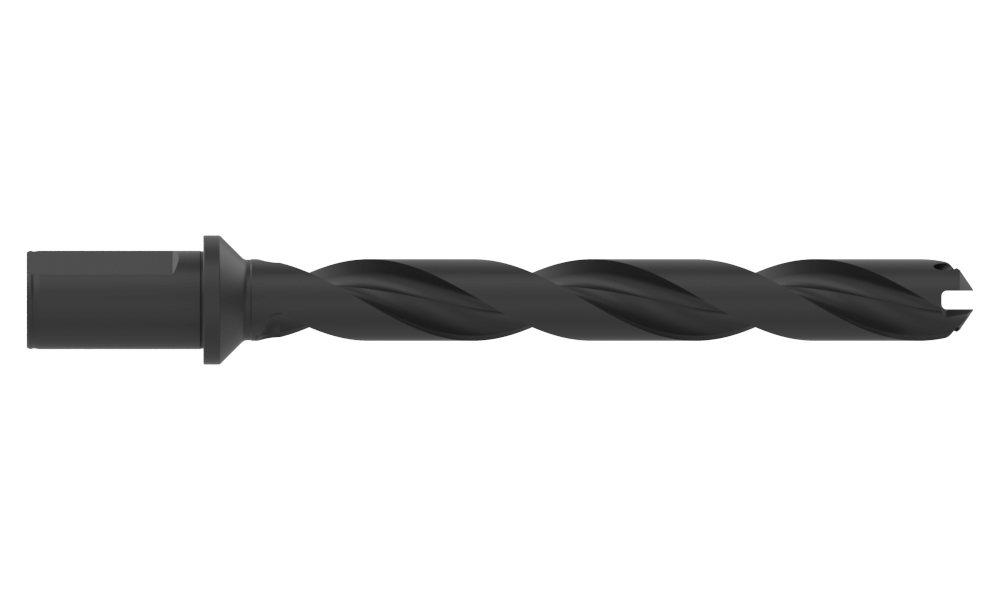

Top
Product Specifications
Series 32
Minimum diameter inch 1.2597
Maximum diameter inch 1.3781
Length Type 7xD
Flute Type Helical
Overall length inch 14.549
Tool Reference Length inch 11.861
Body length inch 11.721
Drill depth inch 9.888
Shank type Flanged
Shank diameter inch 1-1/2
Shank length inch 2.688
Pipe tap rear inch 1/4 NPT
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7495-IP15-1 (Qty0)
Replacement GEN3SYS® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-15 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-15
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 4.03
Weight in kg (each) 1.83
Category Stocked
