7000-MM-075
ALVAN® Replaceable Head Mandrel: 1.7957" - 1.9924" (45.61 mm - 50.906 mm), Radial Coolant, Modular Shank
ALVAN® Replaceable Head Mandrel

Add to cart image Add to list image







See Additional Technical Information
Default Image

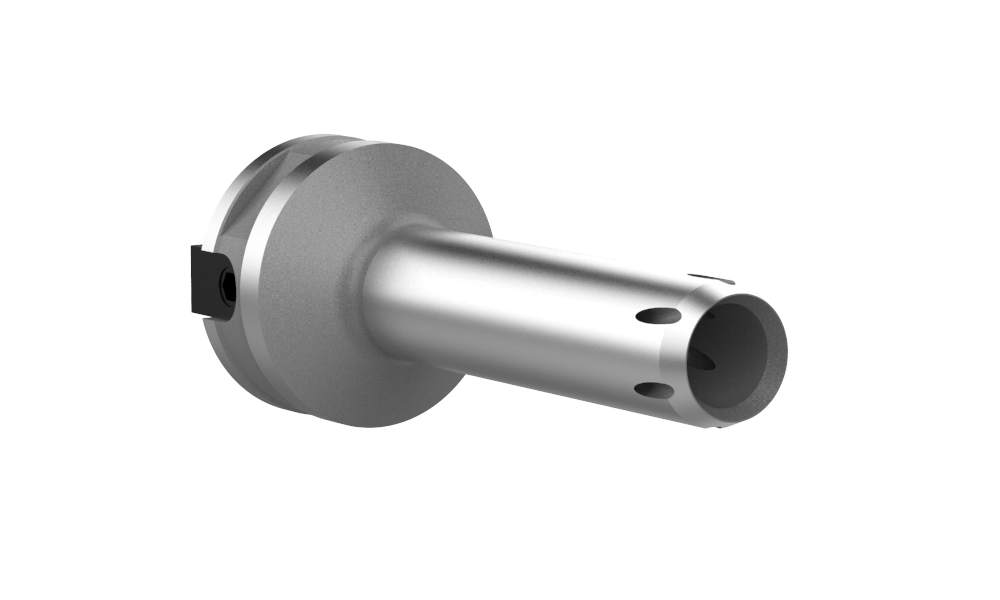

Angle

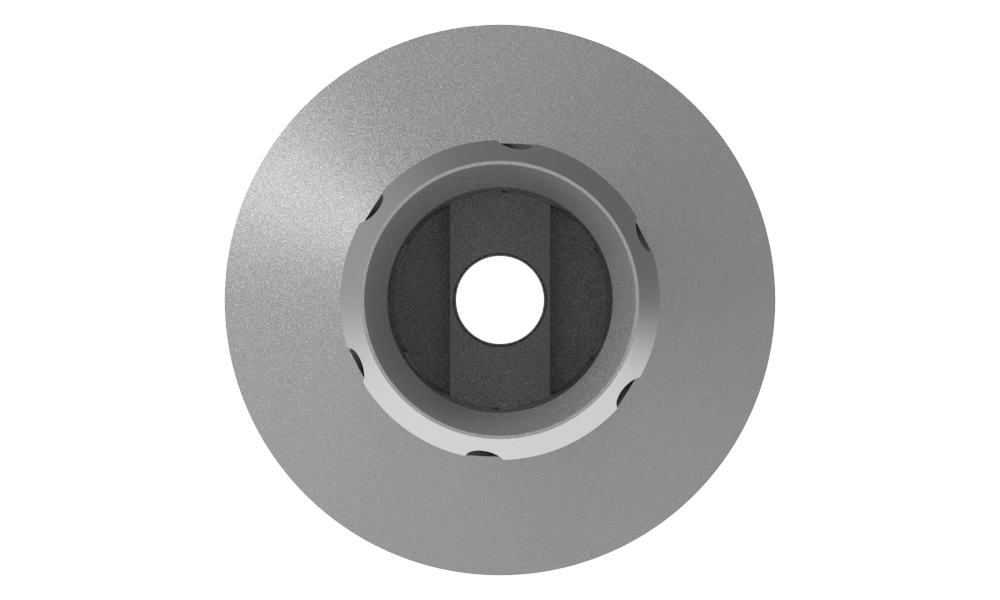

Front

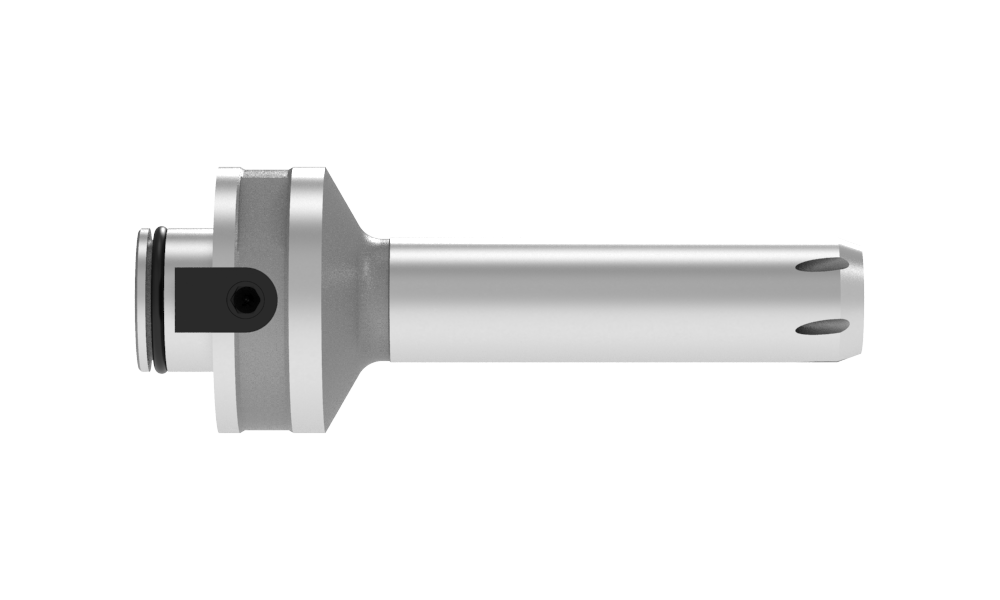

Top
Main
Product Specifications
Type of Product Modular Reamer Body
Series 7000
Minimum Diameter (inch) 1.7957
Minimum Diameter (mm) 45.61
Maximum Diameter (inch) 1.9924
Maximum Diameter (mm) 50.906
Gage Length (mm) 155
Length of Cut (mm) 120
Length Type Standard
Modular Shank Size (mm) 50
Shank Type Modular
Application Type Through Hole
Coolant (Yes/No) Radial Coolant
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 2.675
Weight in kg (each) 1.21
Category Stocked
