7001-MM-075
ALVAN® Replaceable Head Mandrel: 1.7957" - 1.9924" (45.61 mm - 50.906 mm), Central Coolant, Modular Shank

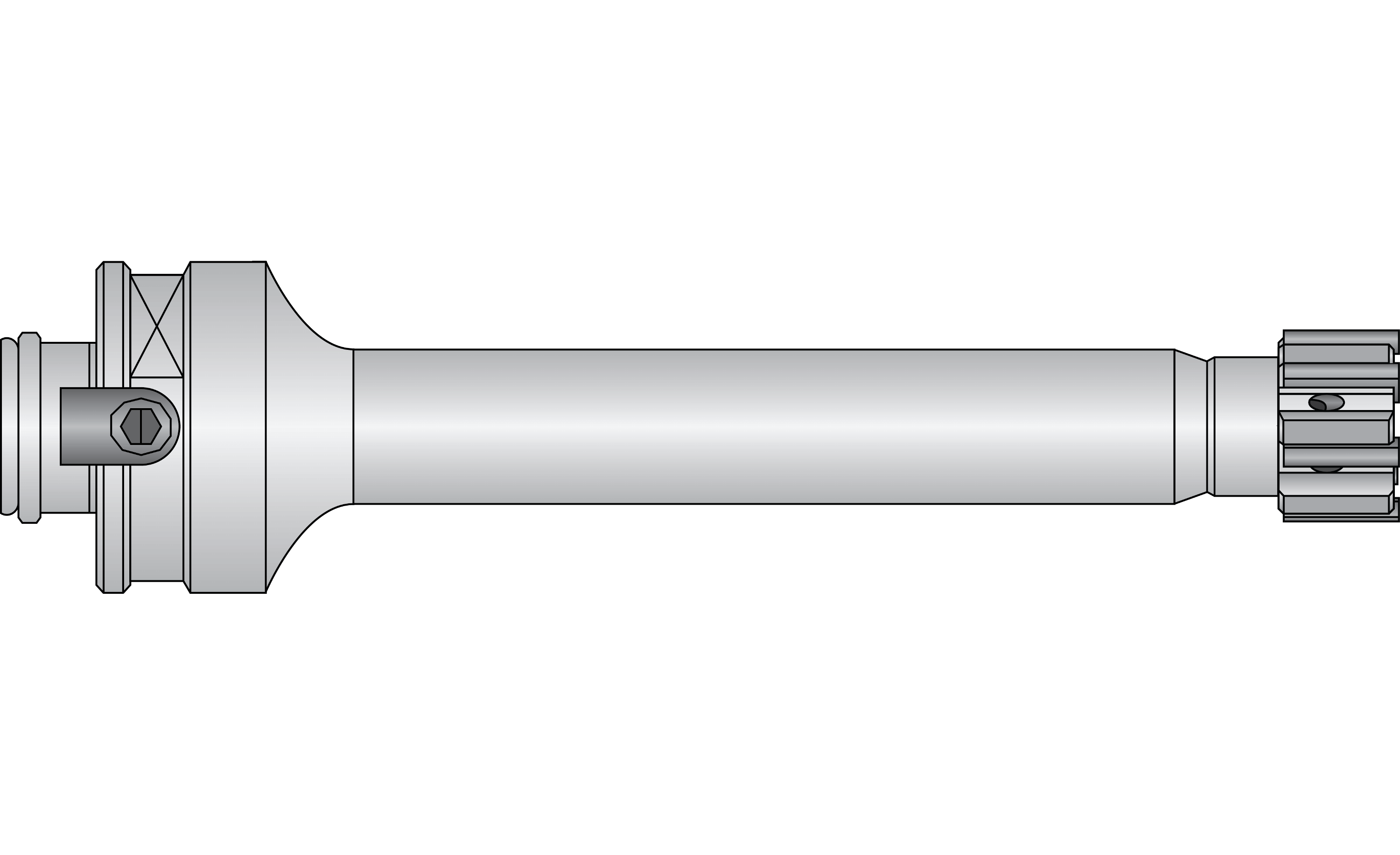

ALVAN® Replaceable Head Mandrel

Add to cart image Add to list image







See Additional Technical Information
Default Image
Angle
Front
Top
Main
Product Specifications
Type of Product Modular Reamer Body
Series 7001
Minimum diameter inch 1.7957
Minimum diameter mm 45.61
Maximum diameter inch 1.9924
Maximum diameter mm 50.906
Gage length mm 155
Length of cut mm 120
Length Type Standard
Modular shank size mm 50
Shank type Modular
Coolant Central Coolant
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 2.865
Weight in kg (each) 1.3
Category Stocked
