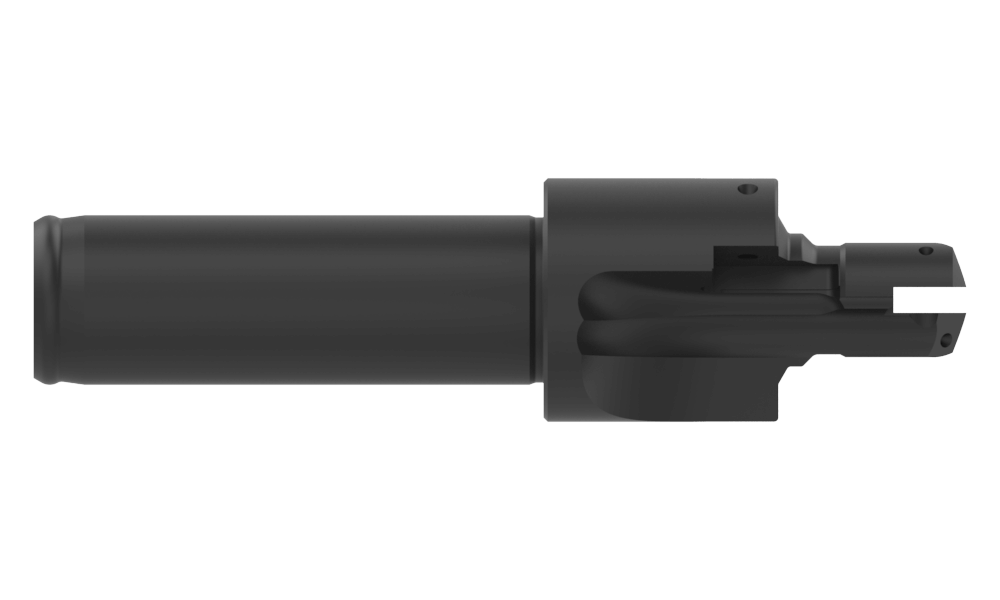

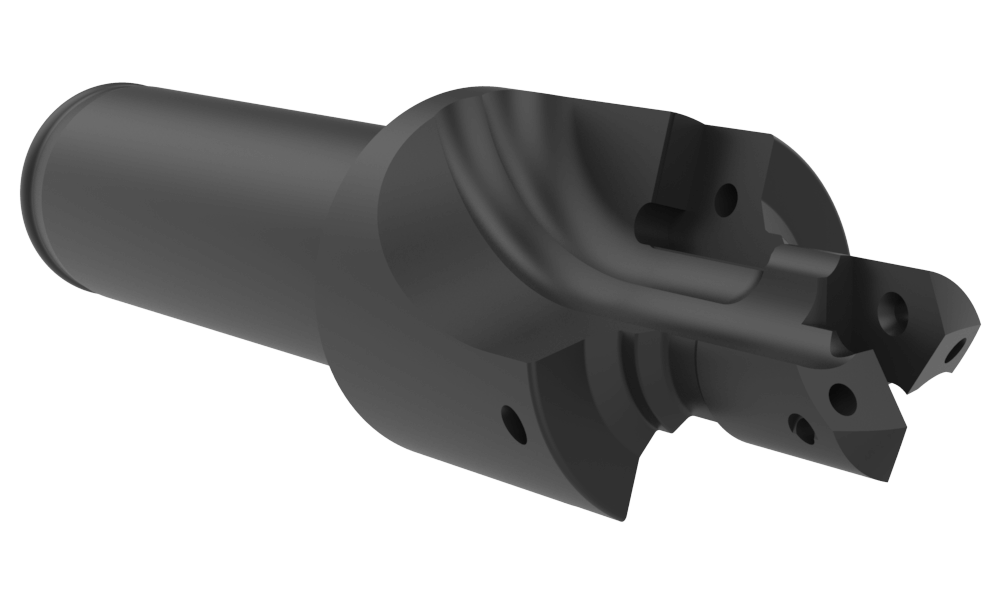

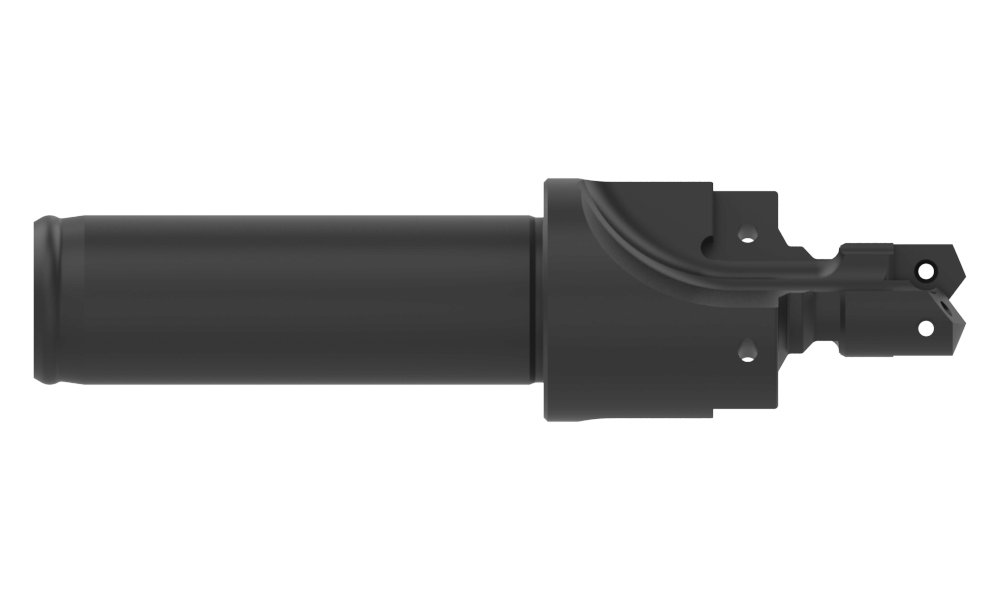

| Type of Product | Replaceable Port Form Body |
| Series | Z |
| Overall length inch | 3.51 |
| Overall length mm | 89.2 |
| Pipe tap rear inch | 1/16 |
| Shank diameter mm | 15.88 |
| Shank diameter inch | 0.625 |
| Shank length mm | 47.63 |
| Shank length inch | 1.875 |
| Shank type | Cylindrical |
| Pilot Diameter mm | 11.5 |
| Pilot Diameter inch | 0.453 |
| Pilot length mm | 16.79 |
| Pilot length inch | 0.661 |
| Tool Reference Length mm | 41.58 |
| Tool Reference Length inch | 1.637 |
| Port Standard | SAE AS5202 |
| Tube Size | -5 |
| Port thread size | 1/2-20 UNJF-3B |
| Spotface diameter mm | 23.27 |
| Spotface diameter inch | 0.916 |
| Seal angle | 60° |
| Seal angle diameter mm | 15.88 |
| Seal angle diameter inch | 0.625 |
| Seal Pilot Diameter inch | 0.517 |
| Seal Pilot Diameter mm | 13.13 |
| Seal Pilot Length inch | 0.083 |
| Seal Pilot Length mm | 2,11 |
| Spotface to shoulder length inch | 0.882 |
| Spotface to shoulder length mm | 22.39 |
| Minor Diameter Insert Carbide | 4C1ZH-11.5 |
| Minor Diameter Insert Super Cobalt | 45ZH-11.5 |
