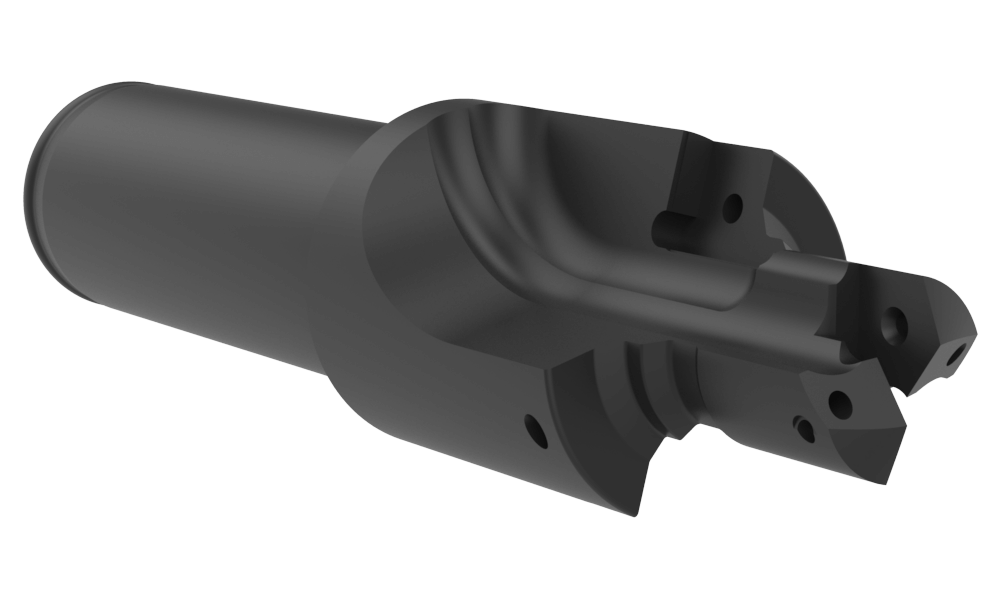

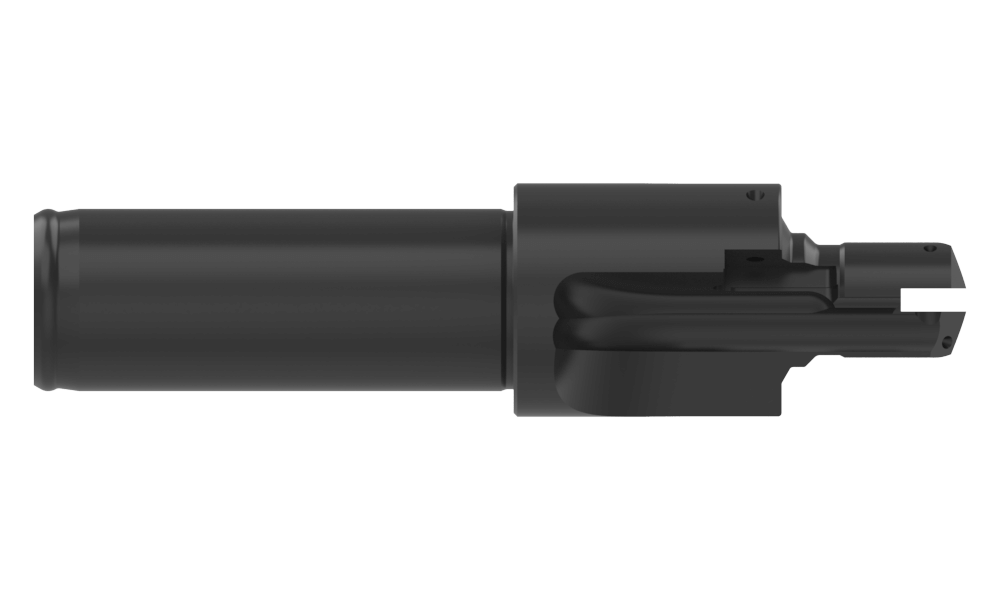

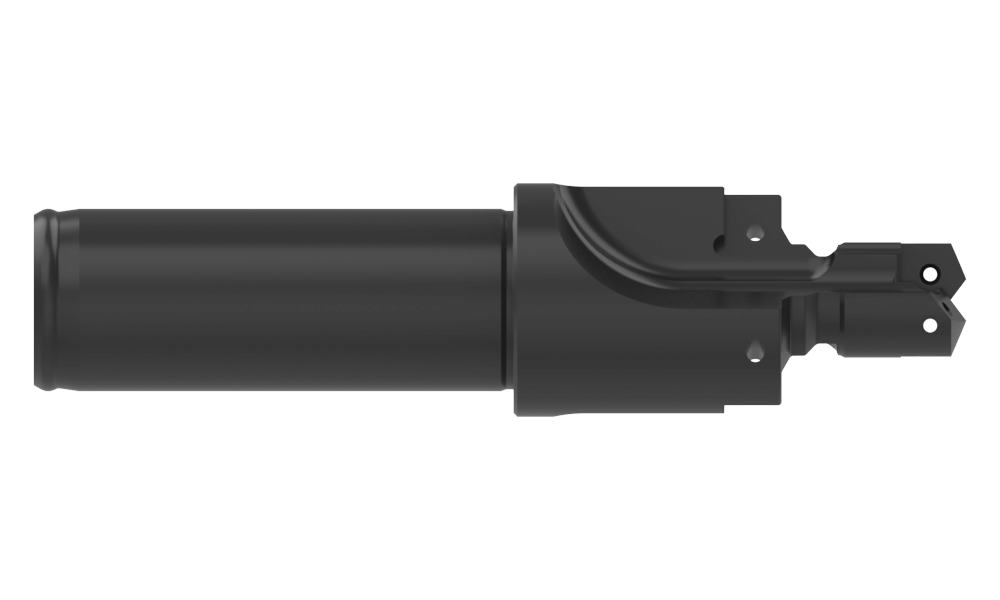

| Type of Product | Replaceable Port Form Body |
| Series | Z |
| Overall length inch | 3.91 |
| Overall length mm | 99.29 |
| Pipe tap rear inch | 1/8 |
| Shank diameter mm | 19.05 |
| Shank diameter inch | 0.75 |
| Shank length mm | 50.01 |
| Shank length inch | 1.969 |
| Shank type | Cylindrical |
| Pilot Diameter mm | 12.95 |
| Pilot Diameter inch | 0.51 |
| Pilot length mm | 18.14 |
| Pilot length inch | 0.714 |
| Tool Reference Length mm | 49.28 |
| Tool Reference Length inch | 1.94 |
| Port Standard | SAE AS5202 |
| Tube Size | -6 |
| Port thread size | 9/16-18 UNJF-3B |
| Spotface diameter mm | 24.87 |
| Spotface diameter inch | 0.979 |
| Seal angle | 60° |
| Seal angle diameter mm | 17.46 |
| Seal angle diameter inch | 0.688 |
| Seal Pilot Diameter inch | 0.58 |
| Seal Pilot Diameter mm | 14.73 |
| Seal Pilot Length inch | 0.083 |
| Seal Pilot Length mm | 2,11 |
| Spotface to shoulder length inch | 1.119 |
| Spotface to shoulder length mm | 28.43 |
| Minor Diameter Insert Carbide | 4C1ZH-.510 |
| Minor Diameter Insert Super Cobalt | 45ZH-.510 |
