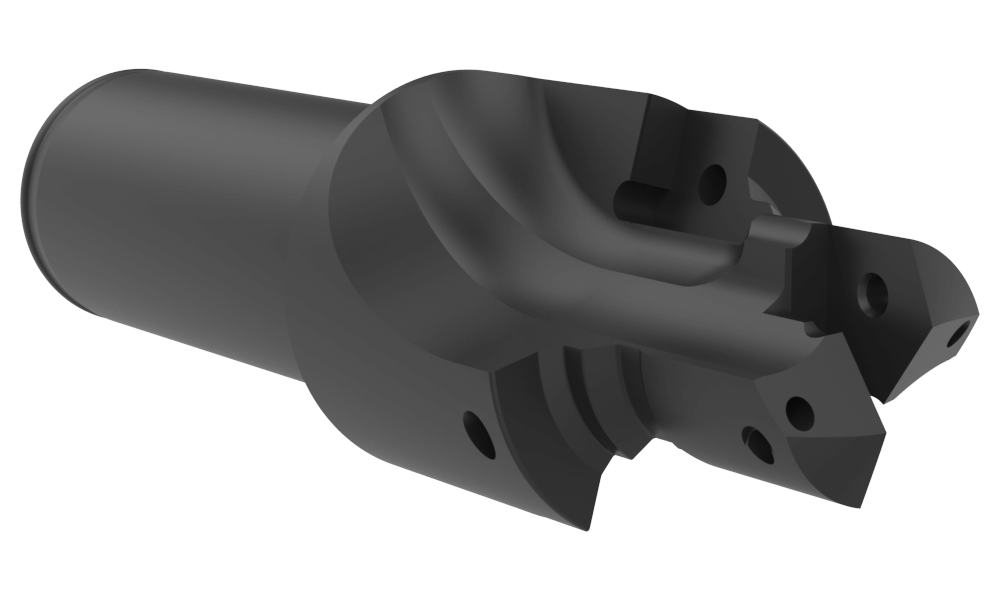

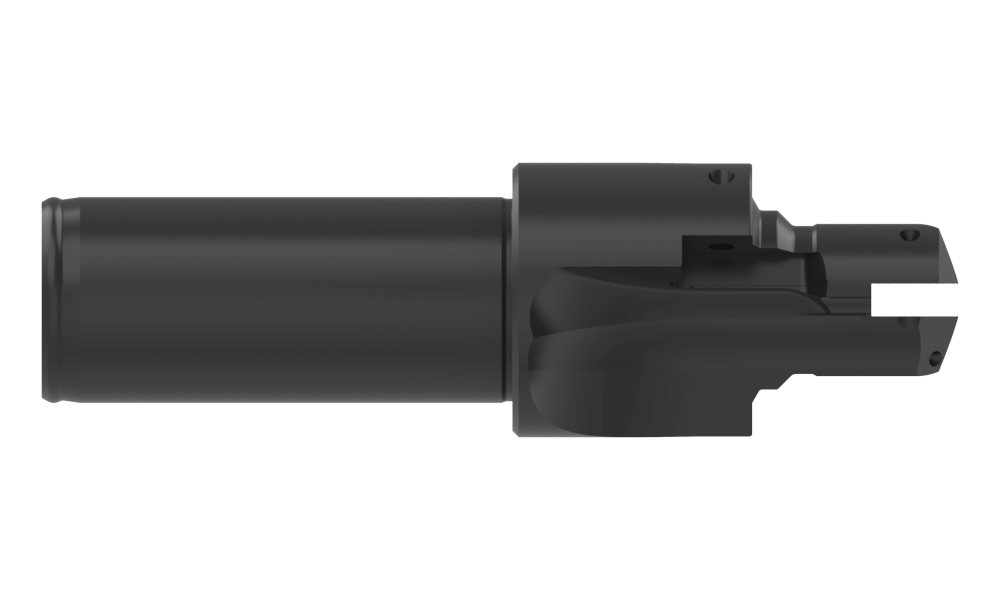

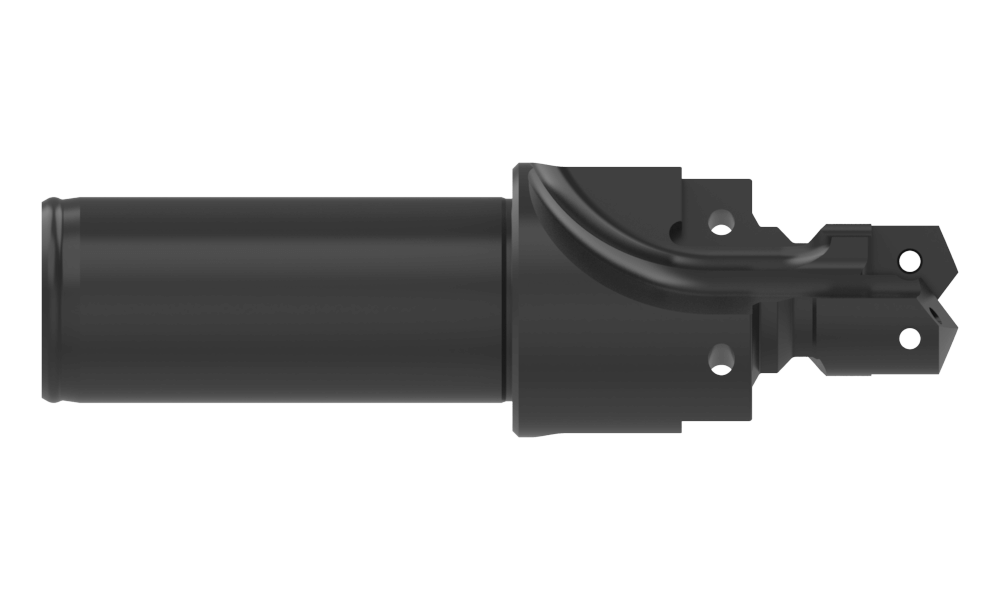

| Type of Product | Replaceable Port Form Body |
| Series | 1 |
| Overall length inch | 4.57 |
| Overall length mm | 116.1 |
| Pipe tap rear inch | 1/8 |
| Shank diameter mm | 25.4 |
| Shank diameter inch | 1 |
| Shank length mm | 57.94 |
| Shank length inch | 2.281 |
| Shank type | Cylindrical |
| Pilot Diameter mm | 20.5 |
| Pilot Diameter inch | 0.807 |
| Pilot length mm | 23.75 |
| Pilot length inch | 0.935 |
| Tool Reference Length mm | 58.17 |
| Tool Reference Length inch | 2.29 |
| Port Standard | SAE AS5202 |
| Tube Size | -10 |
| Port thread size | 7/8-14 UNJF-3B |
| Spotface diameter mm | 34.39 |
| Spotface diameter inch | 1.354 |
| Seal angle | 60° |
| Seal angle diameter mm | 25.46 |
| Seal angle diameter inch | 1.002 |
| Seal Pilot Diameter inch | 0.896 |
| Seal Pilot Diameter mm | 22.76 |
| Seal Pilot Length inch | 0.107 |
| Seal Pilot Length mm | 2,72 |
| Spotface to shoulder length inch | 1.189 |
| Spotface to shoulder length mm | 30.19 |
| Minor Diameter Insert Carbide | 4C11H-20.5 |
| Minor Diameter Insert Super Cobalt | 451H-20.5 |
